Installation Instructions
10X Line with VSL Indicator Trim

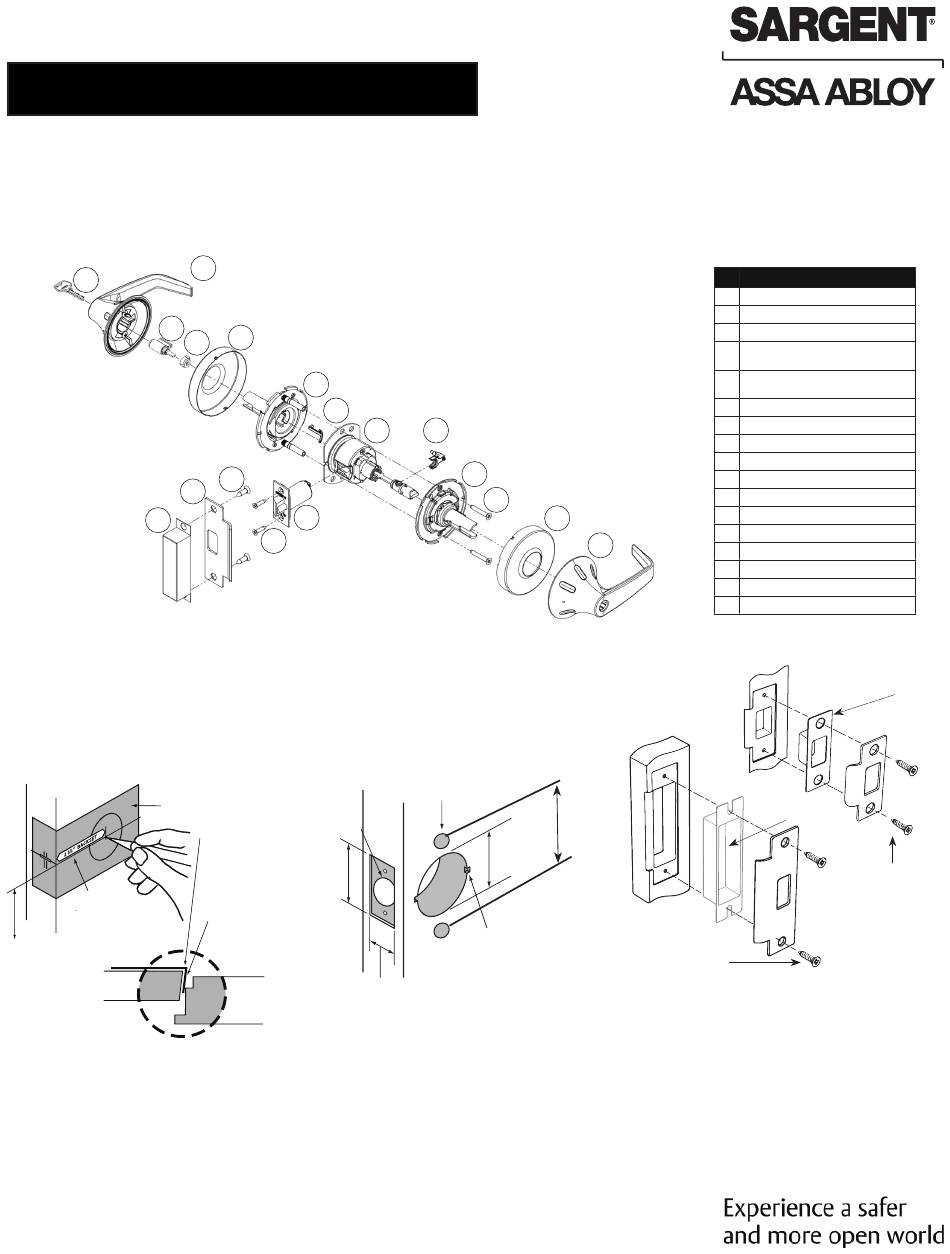

Product Components
(Entry function with indicator on both sides shown)
Tools required:
11/32" drill bit
5/32" drill bit
9
8
Outside
13
14
Door Preparation
1. Use template A8290 to mark the door (Figure 1).
2. Drill the door according to the template.
3. Verify the dimensions (Figure 2).
4. Install the strike (Figure 3)
Template
Backset must
match latch
Desired
height
above
DOOR
floor
Figure 1
IMPORTANT
•
The accuracy of door preparation is critical for proper functioning and security of this lever handle lock. Misalignment can
cause premature wear and a lessening of security.
•
Verify backset before marking and drilling door.
1-800-727-5477 • www.sargentlock.com
Copyright © 2024, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in
part without the express written permission of SARGENT Manufacturing Company is prohibited. Patent
pending and/or patent www.assaabloydss.com/patents.
1/8" drill bit
2
15
7
6
17
12
10
11
1" (25mm)
hole
2-1/4"
(57mm)
Door bevel
1-1/8"
(29mm)
FRAME
Figure 2
5/64" Allen wrench
5
16
3
4
15
Inside
11/32" (8.7mm) hole
2-1/8"
(54mm)
hole
5/32" (4mm)
A8393 07/24 Rev 2
Lever removal tool
Fig.
1
2
3
4
5
6
7
8
9
10
11
12
13
1
14
15
16
17
2-3/4"
(70
mm)
Attaching Screws
#12 -24 x 3/4"
Figure 3
#2 Phillips screwdriver
Description
Inside indicator lever assembly
Outside indicator lever assembly
Inside spring housing assembly
Screws- through-bolt (2) #10-32
x 1-1/4"
Lockbody assembly with mounting
plate
Outside spring housing assembly
Cylinder spacer
Cylinder
Key
Latch
Screws- latch (2) #8-32 x 3/4"
Screws-strike (2) #12-24 x 3/4"
Strike
Strike Box (Optional)
Rose/Scalp (2)
Button Arm
Shank Insert
Strike Box
Strike Box
Attaching Screws
#8 -32 x 3/4"
