Smappee
EV Wall
Home

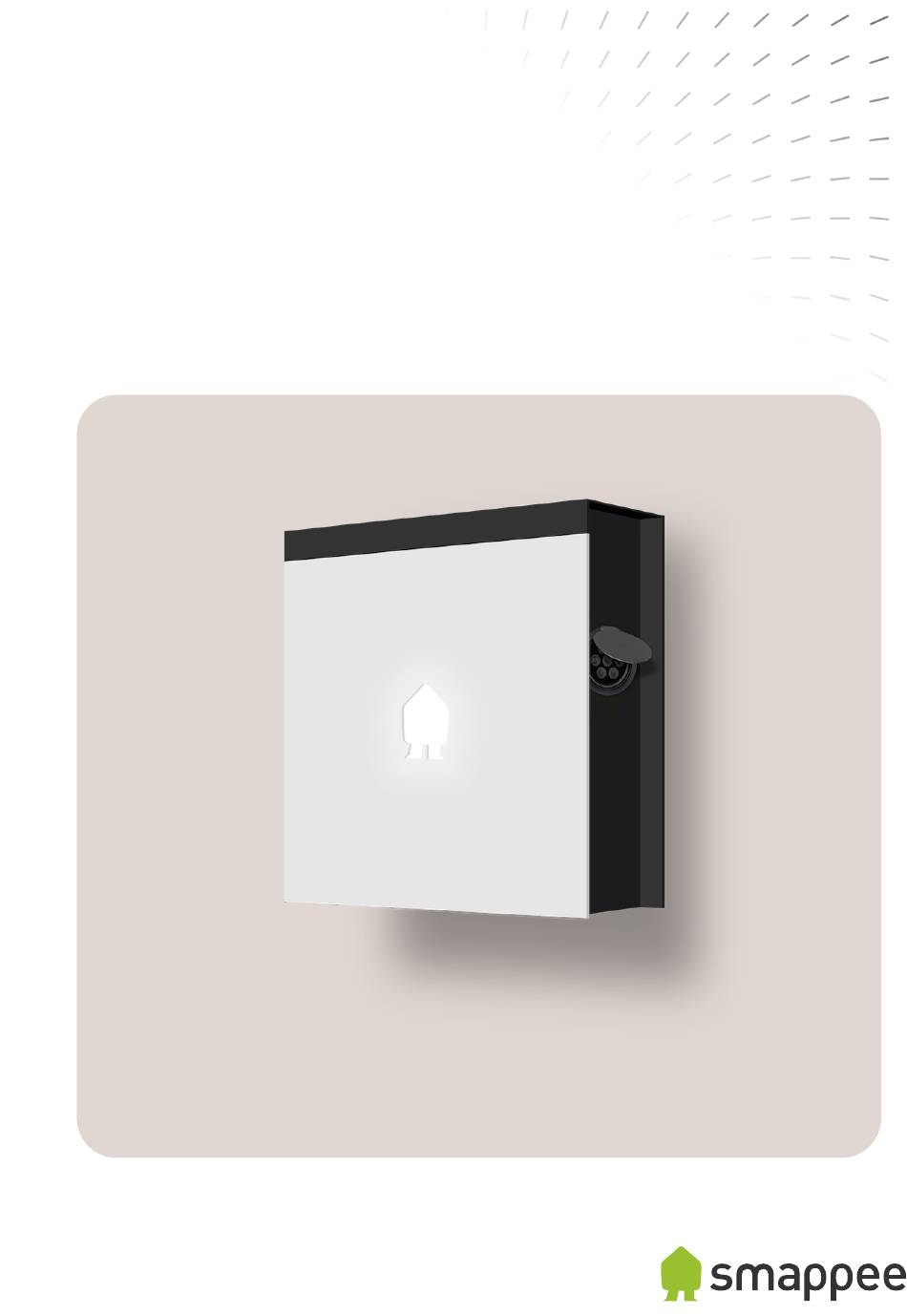

Installation manual
English – 3.01 – February 2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV Wall Home and is the answer not in the manual?

Questions and answers

Summary of Contents for Smappee EV Wall Home

  • Page 1 Smappee EV Wall Home Installation manual English – 3.01 – February 2025...
  • Page 2 The specifications and other information in this document were verified to be accurate and complete at the time of its publication. Due to ongoing product improvement, this information is subject to change at any time without prior notice. For the latest information, see our online documentation: smappee.com/downloads...
  • Page 3: Table Of Contents

    Table of contents Introduction............................4 Safety instructions ........................... 5 Overview of the EV Wall Home ....................... 7 Preparing the installation ....................... 17 Installation and activation ......................23 Annexes ..............................33 EV Wall Home – Installation manual – English...
  • Page 4: Introduction

    Thank you for purchasing this EV Wall charging station for electric vehicles, the smartest charging station. This installation manual tells you how to install the EV Wall Home. We recommend that you read the contents of this manual carefully, to ensure a safe and proper installation and enable to use all the advanced features of this product to the full.
  • Page 5: Safety Instructions

    Do not immerse the charging station in water or any other liquids. • • Do not expose the charging station to heat, flame or extreme cold. Do not attempt to open, repair, or service any parts. Contact Smappee or your service partner for • further information. •...
  • Page 6: Maintenance

    Only transport and store the charging station in its original packaging. No liability for damage incurred will be accepted if the charging station is transported in non-standard packaging. Store the charging station in a dry environment within the temperature range specified in the • technical specifications. EV Wall Home – Installation manual – English...
  • Page 7: Overview Of The Ev Wall Home

    EV Wall Home 1-Phase 7.4 kW Socket EVW-132-BSR-E-W 5425036932722 EV Wall Home 1-Phase 7.4 KW Socket with shutter EVW-132-C8R-E-W 5425036931992 EV Wall Home 1-Phase 7.4 kW Type 2 cable 8m with cable holder EVW-332-BR-E-W 5425036932036 EV Wall Home 3-Phase 22 kW Socket EVW-332-BSR-E-W 5425036932739...
  • Page 8 Image 1: Content of the box with the charger Quantity Description Smappee EV Wall Wall mounting plate Quick install guide Quick starter guide with Smart Charge Card and QR code label Accessory Box, refer to the following topics EV Wall Home – Installation manual – English...
  • Page 9 M20 cable gland for the communication cable Small screw (M4 x 6 mm) Smappee Splitter DIN mounting plate Connect Wall mounting plate Bus termination plug CT Hub CT 50A RJ10 cable 150 cm RJ10 cable 40 cm EV Wall Home – Installation manual – English...
  • Page 10 Small screw (M4 x 6 mm) Smappee Splitter DIN mounting plate Connect Wall mounting plate Bus termination plug CT Hub CT 50A RJ10 cable 150 cm RJ10 cable 40 cm Solid Core 3-Phase CT EV Wall Home – Installation manual – English...
  • Page 11 If the EV Wall has a socket, there is no charging cable box delivered. Quantity Description Charging cable Cable holder Screw and plug (Ø 6 mm x 50 mm) M32 cable gland Cable tie for strain relief EV Wall Home – Installation manual – English...
  • Page 12 3.4 Identification label of the EV Wall Position of the identification label of the EV Wall The identification label is on the bottom of the charging station. Image 5: Position of the identification label EV Wall Home – Installation manual – English...
  • Page 13 Image 6: Identification label Description Manufacturer Article number Electrical rating Operating temperature Manufacturing date QR code to scan during configuration of the charging station Ingress protection rating Serial number EAN-code Waste disposal symbol EV Wall Home – Installation manual – English...
  • Page 14: Technical Specifications

    30 mA residual current device Type A or B (according to local regulations). 2 Caution: not all vehicles support the IT system. For 3 x 230 V charging, a voltage transformer might be necessary. EV Wall Home – Installation manual – English...
  • Page 15 -25 °C to 40 °C Storage temperature -25 °C to 60 °C Relative humidity 0 % to 95 %, non-condensing Maximum installation altitude 0 – 2000 m Access Locations with restricted and non-restricted access EV Wall Home – Installation manual – English...
  • Page 16 Where products are exposed to the elements of nature, the enclosure can be subject to gradual aging of the material, which can result in product discolouration over time. Therefore, wherever possible, place the product in a sheltered place to optimise the life of the materials. EV Wall Home – Installation manual – English...
  • Page 17: Preparing The Installation

    4 Preparing the installation The first step is to prepare the physical installation of the EV Wall Home as described in this chapter. 4.1 Installation prerequisites Obtain all necessary permits from the relevant local authorities. • • Local regulations may be applicable and can vary depending upon the region or country.
  • Page 18 Network cable and RJ45 connectors, minimum Cat 5 depending on the environment, if using • wired internet connection Ferrules, when using stranded power supply cables or decreasing the length of the charging • cable EV Wall Home – Installation manual – English...
  • Page 19 Put the plate in a safe location where it cannot be scratched or damaged. Put the nuts on the threaded rods to avoid losing them. As a result, the EV Wall is prepared for the next steps. EV Wall Home – Installation manual – English...
  • Page 20 3. Drill three holes of 10 mm diameter through the slots to a depth of 50 mm. 4. Insert the supplied wall plugs into the holes. 5. Attach the mounting plate, with the 3 bulges facing the wall, with the supplied screws. EV Wall Home – Installation manual – English...
  • Page 21 Solar Add-on that has a CT Hub and two CT 50A. These components enable overload protection and solar optimisation for your charging station. There is almost no limit to the number of measurements to control your Smappee Infinity. For more information, refer to smappee.com...
  • Page 22 6. Install the wall mounting plate for the Smappee Connect next to the distribution panel. The LED of the Smappee Connect indicates the status of the system. For more information, refer to Status of the Smappee Connect (page Error! Bookmark not defined.).
  • Page 23: Installation And Activation

    CAUTION Adaptors or conversion adaptors and cord extension sets are not allowed to be used. This procedure describes the required steps for the physical installation of the EV Wall Home. Attach the EV Wall to the mounting plate (page 24) 2.
  • Page 24 Instructions Proceed as follows. Position the EV Wall in front of the mounting plate. 2. Attach the EV Wall to the mounting plate. Use the three M4 x 6 mm hex screws. EV Wall Home – Installation manual – English...
  • Page 25 NOTE For a 3 x 230 V with a transformer, the neutral wire comes from the transformer. The two RJ10 cables of the Power Box in the charging station must be disconnected. EV Wall Home – Installation manual – English...
  • Page 26 4. Make sure that the residual current device is set to the on position. The on position is shown in Image 9. As a result, the EV Wall is almost ready for power. EV Wall Home – Installation manual – English...
  • Page 27 This section is only relevant if the EV Wall comes with a fixed charging cable. If you have a socket-variant, go to Connect the EV Wall Home to Smappee Infinity (page 29). The charging cable is delivered in a separate box.
  • Page 28 This section is only relevant if the EV Wall comes with a fixed charging cable. If you have a socket-variant, go to Connect the EV Wall Home to Smappee Infinity (page 29). The charging cable can be stored in a cable holder to keep it tidy.
  • Page 29 Image 15: View on the A+B port The communication cable between the charging station and the Smappee Splitter makes the data from the charging station and the Smappee Infinity components can go via the Smappee Connect to the Smappee Cloud.
  • Page 30: Install The Front Plate

    Make sure no tools are in the charging station and people stand free from the charging station. Context The front plate has a PCB with RFID reader and LED for the Smappee Avatar. Image 16: View on the 12-pin cable Instructions Remove the nuts from the threaded rods of the front plate.
  • Page 31 5.7 Configure the EV Wall with the Smappee App Prerequisites This procedure is done with the Smappee App. You can download this mobile app from the Apple App Store for iOS or the Google Play store for Android phones. Image 17: Download the Smappee App CAUTION Risk of electric shock.
  • Page 32 Put the M4 nuts on the threaded rods and tighten them. Image 18: View on the inner nuts As a result, the EV Wall is ready for use. For more information, refer to the annex Status of the charging station (page 40). EV Wall Home – Installation manual – English...
  • Page 33: Annexes

    Annexes Declaration of conformity EV Wall Home – Installation manual – English...
  • Page 34: Connection Diagrams

    Current transformer that measures the phase to the charging station 1 x CT Current transformer that measures a single-phase solar production CT Hub Additional Smappee Infinity components can be installed for more submetering. Bus termination plug Closes the A-bus. EV Wall Home – Installation manual – English...
  • Page 35 1 x CT Current transformer that measures a single-phase solar production CT Hub Additional Smappee Infinity components can be installed for more submetering. Bus termination plug Closes the A-bus. EV Wall Home – Installation manual – English...
  • Page 36 1 x CT Current transformer that measures a single-phase solar production CT Hub Additional Smappee Infinity components can be installed for more submetering. Bus termination plug Closes the A-bus. EV Wall Home – Installation manual – English...
  • Page 37 1 x CT Current transformer that measures a single-phase solar production CT Hub Additional Smappee Infinity components can be installed for more submetering. Bus termination plug Closes the A-bus. EV Wall Home – Installation manual – English...
  • Page 38 Colour code explanation Status of the Smappee Connect This status is relevant during the configuration and use of the charging station. Image 23: Position of the LED on the Smappee Connect Colour Status Meaning More information Blue continuous Starting up The Connect is starting up.
  • Page 39 Solid Core 3-Phase CT is powered on and operating Short pulse every 3 seconds. correctly. LED at input A Communication error. One pulse every second. LED at input A Configuration problem. 2 pulses per second. EV Wall Home – Installation manual – English...
  • Page 40 This is informative, no action required. is waiting to charge or paused by an overload Green continuous EV is charged Disconnect the charging cable and put it safely back in the storage place. EV Wall Home – Installation manual – English...
  • Page 41: Maintenance Schedule

    Cleaning is optional and does not affect the operation of the charging station. For aesthetic reasons, you may wipe the unit with a dry, clean cloth. Do not use water jets, solvents, or abrasive materials. EV Wall Home – Installation manual – English...
