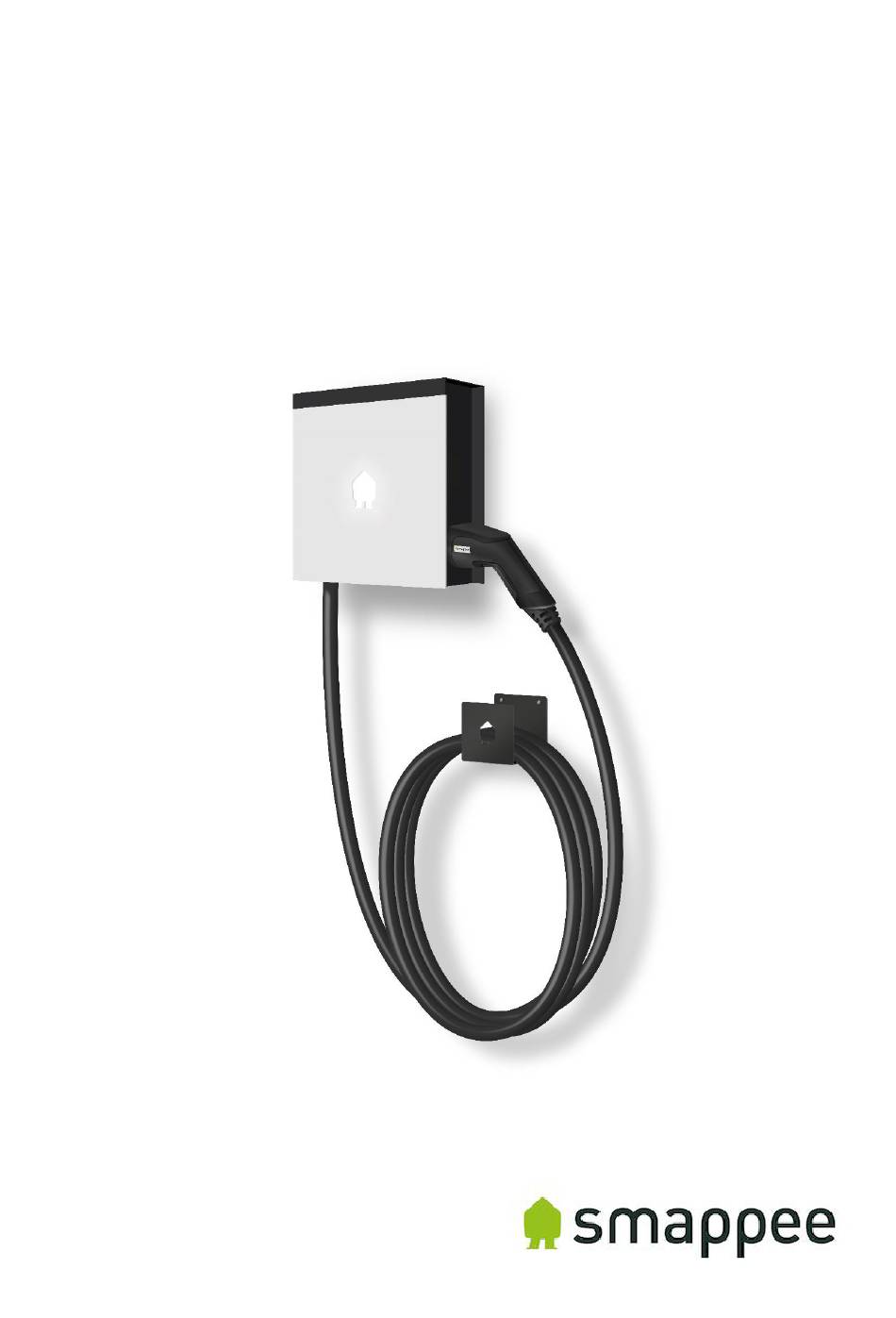

  • Page 1 Smappee EV Wall Installation manual English – Version 1.5 – January 2022...

  • Page 2: Table Of Contents

    4. Components ....................7 5. Technical specifications................. 10 6. Preparing the installation ................13 7. Installation and activation ................16 8. Using the EV Wall ..................32 9. Declaration of conformity ................36 Smappee EV Wall – Installation manual - English...

  • Page 3: Introduction

    This installation and user manual tells you how to install and use the Smappee EV Wall. We advise you to read the contents of this manual carefully, to ensure a safe and proper installation and enable you to use all the advanced features of this product to their full extent.

  • Page 4: Safety Instructions

    Safety warning Fully read and follow the safety instructions below before you install, service or use your Smappee EV Wall. The installer must ensure that the charging station is installed in accordance with the relevant national and local regulations. Carrying out activities on this charging station without the relevant knowledge and qualifications can lead to serious accidents and death.
  • Page 5 Only transport and store the charging station in its original packaging. No liability for damage incurred will be accepted if the charging station is transported in non-standard packaging. • Store the charging station in a dry environment within the temperature range specified in the technical specifications. Smappee EV Wall – Installation manual - English...

  • Page 6: Models

    5425036932524 EV Wall White 1-Phase 7.4 kW Socket (100A version) EVW-132-BSR-E-W 5425036932722 EV Wall White 1-Phase 7.4 kW Socket with shutter EVW-132-C8R-E-W 5425036931992 EV Wall White 1-Phase 7.4 kW Type 2 cable 8m with cable holder EVW-132-C8R-E-W- 5425036932548 EV Wall White 1-Phase 7.4 kW Type 2 cable 8m with...

  • Page 7: Components

    4. Components Components included Single phase Smappee EV Wall – Installation manual - English...
  • Page 8 Three phase Smappee EV Wall – Installation manual - English...
  • Page 9 2. 1 x cable tie for strain relief 3. 1 x EV cable holder + 2 x screws + 2 x plugs Identification label The identification label of your charging station is located on the left inside of the EV Wall.  ...

  • Page 10: Technical Specifications

    Single power supply, 3-phase, 32A: 1 x 40 A max 3P, car. B or C Interfaces & Connectivity Information status RGB LED Session activation Plug and charge, Scan QR code, Swipe RFID card, Smart EV schedules Smappee EV Wall – Installation manual - English...
  • Page 11 1 x 8 m Supply line connection Terminal block, flexible conductors up to 6 mm² or solid conductors up to 10 mm² Stationary / moveable Fixed installation External design Enclosed assembly Mounting method Wall Smappee EV Wall – Installation manual - English...
  • Page 12 Where products are exposed to the elements of nature, the enclosure can be subject to gradual aging of the material, which can result in product discolouration over time. Therefore, wherever possible, place the product in a sheltered place to optimise the life of the materials. Smappee EV Wall – Installation manual - English...

  • Page 13: Preparing The Installation

    Route the power supply cables to the position where the charging station will be installed together with an Ethernet cable for the internet connection (if applicable). • Make sure that there is at least 30 cm cable available at the location of the EV Wall to be able to connect it easily internally. •...
  • Page 14 3 x 32 A Route communication cable The EV Wall requires a communication cable between the EV Wall and the distribution panel where the CT measurements and Connect gateway are placed. To do this, two twisted pairs of a Cat 5 or Cat 6 networking cable are used.
  • Page 15 3 x M4 x 6 mm HEX screws Supplies (not included) CAT 5/6 cable and two RJ45 connectors for wired communication cable. Power supply cables Ferrules (6 mm²), for stranded power supply cables 32 A circuit breaker Smappee EV Wall – Installation manual - English...

  • Page 16: Installation And Activation

    Place the mounting plate in position a. Use the mounting plate to mark the position of the screws on the wall where the EV Wall is to be positioned. Make sure the mounting plate is positioned with the 2 insert holes on the bottom, as depicted below.
  • Page 17 Drill 3 holes of 10 mm diameter through the slots to a depth of 50 mm. Insert the supplied wall plugs into the holes. c. Attach the mounting plate to the wall with the supplied screws. Smappee EV Wall – Installation manual - English...
  • Page 18 Remove the front plate of the EV Wall and disconnect the communication cables. Safely put aside the front plate to avoid damaging the PCB-board attached to it. b. Attach the EV Wall housing to the mounting plate using the three supplied M4 x 6 mm HEX screws.
  • Page 19 If necessary, install a grounding point closer to the charging station. d. Connect each supply cable to the terminal block. If you have a single-phase power supply, only the L1 and N will need to be connected. Smappee EV Wall – Installation manual - English...
  • Page 20 EV charging cable mounting (only fixed cable version) This section is only relevant if the EV Wall comes with a fixed cable. If you have a socket version, please continue to the next section. a. Mount the fixed charging cable through the left M32 cable gland and mount the power supply wires to the terminal block.
  • Page 21 Mount the separate cable holder on the wall nearby the EV Wall. As the cable socket is situated on the righthand side of the EV Wall, we advise to mount the cable holder on the same side. The length of the fixed cable can be shortened if required. Cut the cable to its required length and add ferrules (not supplied).
  • Page 22 & solar optimization supplied with the EV Wall. The EV Wall package comes with the required Smappee Infinity components to be installed in the distribution panel to measure the main feeder (total grid consumption) and single-phase solar production.
  • Page 23 Connection diagram EV Wall – 1-phase (1P+N) If you have purchased a three-phase version of the EV Wall, it is possible to connect it to a single-phase installation. In this case, you must still respect the stickers and connect it as shown in the three-phase diagram on the next page, but without L2 and L3.
  • Page 24 Connection diagram EV Wall – 3-phase (3P+N) Smappee EV Wall – Installation manual - English...
  • Page 25 Belgium, Norway and France. If this is not applicable, you can skip this section. When an EV Wall is installed in a residential installation with a 3P (3 x 230 V) Delta grid connection, some additional requirements need to be taken into account. You can verify whether you have this topology by checking the grid connection to see if the following are true: •...
  • Page 26 L2 cable going to the charging cable or to the socket. Do not disconnect the L2 of the power supply cable! If you install an EV Wall on a 3 x 230 V delta grid connection without transformer, the Infinity components in the distribution cabinet should be connected as shown below:...
  • Page 27 When a transformer is used in combination with a 3 x 230 V delta topology, the purchase of an additional Smappee Power box is required. This will be placed inside the distribution panel. In this case, the Power Box inside the EV Wall becomes redundant and both RJ10 cables should be disconnected.
  • Page 28 Closure Make sure that the RCD switch is set to the ‘On’ position before closing the EV Wall a. Mount the front plate into position by connecting the RJ10 cables and Cat 5/6 cable to the PCB attached to the front plate. Pay attention to stickers and connect each cable to the corresponding input.
  • Page 29 Mount and tighten the supplied M4 nuts Do not overtighten the M4 bolts on the front plate. Smappee EV Wall – Installation manual - English...
  • Page 30 All communication cables must be attached to the front panel before powering the EV Wall. a. Check all connections are secure and power-up the EV Wall. b. Check the status LEDs: o Charging controller: green flashing light (1 x per 3 seconds)
  • Page 31 This procedure is done with the Smappee Energy Monitor mobile app. You can download this from the Apple App Store for iOS or the Google Play store for Android phones. The Smappee App will guide you through the various steps to fill in all the required information. •...

  • Page 32: Using The Ev Wall

    1. Plug and charge: Simply connect your cable and start charging. 2. Swipe and charge: Connect the cable, swipe your card and start charging. 3. Scan and charge: Connect the cable, scan the QR code in the Smappee app and start charging.
  • Page 33 Swipe and charge Charging sessions can be started using an RFID card. You can either use a Smappee Smart Charge Card for free charging or (if activated) a third party eMSP card to pay for charging sessions. • Whitelist: Once the charging cable is plugged-in, the user simply presents their RFID card / token and the charging session begins.
  • Page 34 Scan and charge The user pays by credit card (Visa or Mastercard) using the Smappee app. They scan the QR code shown on the charging station and the app will guide them through the process of starting the charging session. It is also possible to set discount rates for specific users. Please contact info@smappeeservices.com...
  • Page 35 The Smappee EV Wall is Check the manual or contact unavailable. your supplier for more info and further steps. Red flashing Your charge card is not Contact your charge card authorised. supplier. Smappee EV Wall – Installation manual - English...

  • Page 36: Declaration Of Conformity

    Metering Function : IEC 61010-1 Ed 3.0 (2010-06) + A1:2016 AC Charging equipment : IEC 61851-1 (2017) / EN61558-1 * Other applicable standards and certifications: IEC 60364, IEC 62192-1, IEC 62192-2 Authorized signatory Stefan Grosjean Smappee EV Wall – Installation manual - English...
