Smappee EV One Home Installation Manual

Hide thumbs Also See for EV One Home:
Table of Contents

Advertisement

Quick Links

Download this manual
Smappee
EV One
Home
Installation manual
English – 3.01 – February 2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV One Home and is the answer not in the manual?

Questions and answers

Related Manuals for Smappee EV One Home

Summary of Contents for Smappee EV One Home

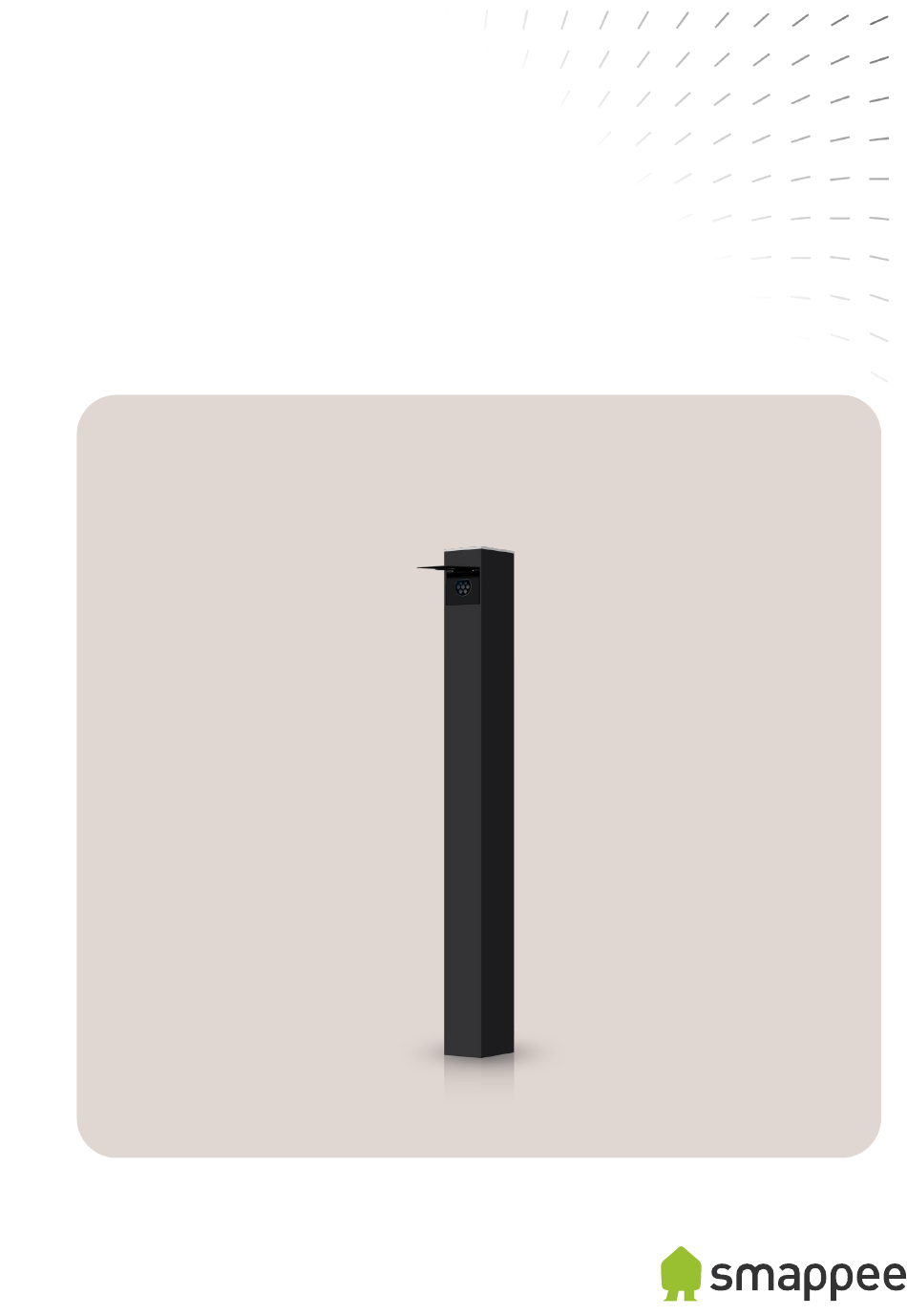

  • Page 1 Smappee EV One Home Installation manual English – 3.01 – February 2025...
  • Page 2 The specifications and other information in this document were verified to be accurate and complete at the time of its publication. Due to ongoing product improvement, this information is subject to change at any time without prior notice. For the latest information, see our online documentation: smappee.com/downloads...

  • Page 3: Table Of Contents

    Table of contents Introduction............................4 Safety instructions ........................... 5 Overview of the EV One Home ....................... 7 Preparing the installation ....................... 15 Installation and activation ......................24 Annexes ..............................35 EV One Home – Installation manual – English...

  • Page 4: Introduction

    Thank you for purchasing this EV One charging station for electric vehicles, the smartest charging station. This installation manual tells you how to install the EV One Home. We recommend that you read the contents of this manual carefully, to ensure a safe and proper installation and enable to use all the advanced features of this product to the full.

  • Page 5: Safety Instructions

    Do not immerse the charging station in water or any other liquids. • Do not expose the charging station to heat, flame or extreme cold. Do not attempt to open, repair, or service any parts. Contact Smappee or your service partner for • further information.

  • Page 6: Maintenance

    • incurred will be accepted if the charging station is transported in non-standard packaging. Store the charging station in a dry environment within the temperature range specified in the • technical specifications. EV One Home – Installation manual – English...

  • Page 7: Overview Of The Ev One Home

    Article no. Description EVO-332-B-E-B 5425036934054 EV One Home 3-Phase 22 kW Accessories (not included) Article no. Description FLOOR-PLATE-TUBE120 5425036934719 Floor plate for EV One or Pay Station 120 mm x 120 mm EV One Home – Installation manual – English...
  • Page 8 3.2 What’s in the box In the EV One box is an Accessory Box, that has different items related to the measurement in the distribution panel and communication of the data with the Smappee Cloud. EV One box Image 1: Content of the box with the charger...
  • Page 9 Image 2: Content of the box with the accessories Quantity Description Smappee Splitter DIN mounting plate Smappee Connect Wall mounting plate Bus termination plug CT Hub Solid Core 3-Phase CT CT 50A RJ10 cable 150 cm RJ10 cable 40 cm EV One Home – Installation manual – English...
  • Page 10 3.4 Identification label of the EV One Position of the identification label of the EV One The identification label of your charging station is located on the rear of the door. Image 4: Position of the identification label EV One Home – Installation manual – English...
  • Page 11 Identification label of the EV One Image 5: Identification label Description Manufacturer Article number Rating Operating temperature Manufacturing date QR code to scan during configuration of the charging station Ingress protection rating Waste disposal symbol Serial number EV One Home – Installation manual – English...

  • Page 12: Technical Specifications

    Rated conditional short-circuit 6 kA current (I EMC classification Class B 1 Caution: not all electric vehicles support the IT system. For 3 x 230 V charging, a voltage transformer might be necessary. EV One Home – Installation manual – English...
  • Page 13 This stabilises the internal temperature and makes it less likely that a charging session will be unexpectedly paused. EV One Home – Installation manual – English...
  • Page 14 Where products are exposed to the elements of nature, the enclosure can be subject to gradual aging of the material, which can result in product discolouration over time. Therefore, wherever possible, place the product in a sheltered place to optimise the life of the materials. EV One Home – Installation manual – English...

  • Page 15: Preparing The Installation

    4 Preparing the installation The first step is to prepare the physical installation of the EV One Home as described in this chapter. 4.1 Installation prerequisites Obtain all necessary permits from the relevant local authorities. • Local regulations may be applicable and can vary depending upon the region or country.
  • Page 16 Wi-Fi extender if the signal is weak or absent • Network cable and RJ45 connectors, minimum Cat 5 depending on the environment, if using • wired internet connection Ferrules, when using stranded power supply cables • EV One Home – Installation manual – English...
  • Page 17 Image 7: Example of a solid foundation (C), with cables (D) in a flexible conduit system (E) 3 . Fill foundation hole with concrete. Wait for the concrete to cure before going to the next steps. EV One Home – Installation manual – English...
  • Page 18 Make sure to keep the screws for later closure of the EV One. Image 8: Front view on the EV One 3 . Slide the outer housing upwards, of the internal structure. EV One Home – Installation manual – English...
  • Page 19 5 . Remove the top part of the EV One and set it aside in a safe location. No wires need to be disconnected, nor components removed. As a result, the EV One is prepared for the next steps. EV One Home – Installation manual – English...
  • Page 20 8 . Attach the two components (2) to the left and right of the inner structure (3). There is no specified left or right component. As a result, the anchor is ready for installation. EV One Home – Installation manual – English...
  • Page 21 Use two magnetic spirit levels to easily adjust the angle of the anchor. • Use concrete with very fast hardening to keep the angle of the anchor. Wait for the concrete to cure before going to the next steps. EV One Home – Installation manual – English...
  • Page 22 Solar Add-on that has a CT Hub and two CT 50A. These components enable overload protection and solar optimisation for your charging station. There is almost no limit to the number of measurements to control your Smappee Infinity. For more information, refer to smappee.com...
  • Page 23 5 . Install the DIN mounting plate for the Smappee Splitter. 6 . Install the wall mounting plate for the Smappee Connect next to the distribution panel. The LED of the Smappee Connect indicates the status of the system. For more information, refer to Status of the Smappee Connect (page 40).

  • Page 24: Installation And Activation

    5 Installation and activation This procedure describes the required steps for the physical installation of the EV One Home. CAUTION The installation must be carried out by a qualified professional who has read this manual and works in compliance with local and national standards. Neglecting this may lead to severe injuries or hazardous situations while working with electricity.
  • Page 25 Install the anchor of the EV One (page 21) Instructions Attach the top part to the bottom part. Make sure to use the fasteners. Image 15: Rear view on the EV One EV One Home – Installation manual – English...
  • Page 26 Route the power supply cable and the communication cable through the central opening of the floorplate. Context Image 16: View on the quick install guide EV One Home – Installation manual – English...
  • Page 27 The nuts are supplied with the EV One, refer to What’s in the box (page 8). Tighten the nuts to 5 Nm with an 8 mm socket. As a result, the structure is locked to the floorplate. EV One Home – Installation manual – English...
  • Page 28 NOTE For a 3 x 230 V with a transformer, the neutral wire comes from the transformer. The two RJ10 cables of the Power Box in the charging station must be disconnected. EV One Home – Installation manual – English...
  • Page 29 4 . Make sure that the residual current device is set to the on position. The on position is shown in Image 18. As a result, the EV One is almost ready for power. EV One Home – Installation manual – English...
  • Page 30 Image 20: View on the A+B port The communication cable between the charging station and the Smappee Splitter makes the data from the charging station and the Smappee Infinity components can go via the Smappee Connect to the Smappee Cloud.
  • Page 31 Status LED is pulsing once every 3 seconds. 1 x CT Hub 1 x Solid Core 3-Phase CT For more information, refer to the annex Colour code explanation (page 40). 7. Stop the power supply to the EV One. EV One Home – Installation manual – English...
  • Page 32 5.4 Configure the EV One with the Smappee App Prerequisites This procedure is done with the Smappee App. You can download this mobile app from the Apple App Store for iOS or the Google Play store for Android phones. Image 21: Download the Smappee App CAUTION Risk of electric shock.
  • Page 33 If the EV will not charge on a 3 x 230 V without tranformator, you can try to disconnect the L2 cable going to the socket. Do not disconnect the L2 of the power supply cable. Post-requisites The settings of your charging station can be adjusted in the Smappee App or the Smappee Dashboard. Name •...
  • Page 34 3 . Attach the door to protect the socket with the provided screws. Place the door in a horizontal position for easiest access to mount the screws. Verify the door can move without friction. Image 23: View on the door screws EV One Home – Installation manual – English...

  • Page 35: Annexes

    Annexes Declaration of conformity EV One Home – Installation manual – English...

  • Page 36: Connection Diagrams

    Current transformer that measures the phase to the charging station 1 x CT Current transformer that measures a single-phase solar production CT Hub Additional Smappee Infinity components can be installed for more submetering. Bus termination plug Closes the A-bus. EV One Home – Installation manual – English...
  • Page 37 1 x CT Current transformer that measures a single-phase solar production CT Hub Additional Smappee Infinity components can be installed for more submetering. Bus termination plug Closes the A-bus. EV One Home – Installation manual – English...
  • Page 38 1 x CT Current transformer that measures a single-phase solar production CT Hub Additional Smappee Infinity components can be installed for more submetering. Bus termination plug Closes the A-bus. EV One Home – Installation manual – English...
  • Page 39 1 x CT Current transformer that measures a single-phase solar production CT Hub Additional Smappee Infinity components can be installed for more submetering. Bus termination plug Closes the A-bus. EV One Home – Installation manual – English...
  • Page 40 Colour code explanation Status of the Smappee Connect This status is relevant during the configuration and use of the charging station. Image 28: Position of the LED on the Smappee Connect Colour Status Meaning More information Blue continuous Starting up The Connect is starting up.
  • Page 41 Solid Core 3-Phase CT is powered on and operating Short pulse every 3 seconds. correctly. LED at input A Communication error. One pulse every second. LED at input A Configuration problem. 2 pulses per second. EV One Home – Installation manual – English...
  • Page 42 Status of the charging station This status is relevant during the use of the charging station. Image 29: Position of the RFID reader with LED on the EV One EV One Home – Installation manual – English...
  • Page 43 This is informative, no action required. is waiting to charge or paused by an overload Green continuous EV is charged Disconnect the charging cable and put it safely back in the storage place. EV One Home – Installation manual – English...

  • Page 44: Maintenance Schedule

    Cleaning is optional and does not affect the operation of the charging station. For aesthetic reasons, you may wipe the unit with a dry, clean cloth. Do not use water jets, solvents, or abrasive materials. EV One Home – Installation manual – English...
