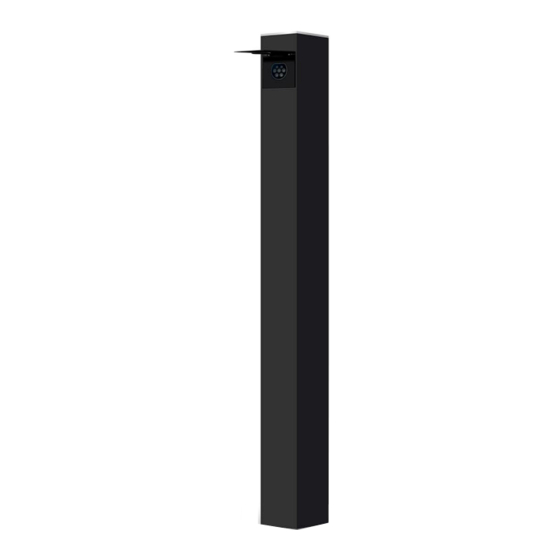

- Page 1 Smappee EV One HOME Installation manual English – Version 1.0 – June 2023...
- Page 2 The specifications and other information in this document were verified to be accurate and complete at the time of its publication. Due to ongoing product improvement, this information is subject to change at any time without prior notice. For the latest information, see our online documentation: https://www.smappee.com/downloads...
-
Page 3: Table Of Contents
4. Components ....................8 5. Technical specifications................. 10 6. Preparing the installation ................13 7. Installation and activation ................16 8. Using the EV One Home ................30 Declaration of conformity ................... 34 Smappee EV One Home – Installation manual - English... -
Page 4: Introduction
This installation and user manual tells you how to install and use the Smappee EV One Home. We advise you to read the contents of this manual carefully, to ensure a safe and proper installation and enable you to use all the advanced features of this product to their full extent. -
Page 5: Safety Instructions
Safety warning Fully read and follow the safety instructions below before you install, service or use your Smappee EV One Home. The installer must ensure that the charging station is installed in accordance with the relevant national and local regulations. - Page 6 • Store the charging station in a dry environment within the temperature range specified in the technical specifications. Smappee EV One Home – Installation manual - English...
-
Page 7: Models
3. Models Article no. Description EVO-332-B-E-B 5425036934054 EV One Home 3-Phase 22 kW Smappee EV One Home – Installation manual - English... -
Page 8: Components
4. Components Components included Smappee EV One Home – Installation manual - English... - Page 9 1. Manufacturer 2. Article number 3. Rating 4. Manufacturing date 5. QR code containing article number and serial number 6. Serial number 7. Degree of protection Smappee EV One Home – Installation manual - English...
-
Page 10: Technical Specifications
Communication protocol OCPP 1.6 JSON, ready for update to OCPP 2.0 Caution: not all vehicles support the IT system. In that case, or with 3-phase charging a voltage transformer may be required. Smappee EV One Home – Installation manual - English... - Page 11 Supply line connection Terminal block, flexible conductors up to 6 mm² or solid conductors up to 10 mm² Stationary / moveable Fixed installation External design Enclosed assembly Mounting method Floor / Ground-mounted Smappee EV One Home – Installation manual - English...
- Page 12 Where products are exposed to the elements of nature, the enclosure can be subject to gradual aging of the material, which can result in product discolouration over time. Therefore, wherever possible, place the product in a sheltered place to optimise the life of the materials. Smappee EV One Home – Installation manual - English...
-
Page 13: Preparing The Installation
Ethernet cable for the internet connection (if applicable). • Make sure that there is at least 100 cm cable available at the location of the EV One Home to be able to connect it easily internally. •... - Page 14 Route communication cable The EV One Home requires a communication cable between the EV One Home and the distribution panel where the CT measurements and Connect gateway are placed. To do this, four twisted pairs of a Cat 5 or Cat 6 networking cable are used. The Cat 5/6 cable should be connected on the RJ-45 port of the relay board of the EV One Home with the ‘A+B’...
- Page 15 RJ45 crimping tool Supplies (not included) CAT 5/6 cable and two RJ45 connectors for wired communication cable. Power supply cables Ferrules (6 mm²), for stranded power supply cables 32 A circuit breaker Smappee EV One Home – Installation manual - English...
-
Page 16: Installation And Activation
The Smappee EV One is designed to be installed at ground level using the supplied anchor. Foresee a power supply & Ethernet cable between the EV One Home and the distribution panel. Make sure the power supply and Ethernet cable can be positioned through the inner structure of the EV One. - Page 17 First, mount the anchor component with the lip. This one needs to be mounted on the open side of the inner structure. • The two other components are mounted on the left and right sides of the inner structure. Smappee EV One Home – Installation manual - English...
- Page 18 Verify that the bottom of the EV One is flush with the ground level. The lip on the anchor can be used as a reference. The top of the lip should be level or slightly below ground level. e. Fill the hole with concrete and let it cure. Smappee EV One Home – Installation manual - English...
- Page 19 The PE is connected directly to the terminal block just next to the RCD. If you have a single-phase power supply, only the L1, N and PE need to be connected. Smappee EV One Home – Installation manual - English...
- Page 20 Communication cable Connect the UTP Communication cable to the RJ-45 port on the relay board labelled with ‘A+B’. Smappee EV One Home – Installation manual - English...
- Page 21 Install the CTs as indicated on the diagrams on the next page. Connect these to the supplied CT Hub. c. Install the Smappee Connect and EV One Home splitter. The Smappee Connect should be placed inside or near the distribution panel. It requires a stable internet connection via Wi-Fi or Ethernet.
- Page 22 Connection diagram EV One Home – 3-phase (3P+N) It is possible to connect a three-phase EV One Home to a single-phase installation. In this case, you select single-phase in the app and follow the instructions in the app. Smappee EV One Home – Installation manual - English...
- Page 23 Belgium, Norway and France. If this is not applicable, you can skip this section. When an EV One Home is installed in a residential installation with a 3P (3 x 230 V) Delta grid connection, some additional requirements need to be taken into account. You can verify whether you have this topology by checking the grid connection to see if the following are true: •...
- Page 24 Do not disconnect the L2 of the power supply cable! If you install an EV One Home on a 3 x 230 V delta grid connection without transformer, the Infinity components in the distribution cabinet should be connected as shown below:...
- Page 25 Note that when you measure single-phase loads or solar panels, you must connect and configure the CT(s) as shown below: Single phase consumer/producer Connect the clamp around Phase measured by this CT powered by L1 and L3 L2 and L3 L1 and L2 Smappee EV One Home – Installation manual - English...
- Page 26 When a transformer is used in combination with a 3 x 230 V delta topology, the purchase of an additional Smappee Power box is required. This will be placed inside the distribution panel. In this case, the Power Box inside the EV One Home becomes redundant and both RJ10 cables should be disconnected.
- Page 27 Switching on the EV One Home a. Check all connections are secure and power-up the EV One Home. b. Check the status LEDs: o Connect: blue flashing o Power Box: green flashing light (1 x per 3 seconds) Smappee EV One Home – Installation manual - English...
- Page 28 Activation This procedure is done with the Smappee mobile app. You can download this from the Apple App Store for iOS or the Google Play store for Android phones. The Smappee App will guide you through the various steps to fill in all the required information.
- Page 29 Closure Make sure that the RCD switch is set to the ‘On’ position before closing the EV One Home a. Slide the housing over the inner structure. Make sure the opening for the socket is in line with the socket on the inner structure.
-
Page 30: Using The Ev One Home
1. Plug and charge: Simply connect your cable and start charging. 2. Swipe and charge: Connect the cable, swipe your card and start charging. 3. Scan and charge: Connect the cable, scan the QR code in the Smappee app and start charging. - Page 31 Charging sessions can be started using an RFID card. You can either use a Smappee Smart Charge Card for free charging or (if activated) a third party eMSP card to pay for charging sessions. The RFID reader is found on top of the EV One Home, together with the ambient light. •...
- Page 32 Scan and charge The user pays by credit card (Visa or Mastercard) using the Smappee app. They scan the QR code shown on the charging station and the app will guide them through the process of starting the charging session. It is also possible to set discount rates for specific users. Scan and charge is activated using the Smappee dashboard.
- Page 33 The Smappee EV One Check the manual or contact Home is unavailable. your supplier for more info and further steps. Red flashing Your charge card is not Contact your charge card authorised. supplier. Smappee EV One Home – Installation manual - English...
-
Page 34: Declaration Of Conformity
Metering Function : IEC 61010-1 Ed 3.0 (2010-06) + A1:2016 AC Charging equipment : IEC 61851-1 (2017) / EN61558-1 Other applicable standards and certifications: IEC 60364, IEC 62192-1, IEC 62192-2 Harelbeke, Belgium, May 31, 2023 Authorized signatory Stefan Grosjean Smappee EV One Home – Installation manual - English...
