What's in the box?
EV Wall mounting plate
EV Wall Lite
×3
×3
Screw & plug
Small screw
QR code
Smart Charge
sticker
Card
Quick Install
Quick Starter
Guide
Guide

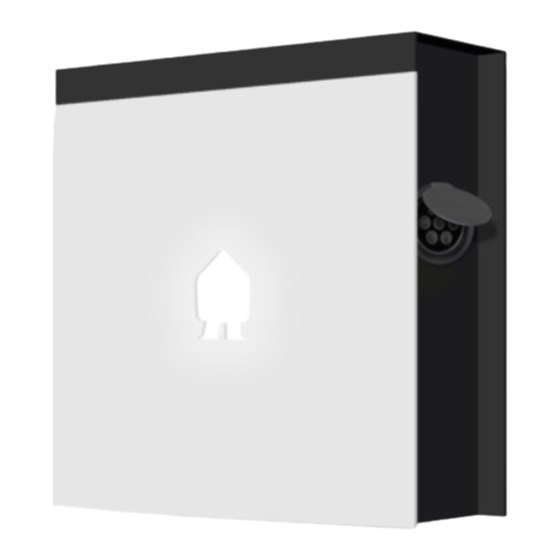

EV Wall
LITE
Front side
Power
supply cable
Charge
Connect
Controller
Power
Contactor
Box
Lock
PE
N
Solid
L1
core
L2
3-phase
CT
L3
Power
supply cable
Back side
LED Board
B B
Ethernet
cable
Ethernet
cable
EN
Safety warning
Carrying out electrical work within the home or workplace
can be dangerous and must be conducted according to
the appropriate national safety standards and executed by
a certified electrician.
For safety purposes, it is also necessary to power off
the installation before proceeding with the physical
installation.
For further safety instructions
and more detailed information,
please consult the full manual at
smappee.com/smappee-manuals
or via the QR code:
How to install EV Wall
LITE
1
Prepare the installation. Foresee an ethernet cable with
stable internet connectivity, and a power supply cable
between the distribution panel and the EV Wall.
2
Fix the mounting plate to the wall with the provided
plugs and screws.
Attach the EV Wall housing to the EV Wall mounting
3
plate with the provided small screws.
Connect the power supply and ethernet cable to
4
the EV Wall.
See diagrams overleaf. In case of 3-phase delta (3*230 V), please
consult the full manual online.
5
Connect the B cable to the B port of the LED board.
6
Switch on the power using the circuit breaker.
7
Download the Smappee App and follow the instructions
to configure your Smappee charging station.
8
Attach the front cover to the EV Wall to close it.
Only the B cable should be connected to one of the B ports on the LED
board. Do not attach anything to the A port and RJ45 port of the LED board.
Create a user account for the customer and share the
9
location with this new username. Write the username,
password and email address in the Quick Starter Guide
(included in the box together with this Quick Install
Guide) and hand it to your customer. This user account
can be used for the Smappee App.
