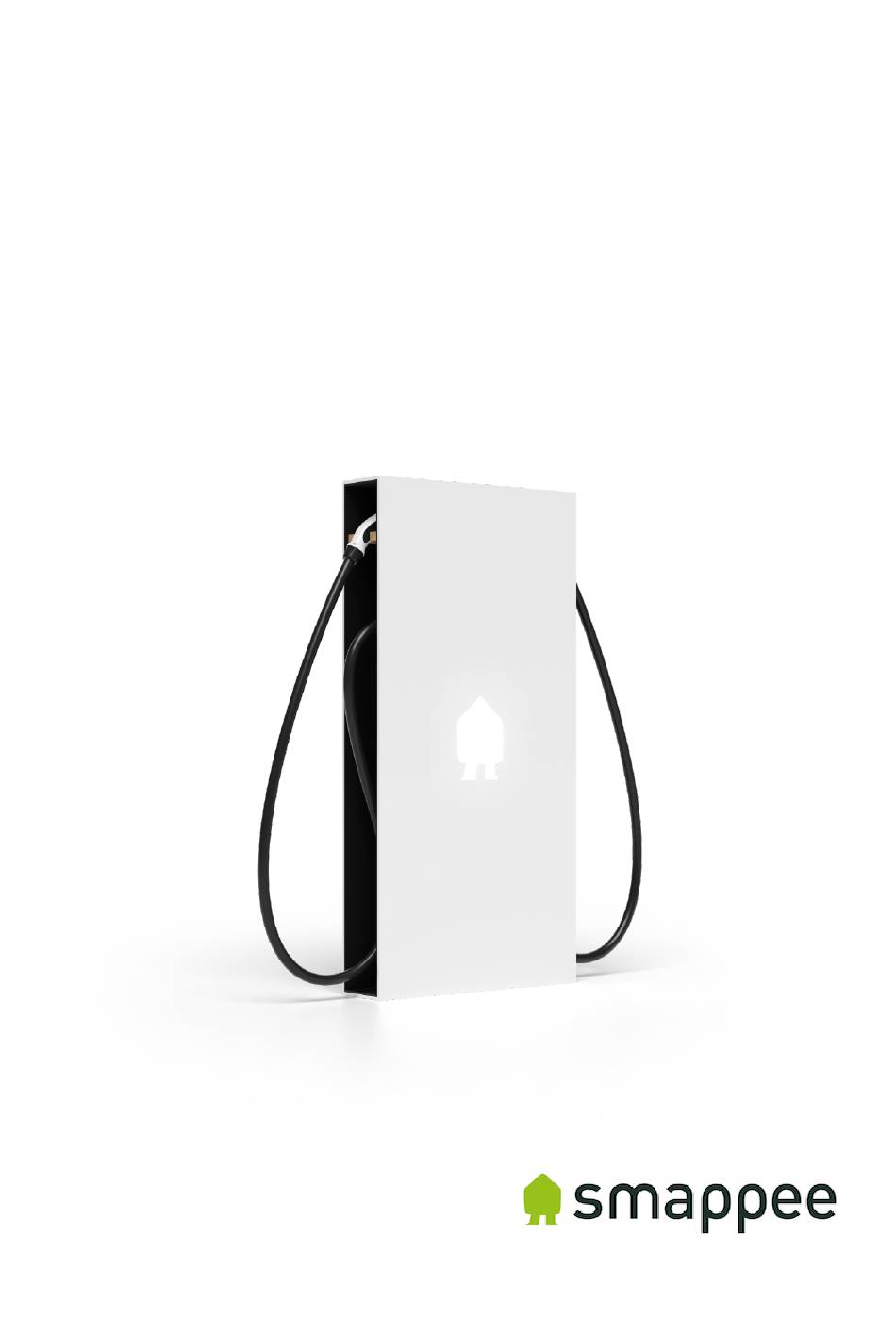

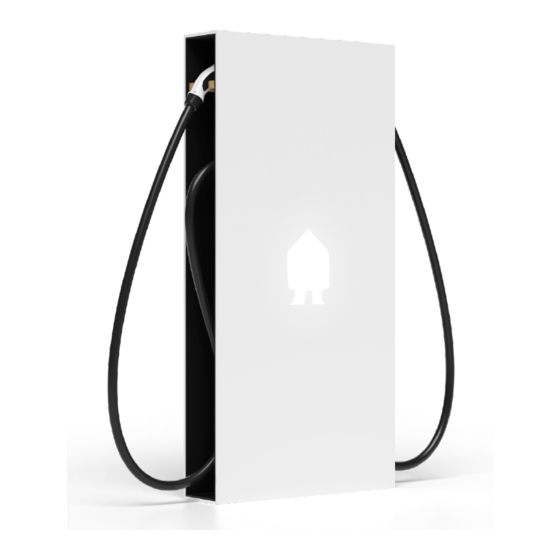

- Page 1 Smappee EV Base Installation manual English – Version 1.0 – September 2020...
-
Page 2: Table Of Contents
3. Components ..................... 6 4. Technical specifications ..................7 5. Preparing the installation ................. 8 6. Installation and activation ................11 7. Using the EV Base ................... 17 8. Declaration of conformity ................20 Smappee EV Base – Installation manual - English... -
Page 3: Introduction
This installation and user manual tells you how to install and use the Smappee EV Base. We advise you to read the contents of this manual carefully, to ensure a safe and proper installation and enable you to use all the advanced features of this product to the full. -
Page 4: Safety Instructions
Safety warning Fully read and follow the safety instructions below before you install, service or use your Smappee EV Base. The installer must ensure that the charging station is installed in accordance with the relevant national and local regulations. Carrying out activities on this charging station without the relevant knowledge and qualifications can lead to serious accidents and death. - Page 5 Only transport and store the charging station in its original packaging. No liability for damage incurred will be accepted if the charging station is transported in non-standard packaging. • Store the charging station in a dry environment within the temperature range specified in the technical specifications. Smappee EV Base – Installation manual - English...
-
Page 6: Components
The identification label of your charging station is located under the top cover of connector 1. 1. Manufacturer 2. Article number 3. Rating 4. Serial number 5. Manufacturing date 6. Degree of protection 7. QR code containing article number and serial number Smappee EV Base – Installation manual - English... -
Page 7: Technical Specifications
0 – 2.000 m Physical properties Dimensions 1200 x 600 x 150 mm Weight 20 kg (28 kg incl. 2 cables), excluding packaging Charging cable length 2 x 2500 mm Mounting method Floor / Ground Smappee EV Base – Installation manual - English... -
Page 8: Preparing The Installation
5. Preparing the installation The first step is to prepare the physical installation of the EV Base as described in this chapter. Installation prerequisites • Calculate the existing electrical load to find the maximum operating current for the charging station installation. The Smappee EV Base is equipped with 2 connectors which need to be powered individually. - Page 9 2 x 32 A Prepare the mounting foundation The Smappee EV Base is designed to be installed at ground level without the need for a separate mount. A stable and level ground needs to be prepared in advance. We advise a levelled concrete foundation at ground level.
- Page 10 4 x concrete anchors (Ø 12 mm x 100 mm) 4 x washers (Ø 50 mm) Supplies (not included) Ethernet cable or RJ45 connector for wired communication. Power supply cables Ferrules (10 mm²), for stranded power supply cables Smappee EV Base – Installation manual - English...
-
Page 11: Installation And Activation
6. Installation and activation This procedure describes the required steps for the physical installation of the EV Base. CAUTION: Make sure it is not possible to connect the electric current during installation. Put up caution tape and warning signs to mark the work areas. Make sure no unauthorised people can enter the work areas. - Page 12 To tilt the floor plate, insert large washers below the floor plate until it becomes level. Place the EV Base in position a. Remove the backplate of the EV base and position this on the floor plate. Smappee EV Base – Installation manual - English...
- Page 13 Place the four nuts and hand tighten. Do NOT torque the four nuts yet. This is done in the last step of the installation, when the back cover of the EV Base is in place. Power supply connection a. Cut both the power supply cables to adequate length and add the ferrules to each conductor.
- Page 14 This procedure is done with the Smappee Energy Monitor mobile app. You can download this from the Apple App Store for iOS or the Google Play store for Android phones. The Smappee App will guide you through the various steps to fill in all the required information. Smappee EV Base – Installation manual - English...
- Page 15 • Log in to the Smappee App with the corresponding Smappee username or create a new user account. • Install a Smappee EV Base • Follow the steps shown in the mobile app. Multiple charging stations can be installed at a single location. To add a new charging station in the mobile app, go to Settings >...
- Page 16 Tighten the anchor nuts with a socket wrench. c. Finish off by using the preferred top coat. Smappee EV Base – Installation manual - English...
-
Page 17: Using The Ev Base
Scan & Charge If you want to authorise via a QR code, you will first have to connect your EV with the Smappee EV Base. Then, you will have to scan the QR code found on the same side as your EV with your smart phone and your charging session will commence. - Page 18 If you want to authorise your charging session with an eMSP provider, you will first have to connect your EV with the Smappee EV Base. Then, you will have to scan your RFID card which can be done by holding it directly above the Smappee EV Base. You will hear a confirmation tone when your card is successfully scanned.
- Page 19 Check the manual or contact a problem and is now your supplier for more info and unavailable. further steps. Red flashing Your charge card is not Contact your charge card authorised. supplier. Smappee EV Base – Installation manual - English...
-
Page 20: Declaration Of Conformity
- 2011/65/EU RoHS Directive hereby declare that the product: smappee EV-Base with subparts: Smappee Connect (MOD-GW-3), Smappee MID meter, Power Supply Module, Smappee AC Charger module and auxiliary parts is in conformity with the applicable requirements of the following documents...
