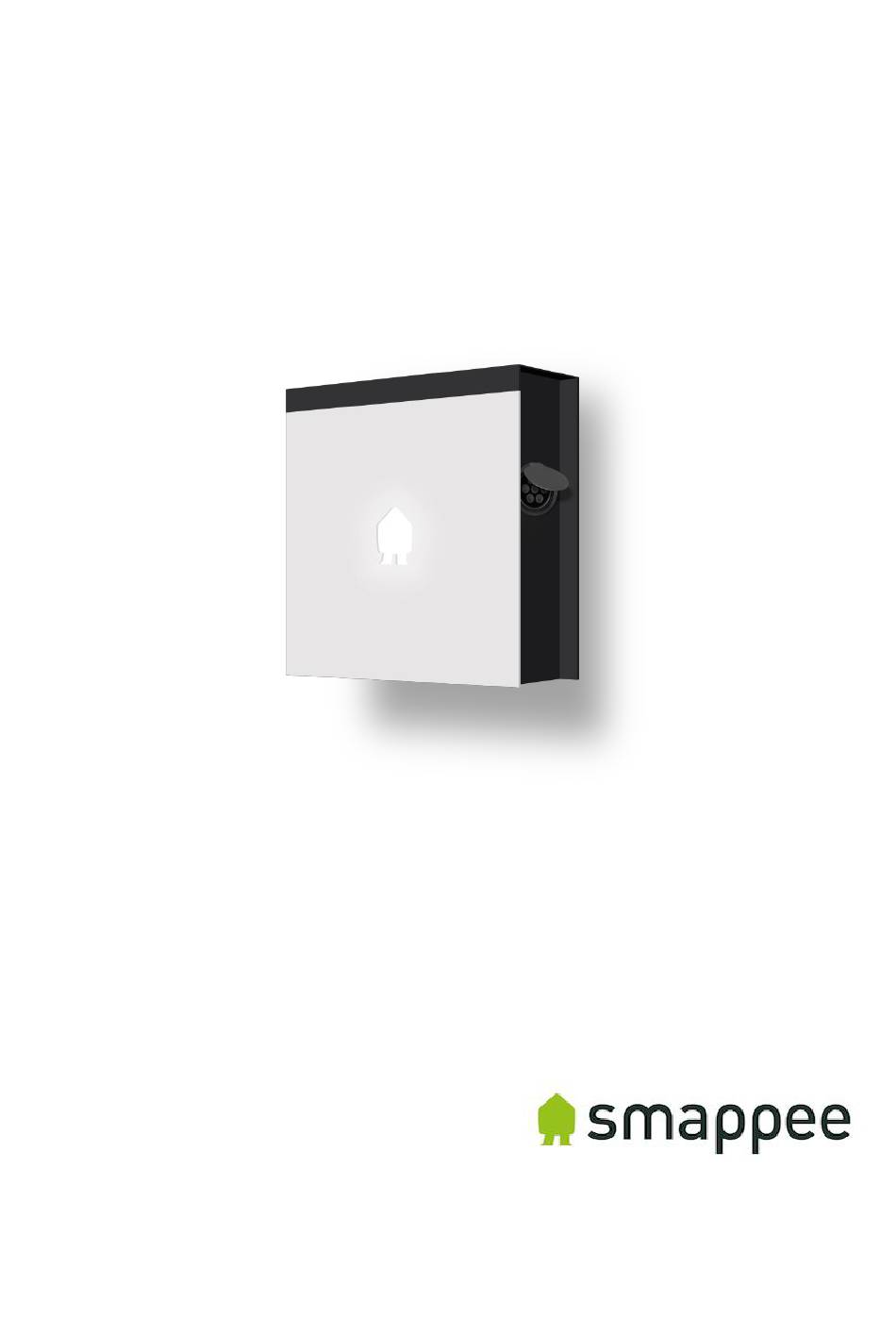

Smappee EV Wall
BUSINESS
Installation manual
English – Version 2.0 – June 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV Wall BUSINESS and is the answer not in the manual?

Questions and answers

Related Manuals for Smappee EV Wall BUSINESS

Summary of Contents for Smappee EV Wall BUSINESS

  • Page 1 Smappee EV Wall BUSINESS Installation manual English – Version 2.0 – June 2023...
  • Page 2 The specifications and other information in this document were verified to be accurate and complete at the time of its publication. Due to ongoing product improvement, this information is subject to change at any time without prior notice. For the latest information, see our online documentation: https://www.smappee.com/downloads...

  • Page 3: Table Of Contents

    4. Components ....................8 5. Technical specifications................. 10 6. Preparing the installation ................13 7. Installation and activation ................16 8. Using the EV Wall Business ................28 Declaration of conformity ................... 32 Smappee EV Wall Business – Installation manual - English...

  • Page 4: Introduction

    This installation and user manual tells you how to install and use the Smappee EV Wall Business. We advise you to read the contents of this manual carefully, to ensure a safe and proper installation and enable you to use all the advanced features of this product to their full extent.

  • Page 5: Safety Instructions

    Safety warning Fully read and follow the safety instructions below before you install, service or use your Smappee EV Wall Business. The installer must ensure that the charging station is installed in accordance with the relevant national and local regulations.
  • Page 6 • Store the charging station in a dry environment within the temperature range specified in the technical specifications. Smappee EV Wall Business – Installation manual - English...

  • Page 7: Models

    5425036932159 EV Wall Business White 3-Phase 22 kW Socket EV Wall Business White 3-Phase 22 kW Socket with EVWB-332-BSR-E-W 5425036932746 shutter EV Wall Business White 3-Phase 22 kW Type 2 cable EVWB-332-C8R-E-W 5425036932234 Smappee EV Wall Business – Installation manual - English...

  • Page 8: Components

    2. 1 x cable tie for strain relief 3. 1 x EV cable holder + 2 x screws + 2 x plugs 4. 1 x M32 cable gland for EV Charging cable Smappee EV Wall Business – Installation manual - English...
  • Page 9   1. Manufacturer 2. Article number 3. Rating 4. Manufacturing date 5. QR code containing article number and serial number 6. Serial number 7. Degree of protection 8. EAN code Smappee EV Wall Business – Installation manual - English...

  • Page 10: Technical Specifications

    Information status RGB LED Only applicable for the French market. Caution: not all vehicles support the IT system. In that case, or with 3-phase charging a voltage transformer may be required. Smappee EV Wall Business – Installation manual - English...
  • Page 11 1 x 8 m Supply line connection Terminal block, flexible conductors up to 6 mm² or solid conductors up to 10 mm² Stationary / moveable Fixed installation External design Enclosed assembly Mounting method Wall Smappee EV Wall Business – Installation manual - English...
  • Page 12 Where products are exposed to the elements of nature, the enclosure can be subject to gradual aging of the material, which can result in product discolouration over time. Therefore, wherever possible, place the product in a sheltered place to optimise the life of the materials. Smappee EV Wall Business – Installation manual - English...

  • Page 13: Preparing The Installation

    Ethernet cable for the internet connection (if applicable). • Make sure that there is at least 30 cm cable available at the location of the EV Wall Business to be able to connect it easily internally. •...
  • Page 14 All Smappee EV Wall Business types are designed to be mounted on a wall. When positioning the EV Wall Business, take into account that the power supply cables and Ethernet cable are entering the housing at the bottom through cable glands. The central M32 cable gland is for the power supply, the M20 cable gland for the Ethernet cable.
  • Page 15 CAT 5/6 Ethernet cable and RJ45 connector for internet access. Power supply cables Ferrules (6 mm²), for stranded power supply cables 32 A circuit breaker In case of socket with shutter version: 30 mA RCD Type A or B Smappee EV Wall Business – Installation manual - English...

  • Page 16: Installation And Activation

    7. Installation and activation This procedure describes the required steps for the physical installation of the EV Wall Business. CAUTION: The installation must be carried out by a qualified professional who has read this manual and works in compliance with IEC 60364 standards. Neglecting this may lead to severe injuries or hazardous situations while working with electricity.
  • Page 17 • In case of socket version: M32 x 1, M20 x 1, M32 plug x 1. c. Attach the EV Wall Business housing to the mounting plate using the three supplied M4 x 6 mm HEX screws. Smappee EV Wall Business – Installation manual - English...
  • Page 18 L3 – L1 – L2 – N And continue with this pattern for other EV Wall Business units. When phase rotation is applied on a connector, adjust the configuration in the Smappee app or Dashboard. Smappee EV Wall Business – Installation manual - English...
  • Page 19 This version of the EV Wall Home is normally used in France. If you have a socket version, please continue to the next section. As this version of the EV Wall Business does not have the integrated 30 mA RCD, the power supply cables need to be connected elsewhere.
  • Page 20 EV charging cable mounting (only fixed cable version) This section is only relevant if the EV Wall Business comes with a fixed cable. If you have a socket version, please continue to the next section. a. Slide the fixed charging cable through the left M32 cable gland and mount the power supply wires to the terminal block at the bottom of the PCB.
  • Page 21 Mount the separate cable holder on the wall nearby the EV Wall Business. As the cable socket is situated on the righthand side of the EV Wall Business, we advise to mount the cable holder on the same side.
  • Page 22 Belgium, Norway and France. If this is not applicable, you can skip this section. When an EV Wall Business is installed in a residential installation with a 3P (3 x 230 V) Delta grid connection, some additional requirements need to be taken into account. You can verify whether you have this topology by checking the grid connection to see if the following are true: •...
  • Page 23 We highly recommend that you test compatibility with the customer’s EV during installation. If you have connected the EV Wall Business as shown above but the EV will not charge, you can try to disconnect the L2 cable going to the charging cable or to the socket.
  • Page 24 Closure Make sure the power is off before connecting any cables. a. Plug the Ethernet cable into the RJ-45 connector of the Smappee Connect. The Smappee Connect is found in the upper right corner. b. Mount the front plate into position by connecting the 12-pin plug to the PCB attached to the front plate.
  • Page 25 Mount and tighten the supplied M4 nuts Smappee EV Wall Business – Installation manual - English...
  • Page 26 Make sure that the RCD switch is set to the ‘On’ position before closing the EV Wall Business. a. Check all connections are secure. b. Power-up the EV Wall Business. c. Check the status LEDs: o Smappee Connect: blue flashing o MID meters: Display is lighting up Smappee EV Wall Business – Installation manual - English...
  • Page 27 The Smappee App will guide you through the various steps to fill in all the required information. • Log in to the Smappee App. If you would like to add this charging station to an existing location, log in with an account that has access to that location. If you would like to create a new location, you may create a new account.

  • Page 28: Using The Ev Wall Business

    1. Plug and charge: Simply connect your cable and start charging. 2. Swipe and charge: Connect the cable, swipe your card and start charging. 3. Scan and charge: Connect the cable, scan the QR code in the Smappee app and start charging.
  • Page 29 Charging sessions can be started using an RFID card. You can either use a Smappee Smart Charge Card for free charging or (if activated) a third party eMSP card to pay for charging sessions. The RFID reader is found on the front plate of the EV Wall Business, together with the ambient light. Whitelist: charging is free with a Smappee Smart Charge Card or any other authorized RFID card.
  • Page 30 Scan and charge The user pays by credit card (Visa or Mastercard) using the Smappee app. They scan the QR code shown on the charging station and the app will guide them through the process of starting the charging session. It is also possible to set discount rates for specific users. Scan and charge is activated using the Smappee dashboard.
  • Page 31 The Smappee EV Wall Check the manual or contact Business is unavailable. your supplier for more info and further steps. Red flashing Your charge card is not Contact your charge card authorised. supplier. Smappee EV Wall Business – Installation manual - English...

  • Page 32: Declaration Of Conformity

    Metering Function : IEC 61010-1 Ed 3.0 (2010-06) + A1:2016 AC Charging equipment : IEC 61851-1 (2017) / EN61558-1 Other applicable standards and certifications: IEC 60364, IEC 62192-1, IEC 62192-2 Harelbeke, Belgium, April 21, 2021 Authorized signatory Stefan Grosjean Smappee EV Wall Business – Installation manual - English...
