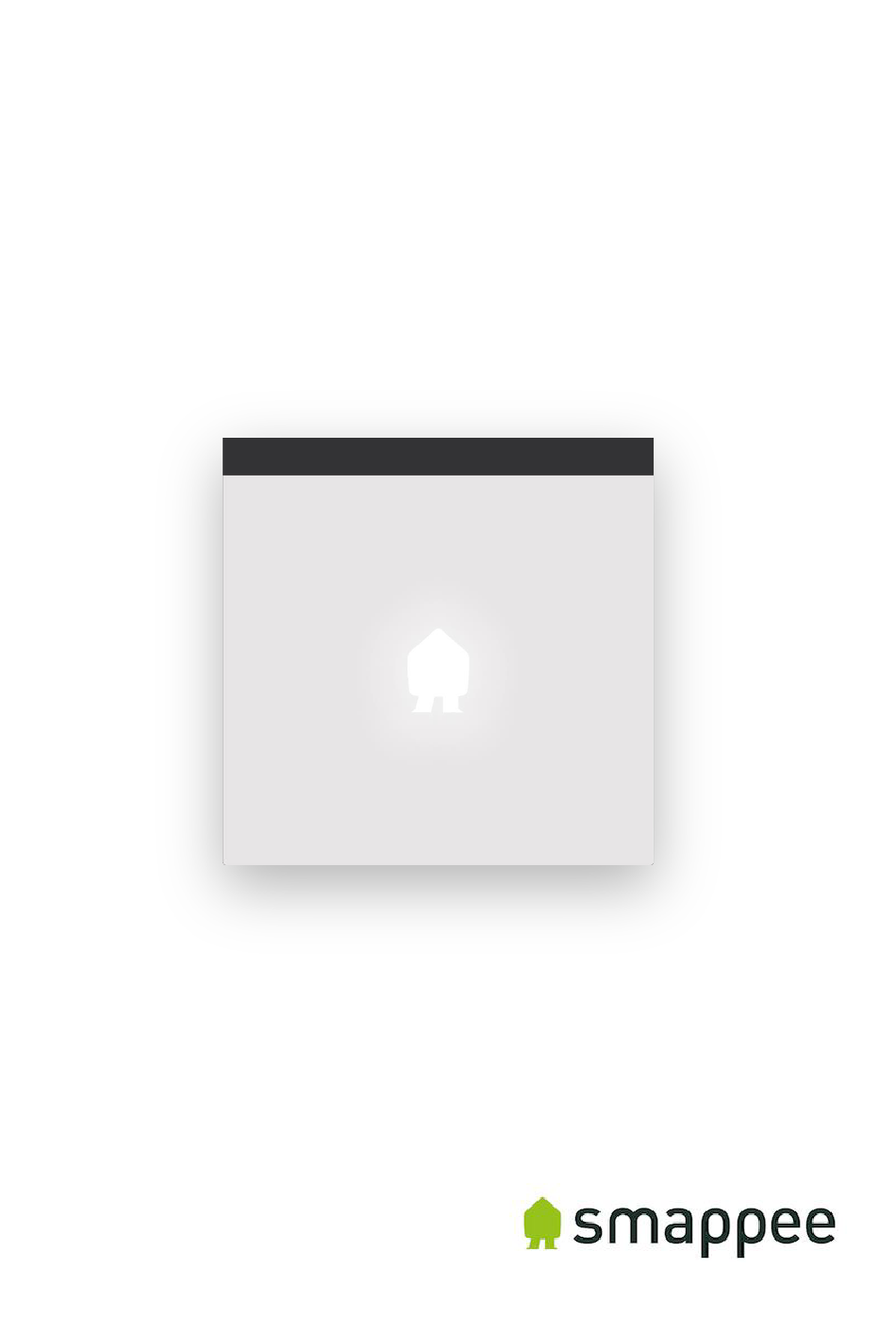

  • Page 1 Smappee EV Wall Installation manual English – Version 1.1 – March 2021...

  • Page 2: Table Of Contents

    4. Components ....................7 5. Technical specifications................. 10 6. Preparing the installation ................11 7. Installation and activation ................14 8. Using the EV Wall ..................26 9. Declaration of conformity ................30 Smappee EV Wall – Installation manual - English...

  • Page 3: Introduction

    This installation and user manual tells you how to install and use the Smappee EV Wall. We advise you to read the contents of this manual carefully, to ensure a safe and proper installation and enable you to use all the advanced features of this product to their full extent.

  • Page 4: Safety Instructions

    Safety warning Fully read and follow the safety instructions below before you install, service or use your Smappee EV Wall. The installer must ensure that the charging station is installed in accordance with the relevant national and local regulations. Carrying out activities on this charging station without the relevant knowledge and qualifications can lead to serious accidents and death.
  • Page 5 Only transport and store the charging station in its original packaging. No liability for damage incurred will be accepted if the charging station is transported in non-standard packaging. • Store the charging station in a dry environment within the temperature range specified in the technical specifications. Smappee EV Wall – Installation manual - English...

  • Page 6: Models

    EV Wall 3-Phase 22 kW Socket Right White 5425036932043 EVW-332-BR-E-B EV Wall 3-Phase 22 kW Socket Right Black 5425036932074 EVW-332-C2R-E-W EV Wall 3-Phase 22 kW Type 2 cable 2,5m Right White 5425036932081 EVW-332-C2R-E-B EV Wall 3-Phase 22 kW Type 2 cable 2,5m Right Black 5425036932111 EVW-332-C8R-E-W...

  • Page 7: Components

    4. Components Components included Single phase Smappee EV Wall – Installation manual - English...
  • Page 8 Three phase Smappee EV Wall – Installation manual - English...
  • Page 9 2. 8 m version: 1 x EV cable holder + 3 x screws + 3 x plugs Identification label The identification label of your charging station is located on the left inside of the EV Wall. 1. Manufacturer 2. Article number 3.

  • Page 10: Technical Specifications

    300 x 300 x 110 mm Weight (excluding packaging) 6.2 kg 6.8 kg (2.5 m cable) or 9.8 kg (8 m cable) Charging cable length 1 x 2.5 m or 1 x 8 m Mounting method Wall Smappee EV Wall – Installation manual - English...

  • Page 11: Preparing The Installation

    Cat 5/6 communication cable between the EV Wall and distribution panel. • Make sure that there is at least 30 cm cable available at the location of the EV Wall to be able to connect it easily internally.
  • Page 12 3 x 32 A Route communication cable The EV Wall requires a communication cable between the EV Wall and the distribution panel where the CT measurements and Connect gateway are placed. To do this, two twisted pairs of a Cat 5 or Cat 6 networking cable are used.
  • Page 13 3 x M4 x 6 mm HEX screws Supplies (not included) CAT 5/6 cable and two RJ45 connectors for wired communication cable. Power supply cables Ferrules (10 mm²), for stranded power supply cables 32 A circuit breaker Smappee EV Wall – Installation manual - English...

  • Page 14: Installation And Activation

    Place the mounting plate in position a. Use the mounting plate to mark the position of the screws on the wall where the EV Wall is to be positioned. Make sure the mounting plate is positioned with the 2 insert holes on the bottom, as depicted below.
  • Page 15 Drill 3 holes of 10 mm diameter through the slots to a depth of 50 mm. Insert the supplied wall plugs into the holes. c. Attach the mounting plate to the wall with the supplied screws. Smappee EV Wall – Installation manual - English...
  • Page 16 Remove the front plate of the EV Wall and disconnect the communication cables. Safely put aside the front plate to avoid damaging the PCB-board attached to it. b. Attach the EV Wall housing to the mounting plate using the three supplied M4 x 6 mm HEX screws.
  • Page 17 Measure the resistance of the grounding circuit and make sure that it is within acceptable limits. If necessary, install a grounding point closer to the charging station. d. Connect each supply cable to the terminal block. Smappee EV Wall – Installation manual - English...
  • Page 18 EV charging cable mounting (only fixed cable version) This section is only relevant if the EV Wall comes with a fixed cable. If you have a socket version, please continue to the next section. a. Mount the fixed charging cable through the left M32 cable gland and mount the power supply wires to the terminal block.
  • Page 19 & solar optimization supplied with the EV Wall. The EV Wall package comes with the required Smappee Infinity components to be installed in the distribution panel to measure the main feeder (total grid consumption) and single-phase solar production.
  • Page 20 Connection diagram EV Wall – 1-phase (1P+N) Smappee EV Wall – Installation manual - English...
  • Page 21 Connection diagram EV Wall – 3-phase (3P+N) Smappee EV Wall – Installation manual - English...
  • Page 22 Guidelines With these guidelines, you are able to determine what you need to do to make sure the EV Wall can be charged. Check prior to the EV Wall installation the type of Delta Topology by measuring the voltage between the phases and ground.
  • Page 23 In case of a 3P (3*230V) Delta topology of type 2 (see special notes on previous page), only the B cable should be connected. b. Mount and tighten the supplied M4 nuts Smappee EV Wall – Installation manual - English...
  • Page 24 All communication cables must be attached to the front panel before powering the EV Wall. The EV Wall should also be closed. a. Check all connections are secure and power-up the EV Wall. b. Check the status LEDs: a. Charging controller: green flashing light (1 x per 3 seconds) b.
  • Page 25 This procedure is done with the Smappee Energy Monitor mobile app. You can download this from the Apple App Store for iOS or the Google Play store for Android phones. The Smappee App will guide you through the various steps to fill in all the required information. •...

  • Page 26: Using The Ev Wall

    1. Plug and charge: Simply connect your cable and start charging. 2. Swipe and charge: Connect the cable, swipe your card and start charging. 3. Scan and charge: Connect the cable, scan the QR code in the Smappee app and start charging.
  • Page 27 Swipe and charge Charging sessions can be started using an RFID card. You can either use a Smappee Smart Charge Card for free charging or (if activated) a third party eMSP card to pay for charging sessions. • Free charging: charging is free with your Smappee Smart Charge Card or any other authorized RFID card.
  • Page 28 Scan and charge The user pays by credit card (Visa or Mastercard) using the Smappee app. They scan the QR code shown on the charging station and the app will guide them through the process of starting the charging session. It is also possible to set discount rates for specific users. Please contact info@smappee.com to activate Scan and charge and request your QR code sticker.
  • Page 29 The Smappee EV Wall is Check the manual or contact unavailable. your supplier for more info and further steps. Red flashing Your charge card is not Contact your charge card authorised. supplier. Smappee EV Wall – Installation manual - English...

  • Page 30: Declaration Of Conformity

    Burst : EN 61000-4-4:2004 / EN 61000-4-4:2012 Surge: EN 61000-4-5:2005 / EN 61000-4-5:2006 * Safety: Metering Function : IEC 61010-1 Ed 3.0 (2010-06) + A1:2016 AC Charging equipment : IEC 61851-1 (2017) / EN61558-1 Authorized signatory Stefan Grosjean Smappee EV Wall – Installation manual - English...

This manual is also suitable for:
