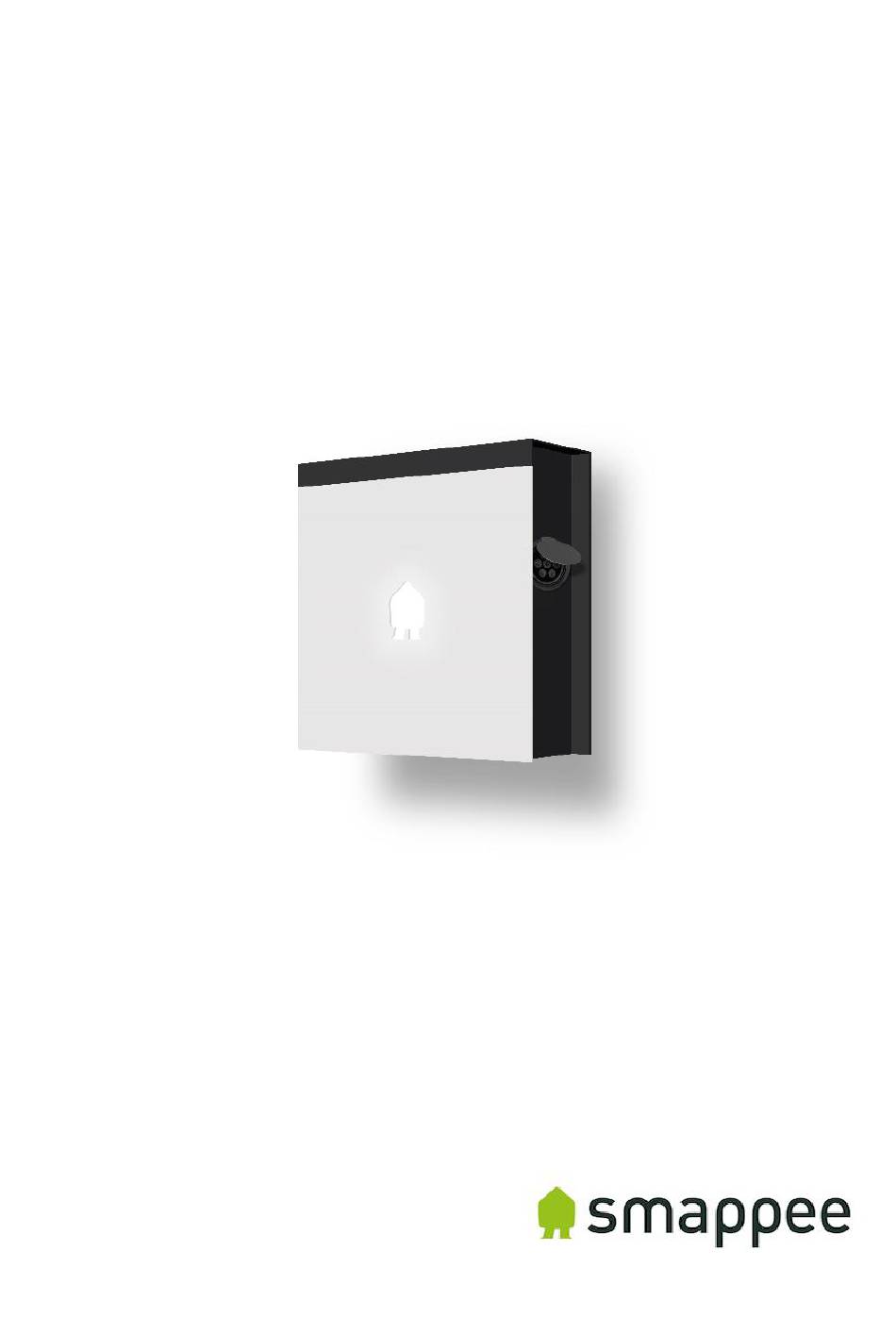

- Page 1 Smappee EV Wall LITE Installation manual English – Version 1.0 – April 2023...
- Page 2 The specifications and other information in this document were verified to be accurate and complete at the time of its publication. Due to ongoing product improvement, this information is subject to change at any time without prior notice. For the latest information, see our online documentation: https://www.smappee.com/downloads...
-
Page 3: Table Of Contents
4. Components ....................8 5. Technical specifications................. 10 6. Preparing the installation ................13 7. Installation and activation ................16 8. Using the EV Wall Lite ................... 25 Declaration of conformity ................... 29 Smappee – EV Wall Lite – Installation manual – English... -
Page 4: Introduction
Thank you for purchasing this Smappee EV Wall Lite charging station for electric vehicles for charging at home. This installation and user manual tells you how to install and use the Smappee EV Wall Lite. We advise you to read the contents of this manual carefully, to ensure a safe and proper installation. -
Page 5: Safety Instructions
2. Safety instructions Safety warning Fully read and follow the safety instructions below before you install, service or use your Smappee EV Wall Lite. The installer must ensure that the charging station is installed in accordance with the relevant national and local regulations. - Page 6 • Store the charging station in a dry environment within the temperature range specified in the technical specifications. Smappee EV Wall Lite – Installation manual - English...
-
Page 7: Models
3. Models Article no. Description EVWL-332-BR-E-W 5425036933989 EV Wall Lite White 3-Phase 22 kW Socket Smappee EV Wall Lite – Installation manual - English... -
Page 8: Components
4. Components Components included Smappee EV Wall Lite – Installation manual - English... - Page 9 1. Manufacturer 2. Article number 3. Rating 4. Manufacturing date 5. QR code containing article number and serial number 6. Serial number 7. Degree of protection 8. EAN code Smappee EV Wall Lite – Installation manual - English...
-
Page 10: Technical Specifications
Information status RGB LED Session activation Plug and charge, Scan QR code, Swipe RFID card Connectivity Ethernet 100BASE-T, Wi-Fi 2.4 Ghz Communication protocol OCPP 1.6 JSON, ready for update to OCPP 2.0 Smappee EV Wall Lite – Installation manual - English... - Page 11 Charging cable length Supply line connection Terminal block, flexible conductors up to 6 mm² or solid conductors up to 10 mm² Stationary / moveable Fixed installation External design Enclosed assembly Mounting method Wall Smappee EV Wall Lite – Installation manual - English...
- Page 12 Where products are exposed to the elements of nature, the enclosure can be subject to gradual aging of the material, which can result in product discolouration over time. Therefore, wherever possible, place the product in a sheltered place to optimise the life of the materials. Smappee EV Wall Lite – Installation manual - English...
-
Page 13: Preparing The Installation
Installation prerequisites • Calculate the existing electrical load to find the maximum operating current for the charging station installation. The Smappee EV Wall Lite is equipped with 1 connector which needs to be powered. • Obtain all necessary permits from the relevant local authority. - Page 14 The RJ-45 connector will not fit through the EV Wall Lite cable gland! Prepare the mounting The Smappee EV Wall Lite is designed to be mounted on a wall. When positioning the EV Wall Lite, take into account that the power supply cables and Ethernet cable are entering the housing at the bottom through cable glands.
- Page 15 CAT 5/6 ethernet cable and RJ45 connector for internet access Power supply cables Ferrules (6 mm²), for stranded power supply cables 32 A circuit breaker 30 mA RCD Type A or B Smappee EV Wall Lite – Installation manual - English...
-
Page 16: Installation And Activation
Drill 3 holes of 10 mm diameter through the slots to a depth of 50 mm. Insert the supplied wall plugs into the holes. d. Attach the mounting plate, with the 3 bulges facing the wall, to the wall with the supplied screws, as depicted below. Smappee EV Wall Lite – Installation manual - English... - Page 17 Wall Lite. Safely put aside the front plate to avoid damaging the PCB-board attached to it. b. Attach the EV Wall Lite housing to the mounting plate using the three supplied M4 x 6 mm HEX screws. Smappee EV Wall Lite – Installation manual - English...
- Page 18 If necessary, install a grounding point closer to the charging station. d. Connect each power supply cable to the terminal block. If you have a single-phase power supply, only the L1, N and PE wires are connected. Smappee EV Wall Lite – Installation manual - English...
- Page 19 This transformer will convert the 3 x 230 V delta topology to a standard 3 x 400 V + N star topology. Smappee EV Wall Lite – Installation manual - English...
- Page 20 If a transformer is used to convert the 3 x 230 V delta connection to a standard 3 x 400 V star with neutral, then the charging station’s power supply can be connected as usual. Please refer to the pictures on previous pages for this. Smappee EV Wall Lite – Installation manual - English...
- Page 21 Be careful to connect the RJ10 cable to one of the B ports. Do not connect it to the A port. The Ethernet cable should be connected to the Smappee Connect, not to the PCB attached to the front plate.
- Page 22 Mount and tighten the supplied M4 nuts. Optional: mount the Connect inside of the building In some rare occasions, it might be beneficial that the Smappee Connect is removed from the EV Wall Lite and mounted inside of the building.
- Page 23 Charging controller: green flashing light (1 x per 3 seconds) o RCM: continuous green light o Smappee Connect: blue flashing o Power Box: green flashing light (1 x per 3 seconds) Smappee EV Wall Lite – Installation manual - English...
- Page 24 Activation This procedure is done with the Smappee mobile app. You can download this from the Apple App Store for iOS or the Google Play store for Android phones. The Smappee App will guide you through the various steps to fill in all the required information.
-
Page 25: Using The Ev Wall Lite
1. Plug and charge: Simply connect your cable and start charging. 2. Swipe and charge: Connect the cable, swipe your card and start charging. 3. Scan and charge: Connect the cable, scan the QR code in the Smappee app and start charging. - Page 26 Swipe and charge Charging sessions can be started using an RFID card. You can either use a Smappee Smart Charge Card for free charging or (if activated) a third party eMSP card to pay for charging sessions. The RFID reader is found on the front plate of the EV Wall Lite, together with the ambient light.
- Page 27 Scan and charge The user pays by credit card (Visa or Mastercard) using the Smappee app. They scan the QR code shown on the charging station and the app will guide them through the process of starting the charging session. It is also possible to set discount rates for specific users. Scan and charge is activated using the Smappee dashboard.
- Page 28 The Smappee EV Wall Lite Check the manual or contact is unavailable. your supplier for more info and further steps. Red flashing Your charge card is not Contact your charge card authorised. supplier. Smappee EV Wall Lite – Installation manual - English...
-
Page 29: Declaration Of Conformity
Metering Function : IEC 61010-1 Ed 3.0 (2010-06) + A1:2016 AC Charging equipment : IEC 61851-1 (2017) / EN61558-1 Other applicable standards and certifications: IEC 60364, IEC 62192-1, IEC 62192-2 Harelbeke, Belgium, January 13, 2023 Authorized signatory Stefan Grosjean Smappee EV Wall Lite – Installation manual - English...
