CP0396

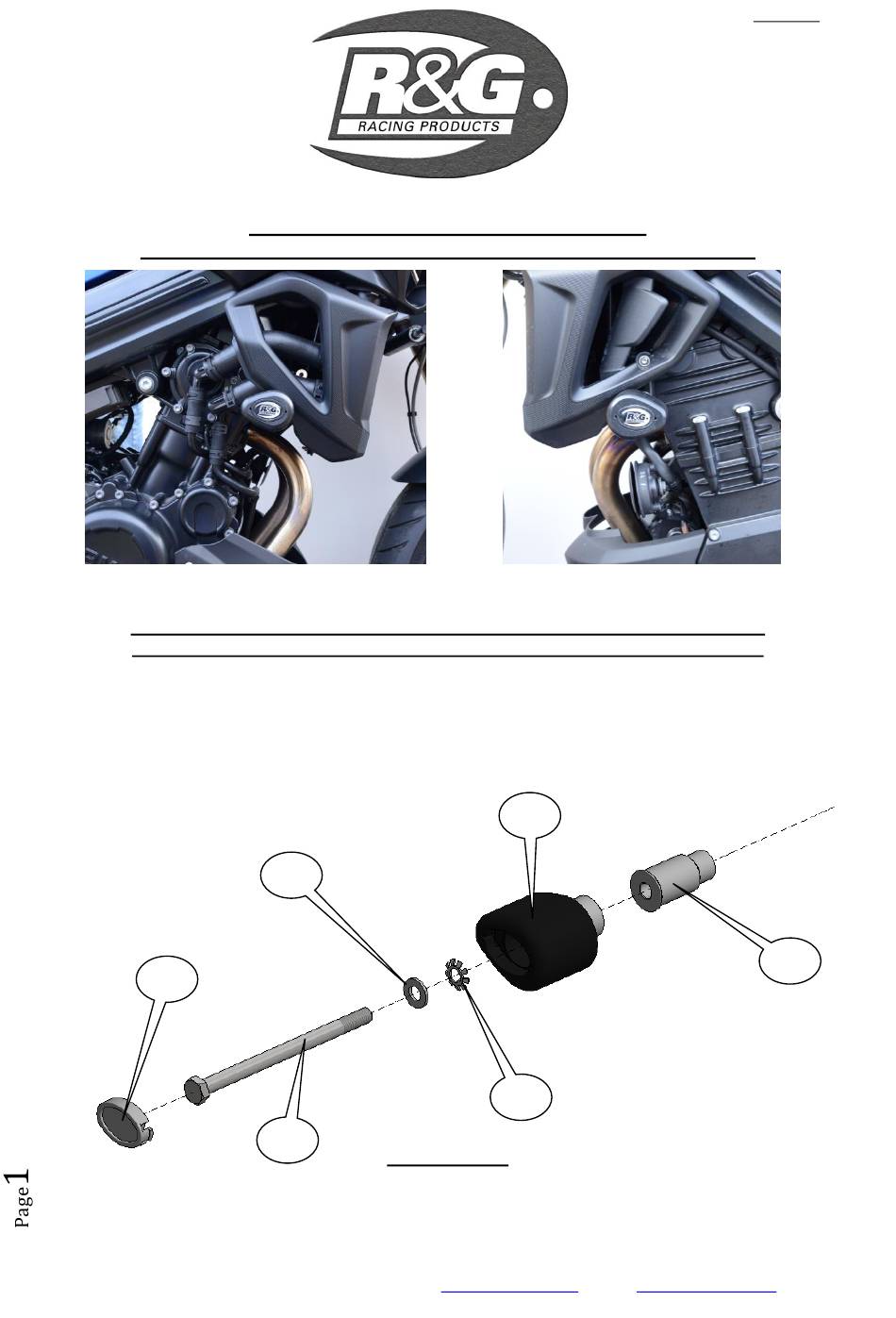

FITTING INSTRUCTIONS FOR CP0396BL
AERO CRASH PROTECTORS BMW F800 R '15- NON-DRILL KIT
Picture A
Picture B
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
mounting to the bike.
T
(
).
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
FOR CLARITY OF INSTRUCTIONS ONLY
5
3
6
1
4
2
RIGHT SIDE
R&G Racing
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
Advertisement
Related Manuals for R&G AERO CP0396
Summary of Contents for R&G AERO CP0396
- Page 1 CP0396 FITTING INSTRUCTIONS FOR CP0396BL AERO CRASH PROTECTORS BMW F800 R ’15- NON-DRILL KIT Picture A Picture B THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike.
-
Page 2: Left Side
CP0396 LEFT SIDE LEGEND ITEM 1 = CRASH PROTECTOR CAPS (BC0002) (x2). ITEM 2 = M10 x 1.5 x 160mm LONG HEX HEAD BOLT (x1). ITEM 3 = M10 WASHERS (x2). ITEM 4 = LOCK-WASHERS (LW0001) (x2). ITEM 5 = CRASH PROTECTOR (B0431 with CS341 & S0255) (x2). ITEM 6 = SPACER (S0926 –... -
Page 3: Fitting Instructions
CP0396 M8 BOLT = 20Nm M10 BOLT = 40Nm FITTING INSTRUCTIONS Remove the front engine mounting bolt using a T50 Torx socket Slide one of the 10mm washers (item 3) onto the M10 x 160mm long hex head bolt (item 2) so the washer sits against head of bolt. - Page 4 CP0396 INSTRUCTIONS DE MONTAGE POUR CP0396BL PROTECTIONS CRASH LATERALES BMW F800 R ’15- KIT NON PERCÉ Photo A Photo B E KIT CONTIENT LES ARTICLES EXPOSES CI DESSOUS VERIFIER QUE TOUTES LES PIECES SOIENT PRESENTES AVANT DE PROCEDER AU MONTAGE A FAÇON DONT LE KIT EST EMBALLE NE CORRESPOND PAS FORCEMENT A LA FAÇON DE MONTER LES PIECES SUR LA MOTO LES PARTIES PRESENTEES PEUVENT ETRE UNIQUEMENT REPRESENTATIVES (POUR LA...
- Page 5 CP0396 COTE GAUCHE LEGENDE ARTICLE 1 = CAPUCHONS DE PROTECTION CRASH (BC0002) (x2). ARTICLE 2 = M10 x 1.5 x 160mm BOULON (x1). ARTICLE 3 = M10 RONDELLES (x2). ARTICLE 4 = RONDELLES DE BLOCAGE (LW0001) (x2). ARTICLE 5 = PROTECTION CRASH (B0431 avec CS341 & S0255) (x2). ARTICLE 6 = ENTRETOISE (S0926 –...
- Page 6 CP0396 NOTICE DE MONTAGE : Enlever le boulon de fixation avant du moteur, à l’aide d’une clé Torx T50. Glissez une des rondelles 10mm (article 3) sur le boulon M10 x 160mm (article 2) de façon à ce que la rondelle se place contre la tête du boulon. ...
