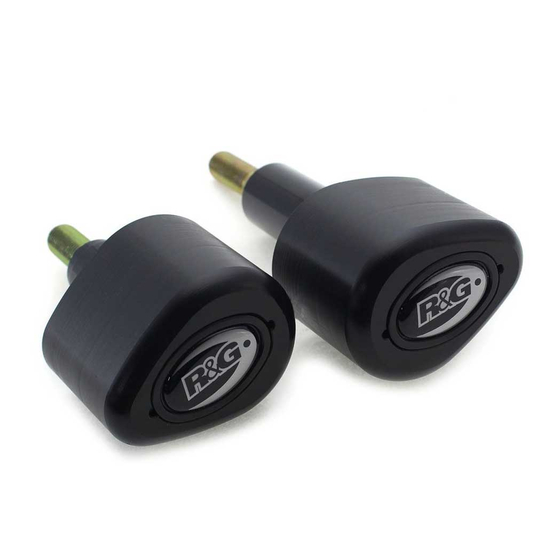

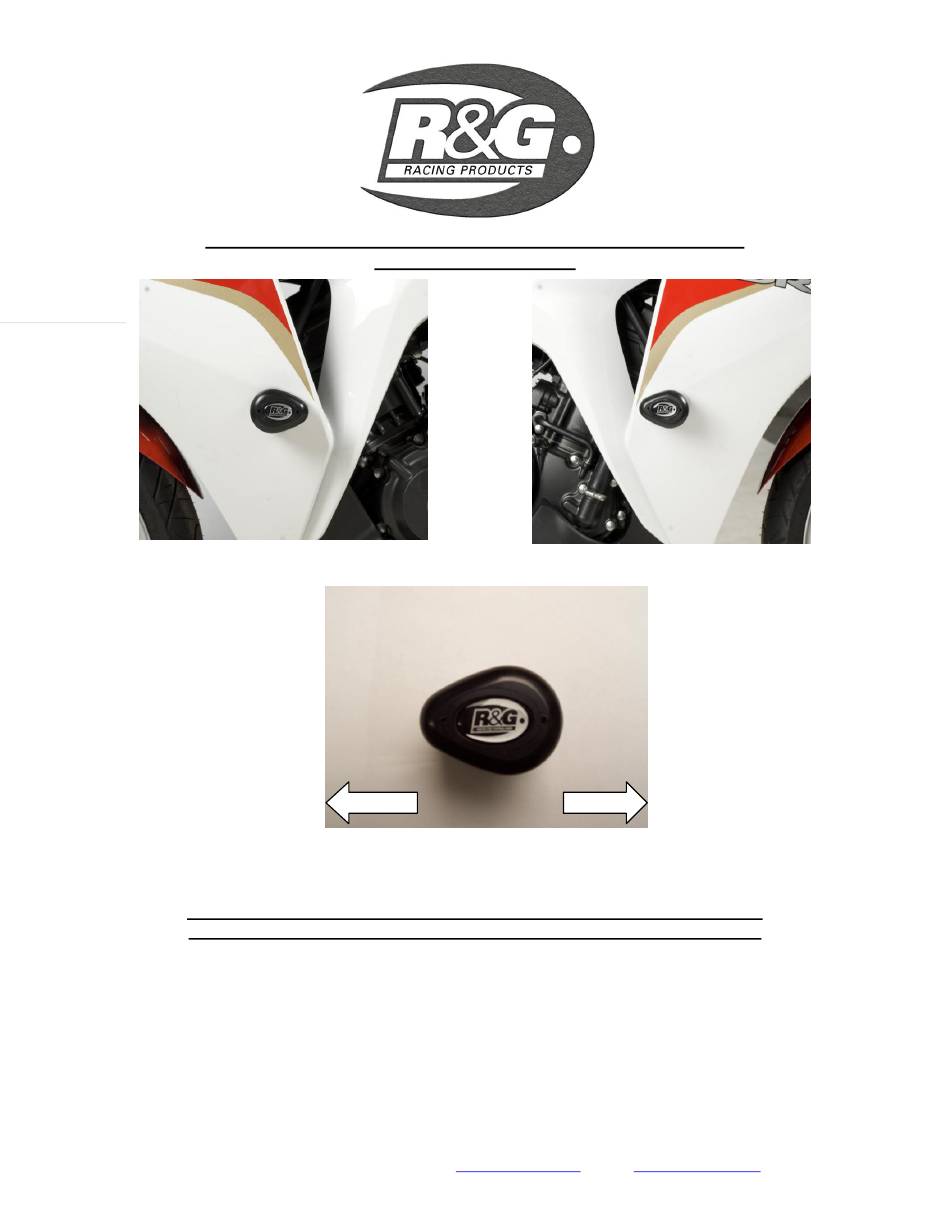

FITTING INSTRUCTIONS FOR CP0285 CRASH PROTECTORS
HONDA CBR 250R 2011
Page | 1
PICTURE 'A'
PICTURE 'B'
REAR OF BIKE
FRONT OF BIKE
PICTURE 'C'
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
mounting to the bike
Please note that in cases where kits are packed with rubber washers holding the components onto
the bolt – the rubber washers should be thrown away!
R&G Racing
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the CP0285 and is the answer not in the manual?

Questions and answers

Related Manuals for R&G CP0285

Summary of Contents for R&G CP0285

  • Page 1 FITTING INSTRUCTIONS FOR CP0285 CRASH PROTECTORS HONDA CBR 250R 2011 Page | 1 PICTURE ‘A’ PICTURE ‘B’ REAR OF BIKE FRONT OF BIKE PICTURE ‘C’ THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.

  • Page 2: Left-Hand Side

    HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY FOR CLARITY OF INSTRUCTIONS ONLY Page | 2 LEFT HAND SIDE R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...

  • Page 3: Right Hand Side

    THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Page | 3 RIGHT HAND SIDE R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...

  • Page 4: Tools Required

    TOOLS REQUIRED  Socket set to include 14mm and 17mm sockets and wrench  Set of metric Allen keys 4 and 5mm A/F  Torque wrench (up to 40Nm)  Drill  28mm Hole saw Page | 4 LEGEND ITEM 1 = M10x1.25x100mm LONG HEX HEAD BOLTS (CRASH PROTECTOR BOLTS)(x2). ITEM 2 = M10 PLAIN WASHERS (x4).
  • Page 5 Near side (left side as you sit on bike)  Remove side fairing (you will need to disconnect indicators). Remove the frame bolt in position arrowed in picture ‘D’ (using 14mm socket).   Stick the self-adhesive foam to the mounting surface of the mounting block (it helps prevent marking of the frame).
  • Page 6  Take one of the shorter (90mm long) hex head bolts with washers and locate in the hole in mounting block and into the frame mount as shown in picture ‘E’.  Do not tighten bolt yet.  Place the frame clamp around frame and aligned with the two clamping hole and secure in position Page | 6 using two of the M6x40mm long cap head bolts.
  • Page 7 R&G RACING RETURNS POLICY (NON-FAULTY GOODS) Returns must be pre-authorised (if not pre-authorised the return will be rejected). Goods may only be returned direct to us if they were purchased direct from us (customer must prove if necessary). Otherwise to be returned to original vendor. Goods must be in re- sellable condition, in the opinion of R&G Racing.
  • Page 8 INSTRUCTIONS DE MONTAGE CP0285 PROTECTION CARENAGE HONDA CBR 250R 2011 Page | 1 IMAGE ‘A’ IMAGE ‘B’ ARRIERE DE LA MOTO AVANT DE LA MOTO IMAGE ‘C’ ASSURER VOUS QUE TOUTES LES PIECES SONT PRESENTES AVANT DE PROCEDER AU MONTAGE A FACON DONT LE KIT EST EMBALLE NE REPRESENTE PAS NECESSAIREMENT LA FAÇON DE...
  • Page 9 LES PARTIES EXPOSEES PEUVENT AVOIR UNE VALEUR INDICATIVE Page | 2 COTE GAUCHE R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
  • Page 10 ASSUREZ VOUS QUE TOUTES LES PIECES SONT PRESENTES AVANT DE PROCEDER AU MONTAGE Page | 3 COTE DROIT R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
  • Page 11 OUTILS REQUIS · Prise définie afin d'inclure 14mm et 17mm et une clé · Jeu de clés Allen métriques 4 et 5 mm A / F ° Couple clé (jusqu'à 40Nm) Page | 4 · Percer · Trou de 28mm vu ...
  • Page 12 Cote gauche sur la moto: Page | 5 · Retirez carénage latéral (vous aurez besoin de déconnecter les clignotants). · Retirez le boulon du châssis comme indiquee sur l’image 'D' (via la douille de 14mm). · Collez la mousse auto-adhésif à la surface de montage du bloc de montage (elle permet d'éviter le marquage de la trame).
  • Page 13 Cote gauche sur la moto: · Retirez carénage latéral (vous aurez besoin de déconnecter les clignotants). · Retirez le boulon du châssis comme indique sur l’image 'D' (via la douille de 14mm). · Collez la mousse auto-adhésif à la surface de montage du bloc de montage (elle permet d'éviter Page | 6 le marquage de la trame).
  • Page 14 in R&G’s order or confirmation and the Buyer confirms it has chosen the Products as being of merchantable quality and suitable for its particular purposes. Where R&G fits the Products or undertakes other services it shall exercise reasonable skill and care and rectify any fault free of charge unless the workmanship has been disturbed.
  • Page 15 Page | 8 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
