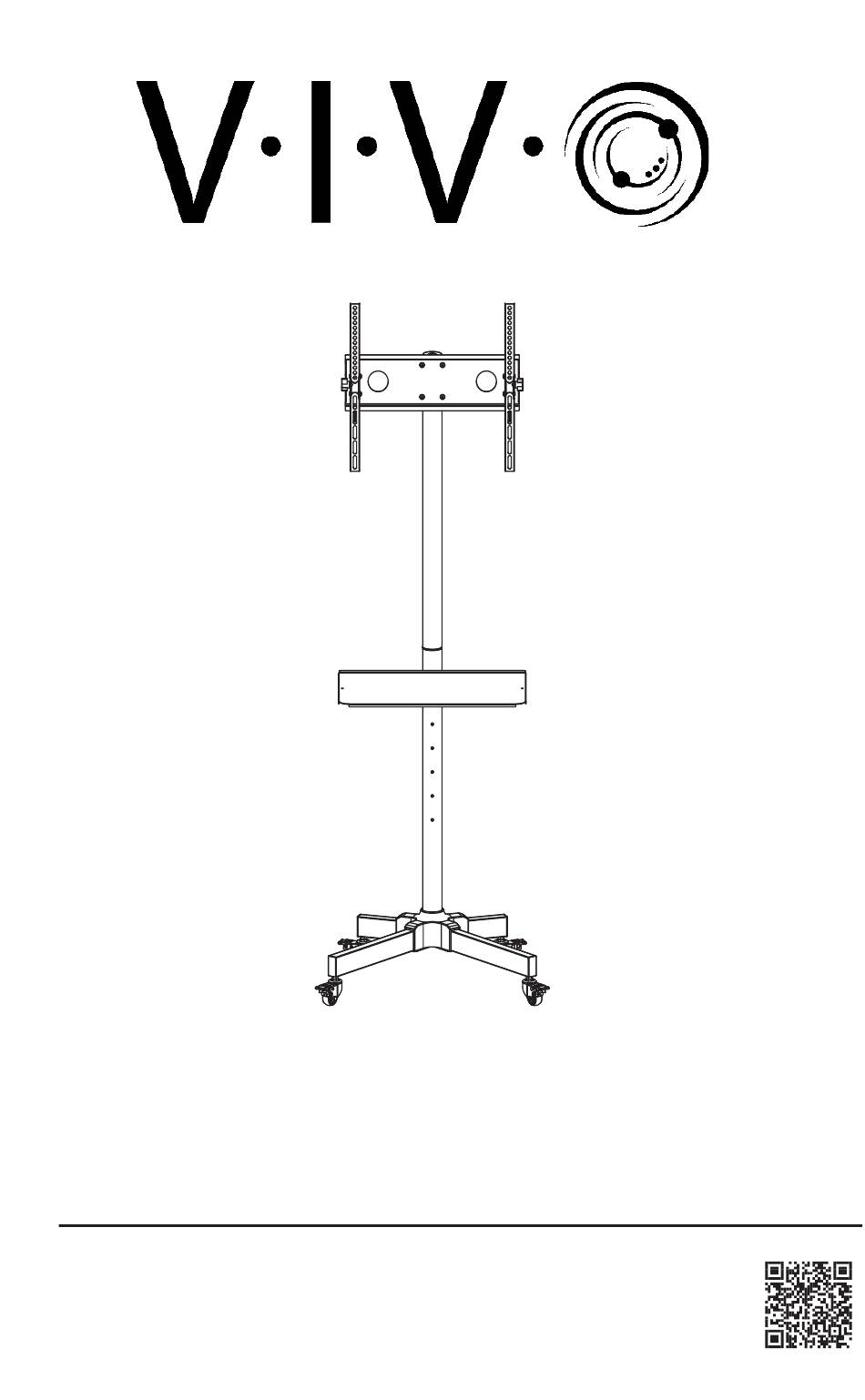

- Page 1 Mobile TV Cart SKU: STAND-TV04M/W Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-tv04m...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) D (x1) Shelf Upper Pole Lower TV Plate Pole E (x2) F (x2) G (x1) H (x1) Long Foot Short Foot VESA Bracket Set Foot Connector I (x2) J (x1) K (x1) L (x4) Shelf Support Shelf Bracket... -
Page 4: Weight Capacity
Package Contents Continued M-A (x4) M-B (x4) M-C (x4) M-D (x4) M4x12mm M4x30mm M6x20mm M6x35mm Screw Screw Screw Screw M-E (x4) M-F (x4) M-G (x4) M-H (x4) M8x20mm M8x35mm M8x50mm M4 Washer Screw Screw Screw M-I (x4) M-J (x4) M-K (x4) M-L (x4) M6 Washer M8 Washer... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1 Thread Casters (L) onto the Long and Short Feet (E,F). Fully tighten the Casters (L) using the Wrench (T-C). To lock, press down the lever on each Caster. STEP 2 Separate Foot Connector (H) into Cover (H1) and Connector (H2). - Page 6 STEP 3 Attach Long and Short Feet (E,F) to Connector (H2) using M6x60mm Screws (S-B), Foot Brackets (O), and 5mm Allen Wrench (T-B) making sure Short Feet (F) are on the back which has a wider gap between connection points. Note: If the caster can’t touch the ground, loosen the lower nut as shown to adjust the caster to...
- Page 7 STEP 4 Thread Pole Connector (M) into Lower Pole (C). Note: If you feel resistance, back the connector out and restart. Once you are certain the connector is going in straight, use additional force to tighten. Warning: Pole Connector threads are very sharp. When connecting, grip the Pole Connector with a cloth or towel to achieve sufficient force when threading into the poles.
- Page 8 STEP 4 - Cont’d Slide Cover (H1) down Lower Pole (C) and onto Connector (H2). Secure using M6x10mm Screws (S-A) and 4mm Allen Wrench (T-A). STEP 5 Attach Shelf Bracket (J) to Lower Pole (C) at desired height using the M6x10mm Screws (S-A) and 4mm Allen Wrench (T-A).
- Page 9 STEP 5 - Cont’d Attach the Shelf Supports (I) to the Shelf Bracket (J) using the M6x10mm Screws (S-A). Partially tighten the screws using the 4mm Allen Wrench (T-A). Do not fully tighten the screws. STEP 6 Place the Shelf (A) over the Shelf Supports (I) where the studs on the bottom of the shelf feed through the holes on the bracket.
- Page 10 STEP 7 Connect the Pole Cover (N) pieces together and press it onto the top of the Upper Pole (B), which does not have any internal threading. Thread the Upper Pole (B) onto the Lower Pole (C).
- Page 11 STEP 8 Hold Pole Bracket Pad (P) onto Pole Bracket (K) and slide onto Upper Pole (B) at desired height. Secure the Pole Bracket Set Screw on the Pole Bracket (K) using 4mm Allen Wrench (T-A). Set Screw Please Note: Pole Bracket Set Screw should face the back of the stand before fully tightening.
- Page 12 STEP 9 Attach TV Plate (D) onto Pole Bracket (K) using M6x10mm Screws (S-A), M6 Washers (S-C), and 4mm Allen Wrench (T-A).
- Page 13 STEP 10 Secure VESA Bracket Set (G) to TV using Screws (M-A through M-G), Washers (M-H through M-J), Spacers (M-K through M-M), and a Phillips screwdriver. M-A through M-G M-H through M-J M-K through M-M Loosen the Security Screws to allow for easier mounting when securing the TV with Brackets to the assembled cart.
-
Page 14: Adjustment Knob
STEP 11 With the help of another individual, attach TV to TV Plate (D) and secure by tightening Security Screws on VESA Bracket Set (G) using a Phillips screwdriver. STEP 12 Loosen the Adjustment Knobs on the side of the VESA Brackets (G) and adjust the tilt angle as desired. - Page 15 STEP 13 Insert Rubber Ring (Q) into Lower Pole (C). Manage cables as needed through the top, side, and bottom of the pole assembly.
-
Page 16: Last Updated
LAST UPDATED: 05/16/24 REV2 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
