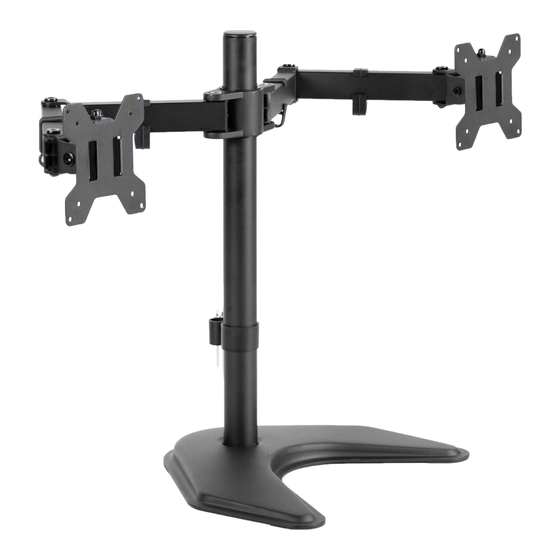

Dual monitor desk stand
Hide thumbs Also See for STAND-V002F:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Dual Monitor Desk Stand
Instruction Manual
SKU: STAND-V002F
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002f
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-V002F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo STAND-V002F

Summary of Contents for Vivo STAND-V002F

  • Page 1 Dual Monitor Desk Stand Instruction Manual SKU: STAND-V002F Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002f GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...

  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

  • Page 3: Tools Needed

    TOOLS NEEDED 22 lbs DO NOT EXCEED WEIGHT CAPACITY. (10kg) Failure to do so may result in serious injury. PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Install the pole (A) to the base (B) using M6x16 Screw (G). Tighten with the 3mm Allen wrench (J).
  • Page 4 STEP 2 Slide Wire Clip (I) and Swivel Arm (C) down onto the Pole (A) and tighten the screw with 6mm Allen Wrench (L). Attach the Pole Cap (E) to the top of the Pole (A). Attach the Wire Clips (H) to the Arms. STEP 3 OPTION A: Flat Back Monitor Attach the VESA plates (D) to the monitors using M4x12 Thumbscrew (M-A).
  • Page 5 STEP 3 (Continued) OPTION B: Curved Back Monitor Attach the VESA plates (D) to the monitors using D6 Spacers (M-C) and M4x30 Screws (M-B). Tighten with a Phillips screwdriver. STEP 4 Slide the monitors onto the heads of swivel arm and install the Security Nuts (F). Make sure the security nuts are installed before you rotate the monitors.
  • Page 6 STEP 5 Tighten the bolt on the side of the tilt joint with the 5mm Allen Wrench (K) to fix the tilt angle. Fix the tilt angle To level the monitors, remove the security nut and turn the bolt with the 3mm Allen Wrench (J) to raise or lower the monitor.
  • Page 7 STEP 6 Use the 5mm Allen Wrench (K) to adjust swivel joints if needed. Manage cables and store the Allen Wrenches (J, K, L) in Wire Clip (I) for future use. STEP 7 CAUTION: To prevent tipping, please be careful not to extend the arms beyond arrow range.
