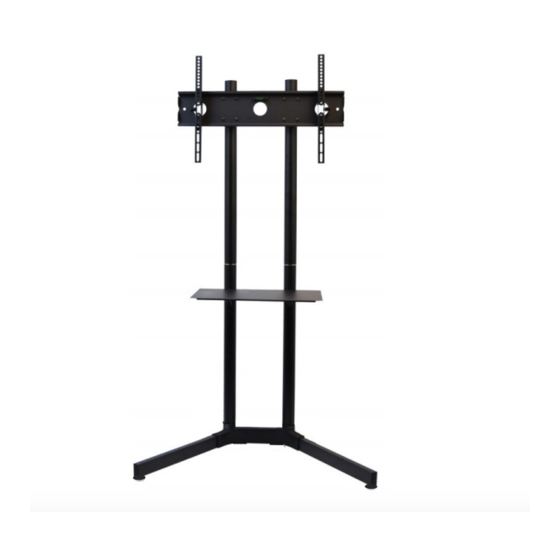

Black TV Floor Stand
Instruction Manual
SKU: STAND-TV03N
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv03n
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-TV03N
Summary of Contents for Vivo STAND-TV03N
- Page 1 Black TV Floor Stand Instruction Manual SKU: STAND-TV03N Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv03n GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 110 lbs 10 lbs Failure to do so may result in serious injury. (49.9 kg) (4.54 kg) CART SHELF Phillips Screwdriver WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED. ASSEMBLY STEPS STEP 1 Attach left and right base (B, C) to the base connector (A) using M6x10 bolts (S-A).
- Page 4 STEP 3 STEP 4 Attach the base poles (D) to the Thread the pole connectors (F) assembled base using M6x10 bolts onto the base poles (D), making (S-A) and 4mm Allen wrench (T-A). sure the connectors thread in straight to avoid cross- threading.
- Page 5 STEP 7 Attach the Mounting plate (I) to the Plate Connectors (K) with M6x10 bolts (S-A) and M6 washers (S-G) using the 4mm Allen wrench (T-A). Note: Loosly insert all bolts before fully tightening. STEP 8 Clip the bubble level (T-B) onto the Mounting Plate (I). Adjust the level of the Mounting Plate (I) by loosening the set screw in the back of the Plate Connector (K) using the 4mm Allen wrench (T-A).
- Page 6 STEP 9 STEP 10 Secure VESA Bracket Set (J) to the back of your television Attach the VESA brackets (J) with using bolts (S-C through S-E) and washers (S-F through TV to the Mounting Plate (I). S-H), depending on the size of the mounting holes on the television.
- Page 7 STEP 13 For cable management, cables can be run through the top of the Pole Covers (N) and down through the poles. Cables may also be inserted through the grommets in back of Base Pole (D). OPTION B OPTION A STEP 15 STEP 14 Attach the Shelf Supports (M) to the Base Poles...
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
