N.B. Some pictures and diagrams in this manual may have buttons and electrical configurations
which differ slightly from the machine you purchased

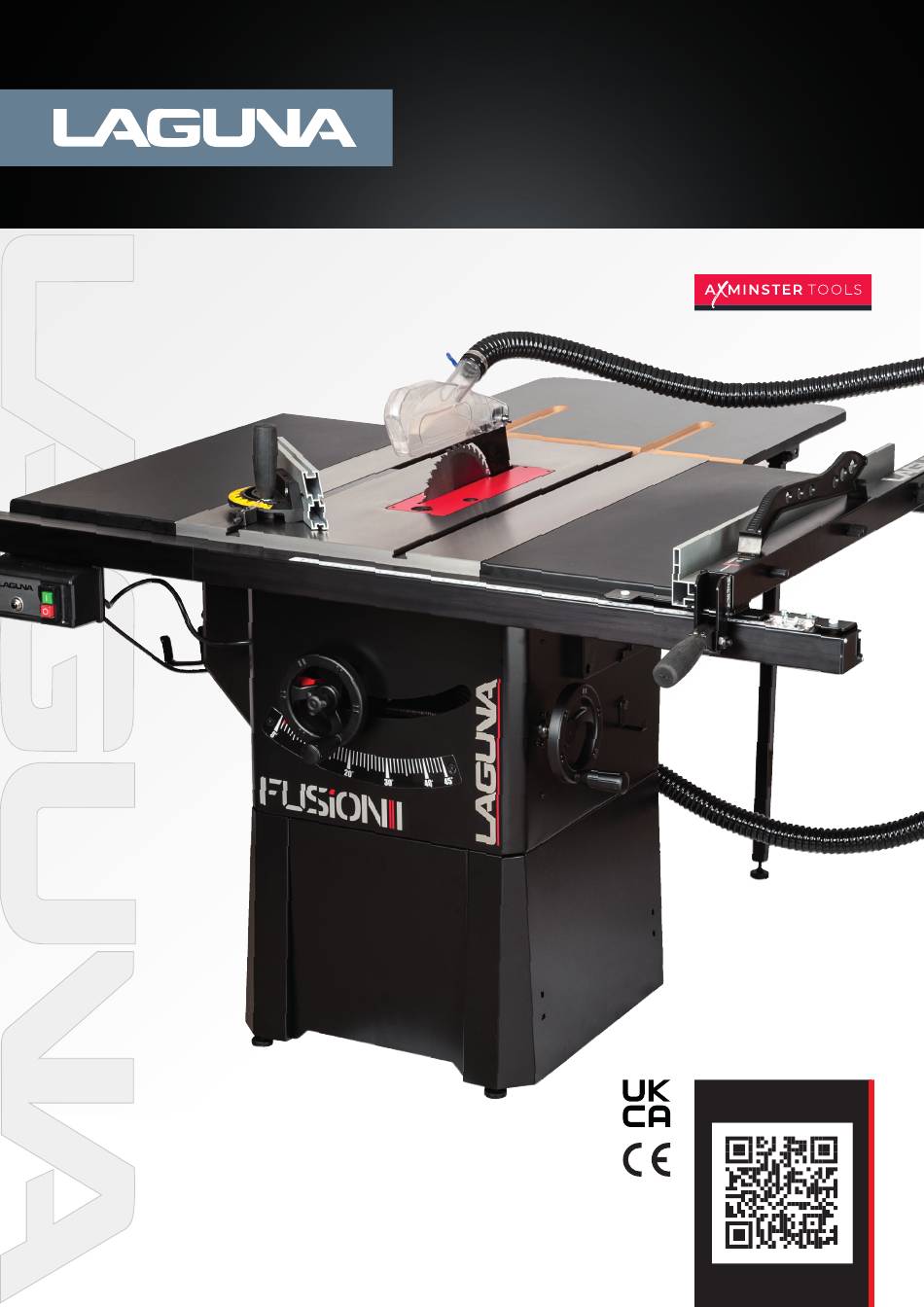

F 1 Fusion
Table Saw 230v
Distributed by
Set Up &
Product
Support
Distributed by
Code: 111785
DIGITAL MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fusion F1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Laguna Tools Fusion F1

Summary of Contents for Laguna Tools Fusion F1

  • Page 1 F 1 Fusion Table Saw 230v Code: 111785 Distributed by DIGITAL MANUAL Set Up & Product Support N.B. Some pictures and diagrams in this manual may have buttons and electrical configurations which differ slightly from the machine you purchased Distributed by...

  • Page 2: Table Of Contents

    Contents Safety Specifications Setup Setup Help Sections Base & Cabinet Wings, Rails, & Fence Installing/Removing the Blade Guard Installing/Removing the Blade Rear Extension Table Table/Blade/Fence Alignment Safety Device Alignment Installing/Removing Throatplate Installing/Removing Safety Accessories Maintenance and Troubleshooting Troubleshooting Wiring Parts List Conformity Certificates Warranty &...

  • Page 3: Safety

    SAFETY The following is a list of safety precautions you must consider when using a Table saw: ALWAYS REMEMBER TO DISCONNECT THE POWER ALWAYS REMEMBER TO READ THROUGH TO THE TABLE SAW WHEN MAKING REPAIRS OR THE MACHINE INSTRUCTIONS SUPPLIED. ADJUSTING BLADES AND GUARDS.

  • Page 4: Specifications

    F1 Table Saw Specifications Fusion F1 Table Saw (MTSF132110150-0130) Maximum Blade Diameter/bore 250 mm / 30 mm Condensed Spec Max Rip Right of Blade w/Included Maximum Blade Diameter ............10 in. (254 mm) Fence & Rails 787.4 mm without sub fence Max Rip Right of Blade w/Included Fence &...
  • Page 5 F1 Table Saw Blade Changing Tool Included Integrated Tool Storage Premium Handles Included 10 x 60T Carbide-Tipped Blade Premium Arbor and Motor Bearings Main Information Table Saw Type ................ Hybrid Cabinet Maximum Blade Diameter ............10 in. (254 mm) Arbor Size .................. 0.62 in. (15.87 mm) Arbor Speed ................
  • Page 6 F1 Table Saw Construction Table ..................Precision-Ground Cast Iron Wings..................Pre-Formed Steel Cabinet ..................Pre-Formed Steel Trunnions .................. Cast Alloy Body Assembly ................. Pre-Formed Steel Fence Assembly ............... Aluminum Extruded Body Rails ................... Steel Miter Guage Construction............Aluminum Body with Steel Bar Guard ..................

  • Page 7: Other Specifications

    F1 Table Saw Power Cord Length ..............6 ft. Power Cord Gauge ..............14 AWG Plug Included ................Yes Included Plug Type ..............5-15 Switch Type ................ON/OFF Push Button Switch w/Large Shut-Off Paddle & Padlock MOTOR Use..................... Main Horsepower ................1.5HP Phase ..................

  • Page 8: Setup

    F1 Table Saw Setup Fusion F1 Table Saw (MTSF132110150-0130) A. Motor Reset B. ON C. OFF D. Arbor Tilt Wheel E. Blade Guard Storage F. Riving Knife Storage G. Miter Gauge Storage H. Blade Change Tool I. Arbor Height Wheel J.
  • Page 9 F1 Table Saw A. Motor Reset B. ON C. OFF D. Arbor Tilt Wheel E. Blade Guard Storage F. Riving Knife Storage G. Miter Gauge Storage H. Blade Change Tool I. Arbor Height Wheel J. Arbor Tilt Gauge K. 4” Dust Outlet L.
  • Page 10 F1 Table Saw A. Motor Reset B. ON C. OFF D. Arbor Tilt Wheel E. Blade Guard Storage F. Riving Knife Storage G. Miter Gauge Storage H. Blade Change Tool I. Arbor Height Wheel J. Arbor Tilt Gauge K. 4” Dust Outlet L.

  • Page 11: Setup Help Sections

    F1 Table Saw Setup Help Sections Receiving It is likely that your machine will be delivered by a third party. Before unboxing, be sure to inspect the packaging and shipping documents supplied by the driver. Ensure that there is no visible damage to the shipment.

  • Page 12: Base & Cabinet

    F1 Table Saw Base and cabinet Setup the base according to the following diagram. If you purchased the wheels, now is a great time to install them. They can go on the left or the right side, but it makes a lot more sense to put them on the left. N.B.
  • Page 13 F1 Table Saw Proceed to bolt the stand onto the cabinet. Careful put the saw back on its feet when finished. N.B. Mobility wheels shown in these pictures are not supplied with this machine Now bolt on the motor cover, dust port, fence storage hangers, and dust port.

  • Page 14: Wings, Rails, & Fence

    F1 Table Saw Wings, Rails, & Fence Attached the wings. Use a flat material to level and then bolt down. Allign the front fence to the blade using the notch on the scale. Use a flat material to level and attatch the fence guides. Make sure to install the switch. F1 Table Saw N.B.

  • Page 15: Installing/Removing The Blade Guard

    Installing/Removing the Blade Guard 3. insert the blade guard 4. position TO LEFT OF CASING 1. Un-plug the tablesaw! 2. Make sure the lock is in open position 3. Insert the blade guard 4. Position the guard insert 5. Lock the blade guard 6.

  • Page 16: Rear Extension Table

    Rear Extension Table The Fusion F1 table saw’s rear extension table supports both the fence and the work piece. In conjunction with the rear rail, the rear extension table provides an extra support table for the length of the wood piece being cut.
  • Page 17 Rear Extension table Attaching Legs to the Rear Extension Table: 1. Flip the rear extension table so that the face is down. 2. Place the rear extension legs between the metal L-brackets on either side of the table. 3. Align the rear extension leg’s bolt holes with bracket’s bolt holes. Ensure that the rear extension leg’s bolt holes are aligned with the last two bolt holes of the metal bracket.

  • Page 18: Safety Device Alignment

    arbor block. Adjust the set screws as needed to correct the out-of-align blade attachment. Do small adjustments • and check. Table/Blade/Fence Alignment Fig T021: Blade/Table alignment with mitre gauge and dial indicator. It is good practice to make sure that the table is always parallel to the blade by checking it often. You can do this with a combination square or with a dial indicator on an appropriate mount.

  • Page 19: Installing/Removing Throatplate

    6. Insert short rail and switch 7. Join front fence supports 8. Align the front rail with blade Insert the short front rail into the first square head Align the pins and join the two front rail pieces and Using the blade notching on the measuring tape, bolt.

  • Page 20: Installing/Removing Safety Accessories

    Installing/Removing Safety Accessories A: Saw blade D: Riving knife B: Accessory insert block E: Blade Guard C: Cam action lever F: Blade Compliant Markings Note on the Riving Knife ⚫ Warning: Since Riving Knife, other than those offered by Laguna, has not been tested with this product, use of such accessories with this tool could be hazardous.

  • Page 21: Maintenance And Troubleshooting

    F1 Table Saw Maintenance & Troubleshooting Never perform and setup, maintenance or adjustment procedures with the machine connected to the power source! If you have any doubt about the described procedure, seek professional assistance. Do not attempt any procedure that you feel is unsafe, or that you do not have the physical capability of achieving. When removing banding, extreme caution must be used as the banding will spring when cut.

  • Page 22: Troubleshooting

    F1 Table Saw The fusion 1 should not come out of square as the trunnion is bolted to the table. If the procedure results in false measurement, please check the blade and arbor nut prior to any further adjustments. Troubleshooting Behavior Possible Causes Solutions...

  • Page 23: Wiring

    F1 Table Saw 13. Motor at fault. 11. Adjust tension of/replace belt. 12. Wire motor correctly. 13. Test/repair/replace. Dust Collection 1. Inadequate suction 1. The optional zero clearance throat 2. No suction plate will supply better dust collection than the standard die cast throat plate. 2.
  • Page 24 F1 Table Saw Wiring Fusion F1 Table Saw (MTSF132110150-0130) In order to change from 110V to 220V, a new 220V switch must be purchased and installed (Part No. VOLTAGE. Before connecting this tool to a power supply (receptacle, outlet, etc.) make sure that 937949-001).

  • Page 25: Parts

    F1 Table Saw Parts Table & Fence Rails...
  • Page 26 F1 Table Saw Fusion F1 Table Saw Parts Table (MTSF132110150-0130) KEY ..... PART NO... DESCRIPTION ..........SPECIFICATION ......... Q'TY 11. Parts list *1 ....937948-001 ..Magnetic Switch Assembly ......120V ............. 1 *1 ....937949-001 ..Magnetic Switch Assembly ......230V ............. 1 Part No.
  • Page 27 UK DECLARATION OF CONFORMITY ‘original’ Product model: F1 Fusion Table Saw Name and address of the manufacturer: Laguna Tools Inc. 2072 Alton Parkway, Irvine, California 92606, USA. Name and address of the UK Authorised Representative: Axminster Tool Centre Ltd, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH, United Kingdom.

  • Page 28: Ec Declaration Of Conformity

    Woodworking machines - Safety - Part 1: Common requirements • EN ISO 19085-9:2020 Woodworking machines - Safety - Part 9: Circular saw benches (with and without sliding table) Responsible for the documentation: Head Product Management, Laguna Tools Inc. Name : Stephen Stoppenbrink / Chief Executive Officer Responsibility...

  • Page 29: Conformity Certificates

    The labour required to install replacement parts is the responsibility of the user. Laguna Tools is not responsible for damage or loss caused by a freight company or other circumstances not in our control.

  • Page 30: Warranty & Support

    Errors and omissions may be current. Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved. 04/01/2019 2072 Alton Parkway Irvine, CA 92606 U.S.A.
  • Page 32 Distributed by For after sales help visit axminstertools.com or call 03332 406406 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately.
