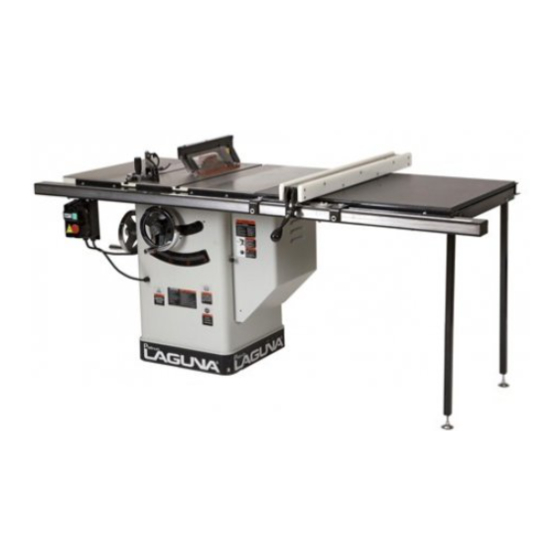

PLATINUM SERIES TABLESAW
W/DOVETAIL MECH LEFT-TILT MANUAL
LAGUNA TOOLS
2072 Alton Parkway
Irvine, California 92606
Ph: 800.234.1976
www.lagunatools.com
© 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLATINUM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Laguna Tools PLATINUM Series

Summary of Contents for Laguna Tools PLATINUM Series

  • Page 1 PLATINUM SERIES TABLESAW W/DOVETAIL MECH LEFT-TILT MANUAL LAGUNA TOOLS 2072 Alton Parkway Irvine, California 92606 Ph: 800.234.1976 www.lagunatools.com © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.

  • Page 3: Table Of Contents

    Table of contents Content Page number Safety Rules Warranty Noise emission Specification sheet Receiving your machine Introduction to your machine Parts of the table Where to locate your machine Unpacking your machine Assembly and setup, Adjusting Before start machine Machine test Maintenance and troubleshooting Exploded view drawings MTS0300-0180...

  • Page 4: Safety Rules

    Safety Rules As with all machinery there are certain hazards involved with the operation and use. Using it with caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. If you have any questions relative to the installation and operation, do not use the equipment until you have contacted your supplying distributor.

  • Page 5: Warranty

    Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machines and accessories sold to be free of manufacturers’...

  • Page 6: Noise Emission

    Noise Emission Specification Sheet 4HP Single Phase 462Lbs...

  • Page 8: Introduction To Your Machine

    Introduction to Table Saws Parts of the Table saw. MTS0300-0180 Table saw...
  • Page 9 Identification. Cabinet Table Extension Table. Trunion Electrical System MTS0300-0180 Table saw...

  • Page 10: Where To Locate Your Machine

    Rip Fence. Dust Collection. Throat Plate. Miter Gauge. Where to Locate your Machine. MTS0300-0180 Table saw...

  • Page 11: Unpacking Your Machine

    Unpacking your Machine. WARNING: EXTREME CAUTION MUST BE USED BECAUSE THE BANDING WILL SPRING AND COULD CAUSE INJURY. Note Note MTS0300-0180 Table saw...
  • Page 12 Note: MTS0300-0180 Table saw...
  • Page 13 What you will receive with the machine. Dado throat plate Tool kit Handle Handle lock screw Miter gauge Extension table Cast iron extension tables Fence Extension table parts MTS0300-0180 Table saw...
  • Page 14 Extension table parts Dust extractor panel Cover Extension table rails Manual Guard MTS0300-0180 Table saw...

  • Page 15: Assembly And Setup, Adjusting

    Assembly and set up Cleaning the machine. Assembling the side cast iron extensions tables. Note MTS0300-0180 Table saw...
  • Page 16 Remove the motor transport bracket. Fitting the motor cover MTS0300-0180 Table saw...
  • Page 17 Fit the dust extraction plate Note:- Fitting the angular movement handle. Note:- MTS0300-0180 Table saw...
  • Page 18 Fitting the extension table. Fitting the fence rails. MTS0300-0180 Table saw...
  • Page 19 Knob Clamp plate Fitting and adjusting the fence. Spacer Vertical adjusting screws MTS0300-0180 Table saw...
  • Page 20 Straight edge Adjusting screws Note:- Adjusting screws MTS0300-0180 Table saw...
  • Page 21 Fitting the electrical box. MTS0300-0180 Table saw...
  • Page 22 MTS0300-0180 Table saw...
  • Page 23 MTS0300-0180 Table saw...
  • Page 24 2.3. 2.4. 2.6. 3.1. 3.2. Note:- Connecting the electrical supply. Note A qualified electrician must carry out installation. MTS0300-0180 Table saw...
  • Page 25 Miter Gauge Tilt Mechanism Stops MTS0300-0180 Table saw...

  • Page 26: Before Start Machine

    Note:- The machine may not be supplied with an electrical plug, as the type of plug will be dependent on the installation. Before starting the machine MTS0300-0180 Table saw...

  • Page 27: Machine Test

    Machine test Before you cut any wood read the safety rules at the front of this manual MTS0300-0180 Table saw...

  • Page 28: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Weekly Maintanince Drive Belt Table Insert Bearings Rust MTS0300-0180 Table saw...
  • Page 29 Tilt Mechanism is Tight Vertical Mechanism is Tight Troubleshooting Poor Cut Saw will not Start MTS0300-0180 Table saw...
  • Page 30 The Machine will not Stop Motor Tries to Start but will not Turn Motor Overheats Squeaking Noise Blade Slows Down During a Cut MTS0300-0180 Table saw...
  • Page 31 Blade Overheats. Machine Vibrates Poor Dust Collection Causes of the Blade Dulling MTS0300-0180 Table saw...

  • Page 32: Exploded View Drawings

    PARTS LIST Table Saw Body Breakdown REF# DESCRIPTION REF# DESCRIPTION CABINET FLAT WASHER CAP SCREW STD TABLE INSERT ELASTIC WASHER SET SCREW FLAT WASHER PAN HEAD SCREW ANGLE SCALE DADO TABLE INSERT INSULATOR SCREW CABINET PLATE SCUTCHEON PAN HEAD SCREW RIVETS FOR NAME OF FLAT WASHER SHIPING STRIP...
  • Page 33 Trunnion Assembly Breakdown MTS0300-0180 Table saw...
  • Page 34 REF# DESCRIPTION REF# DESCRIPTION ANGLE POINTER BRACKET SET SCREW M8X10 COPPER WASHER 19 PIN LOCK SHAFT CAP SCREW M8x25 PINION LOCK WASHER 8MM SET SCREW M6X8 WORM GEAR LOCK SPACER NUT M8 COPPER HOOP HEX BOLT M8X30 LOCK NUT M12X1.5 FLAT WASHER 5 BEARING CAP SCREW M5x12...
  • Page 35 Blade Guard Breakdown REF# DERIPTION REF# DERIPTION ROLL PIN 4×20 PHLP HD SCR M6-1×10 TORSION SPRING HEX BOLT M4-.7×8 LOCK NUT M6-1 GUARD SUPPORT SUPPORTING ARM PHLP HD SCR M6-1×30 PHLP HD SCR M6-1×25 SPACER FLAT WASHER 6MM SPACER TOP GUARD PHLP HD SCR M5-.8×20 PHLP HD SCR M4-.7×6 FLAT WASHER 5MM...
  • Page 36 Miter Gauge Breakdown REF# DESCRIPTION REF# DESCRIPTION MITER STOP PIN BLOCK MITER BAR COMPRESSION SPRING MITER STOP PIN SET SCREW M4-.7*6 CAP SCREW M4-.7*14 CAP SCREW M4-.7*14 POINTER MITER GUAGE MITER RING FLAT WASHER 4MM FLAT HD SCR M5-.8*8 LOCK WASHER 4MM MITER BODY PIVOT PIN PHLP HD SCR M4-.7*8 MITER GUAGE BODY...
  • Page 37 Fence Breakdown REF# DESCRIPTION REF# DESCRIPTION FANCE FACE HEX BOLT M6-1*40 CAP SCREW M6-1*16 LOCK NUT M6-1 GLIDE PAD HEX BOLT M10-1.5*45 FENCE SCALE WINDOW LOCK NUT M10-1.25 SET SCREW M12-1.75*15 CAM FOOT PHLP HD SCR M5-.8*10 MAGNET LOCK WASHER 5MM INDICATOR FENCE LOCK KNOB FENCE BODY...
  • Page 38 30”Rail & Extension Table Breakdown REF# DESCRIPTION REF# DESCRIPTION INSERT FENCE LOCK WASHER 8MM GUIDE TUBE FLAT WASHER 8MM SCALE REAR RAIL FRONT RAIL HEX BOLT M8-1.25*40 CAP SCREW M6-1*16 HEX NUT M8-1.25 LOCK WASHER 6MM TABLE BOARD FLAT WASHER 6MM HEX BOLT M8-1.25*30 HEX BOLT 5/16-18*1-1/2 MTS0300-0180...
  • Page 39 50”Rail & Extension Table Breakdown REF# DESCRIPTION REF# DESCRIPTION INSERT FENCE CAP SCREW M6-1*16 FOOT LOCK WASHER 6MM HEX BOLT M8-1.25×60 FLAT WASHER 6MM CAP SCREW M6-1*16 HEX BOLT 5/16-18*1-1/2 CAP SCREW M8-1.25*20 LOCK WASHER 8MM HEX BOLT M8-1.25*30 FLAT WASHER 8MM GUIDE TUBE HEX BOLT M8-1.25*40 SCALE...
  • Page 40 Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
