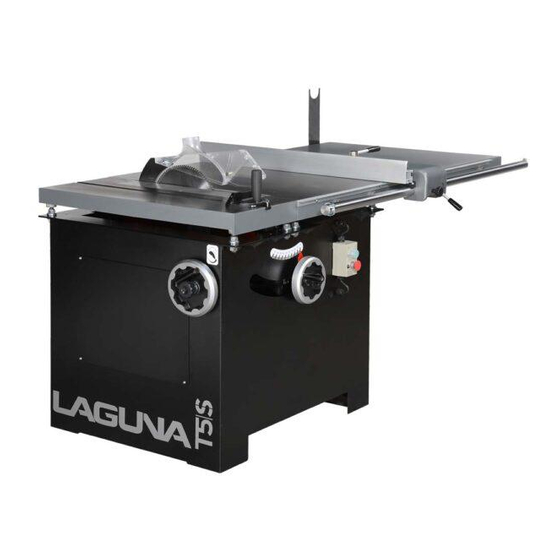

T5S TABLESAW
MTST5S-0135
OPERATING MANUAL
17101 Murphy Avenue. Irvine, California 92614
www.lagunatools.com
800.234.1976

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTST5S-0135 and is the answer not in the manual?

Questions and answers

Related Manuals for Laguna Tools MTST5S-0135

Summary of Contents for Laguna Tools MTST5S-0135

  • Page 1 T5S TABLESAW MTST5S-0135 OPERATING MANUAL 17101 Murphy Avenue. Irvine, California 92614 www.lagunatools.com 800.234.1976...

  • Page 2: Table Of Contents

    Table of Contents INFORMATION MACHINE INFORMATION ASSMBLY & SET UP 3-1. Setup safety……………………………………….………………..……………………....3-2. Unpacking………………….……….……………………………………………………………………. P9 3-3. Extension table…………………………….………………………………………………………….. 3-4. Rip fence…………………………………………………………………………………………………… P11 3-5. Fitting or change saw blade & riving knife…..……………………………………………. P13 3-6. Fitting or changing the scoring blade………………………………………………………… P17 3-7.

  • Page 4: Information P1

    1. INFORMATION 1-2 SAFETY RULES For your own safety read instruction manual before operating 1) Read instruction manual before operating the machine for your safety. Person(s) who operate the machine must be trained, read and understood to use the safety measures, and possess the ability to obey and execute the regulation stated in this manual.
  • Page 5 1. INFORMATION 13) Check damaged parts. Before further use of the machine, a guard or other part that is damaged should be carefully checked to determine what it will operate properly and perform its intended function. Being check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation.
  • Page 6 1. INFORMATION 22) Never open the protective cover or the machine door while the machine is running. 23) When the machine is out of order while running, shut it down and to call servicemen for help as soon as possible. 24) Wear ear protectors (plugs or muffs) during extended periods of operation.
  • Page 7 1. INFORMATION to make up the difference. The use of loose rings or bushes is not permitted. e) Lighting- it is important to provide adequate lighting around the machine. 39) Guide the work piece along the rip fence and through the rotation saw blade, using the push stick if necessary.

  • Page 8: Machine Information

    2. MACHINE INFORMATION 2-1 SPECIFICATIONS ITEM MODEL Sliding table dimension 898x896mm Extension table (rear) 952X896mm Table size 896x1850 mm Round rail Main saw blade (Max.) 305mm Main saw bore 20mm Max. cutting height with blade at 90 90mm Max. cutting height with blade at 45 64mm Main motor power (1ph) 5HP(3.75 Kw)
  • Page 9 2. MACHINE INFORMATION 2-2 MAIN FEATURE RIP FENCE MAIN SWITCH BLADE UP AND DOWN HAND WHEEL BLADE TILTING HAND WHEEL EXTENSION TABLE STANDARD GUARD MITER GAUGE...

  • Page 10: Assmbly & Set Up

    3. ASSEMBLY & SETUP 3-1 SETUP SAFETY 1. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 2. Make certain the machine is properly grounded. 3.

  • Page 11: Unpacking

    3. ASSEMBLY & SETUP 3-2 UNPACKING Please check the packing condition after receiving the items. If they are intact, the operators can start to inventory and assemble the machine parts. Packing List 1. Machine frame unit x1 wooden 2. Assembly parts for miter gauge+ tools + rip fence unit x1 3.

  • Page 12: Extension Table

    3. ASSEMBLY & SETUP 3-3 EXTENSION TABLE The machine extension table prevents the work piece from tipping after cutting and increases the working safety. Follow the steps below to fit the extension table: 1. Remove the screws A (Fig.3-3.1) from the side of the cast iron table, position the extension table over the holes on the cast iron table and secure it with the screws.

  • Page 13: Rip Fence

    3. ASSEMBLY & SETUP 3-4 RIP FENCE 1. Insert the screw rods G (Fig. 3-4.1a) of the round bar into the position A (Fig. 3-4.1) of working table and extension table. Then put the washer and nut at the back side of the table, and fasten it in the right position (there are 4 points for fixing the round bar in this position).
  • Page 14 3. ASSEMBLY & SETUP 5. Check if the bottom edge of the fence plate E (Fig. 3-4.2) rests on the top surface of the table. Note: If it rests on the table, it will scratch the table surface. So, the operator has to readjust the ride height of rip fence unit correctly by adjust screws F (Fig.

  • Page 15: Fitting Or Change Saw Blade & Riving Knife

    3. ASSEMBLY & SETUP 3-5 FITTING OR CHANGE SAW BLADE & RIVING KNIFE SAW BLADE FITTING This machine is designed to accommodate the saw blade with the size up to 305mm, but every time you change blade, the blade appropriate size of riving knife must also to be changed to match the size you installed.
  • Page 16 3. ASSEMBLY & SETUP 5. Insert the T-wrench to hole A (Fig. 3-5.3) to fix the main saw spindle. Then use wrench to loose the nut and washer then fit the saw blade (Fig. 3-5.4) 6. Tighten the washer and screw back to fix the saw blade. (Fig. 3-5.4) and cover the red cover R (Fig.
  • Page 17 3. ASSEMBLY & SETUP DADO FITTING Disconnect the power source. NOTE: Serious personal injury could occur if you connect your machine to the power source before you change blade. Move the blade tilt to 0H and raise the saw blade as high as it can be adjusted. Push the saw guard up and loosen the fixed bolts of insert.
  • Page 18 3. ASSEMBLY & SETUP III. RIVING KNIFE FITTING 1. Fit the riving knife as Fig. 3-5.9 and tighten the suitable screw B. Note: Make sure the riving knife is installed and aligned with the blade. To set the riving knife correctly is very important. 2.
  • Page 19 3. ASSEMBLY & SETUP 3-6 FITTING OR CHANGE SCORING BLADE 1. Disconnect from the power source, or the serious personal injury could occurred. 2. Push the saw guard up and loosen the fixed bolts of insert. Take off the insert plate.(Fig.3-6.1&3-6.2) 3.

  • Page 20: Saw Blade Guard

    3. ASSEMBLY & SETUP 3-7 SAW BLADE GUARD 1. Install the standard saw blade guard by tightening the screw A (Fig. 3-6.1) on the riving knife. Figure 3-7.1...

  • Page 21: Accessories

    3. ASSEMBLY & SETUP 3-8 ACCESSORIES 1. Miter gauge Allows precise oblique cuts between + 45˚ and - 45˚ on the cast iron table.

  • Page 22: Wiring & Test Run

    3. ASSEMBLY & SETUP 3-9 WIRING & TEST RUN I. Wiring 1. Always check to see if the wires in your circuit are capable of handling the amperage draw from your machine, as well as any other machines that could be operating on the same circuit.
  • Page 23 3. ASSEMBLY & SETUP II. Test run 1. Before starting the saw, make sure you have performed the preceding assembly and adjustment instructions, and you have read through the rest of the manual and are familiar with the various functions and safety issues associated this machine.

  • Page 24: Operation

    4. OPERATION 4-1 CONTROL PANEL & HAND WHEEL A. MAIN BLADE ON Button—Start the main saw blade. B. SCORING BLADE ON Button—Start the scoring blade. Note: The main saw blade must be ON for the scoring blade to start. C. The hand wheel for adjust the blade up or down. (Fig. 4-1.1) Note: The saw blade height must exceeds the piece thickness 1 ~ 1.5cm D.

  • Page 25: Scoring Blade Tilting And Lifting

    4. OPERATION 4-2 SCORING BLADE TILTING AND LIFTING I. Scoring blade tilting Insert the T-wrench as Fig. 4-2.1 and turn it with 2 hands. II. Scoring blade lifting Insert the T-wrench as Fig.4-2.2 and turn it with 2 hands. Figure 4-2.1 Figure 4-2.2...

  • Page 26: Rip Fence Cutting

    4. OPERATION 4-3 RIP FENCE CUTTING Notice: Always wear safety glasses, a respirator, and hearing protection. DON’T smoking this machine. when operating 1. Loosen knob C (4-3.1) and lift the lever B (Fig. 4-3.1) then move the rip fence unit A (Fig.

  • Page 27: Miter Gauge Cutting

    4. OPERATION 4-4. MITER GAUGE CUTTING Note: Always wear safety glasses, a respirator, and hearing protection and NO smoking this machine. when operating 1. The miter gauge allows miter to do oblique cuts from + 45˚ to - 45˚. 2. Slide the miter gauge onto the table groove (Fig. 4-4.1). 3.

  • Page 28: Maintenance

    5. MAINTENANCE 5 1. CLEANING & CHECKING Note: Disconnect the machine from the power source. Serious personal injury could occur if you connect your machine to the power source before you maintenance. 1. Before using solvents and cleaning, make sure that these substances do not cause damage to the painted, anodized or galvanized surfaces as well as plastic parts.
  • Page 29 5. MAINTENANCE Cleaning & Checking Schedule Check items Daily Weekly Monthly 3-months 6-months yearly Check emergency stop and indicate lamp whether normal or not? Check the integrity of noise, pressure and ventilation of the machine. Clean the exterior part of the machine Check all the screws from the machine whether tight or not?

  • Page 30: Lubrication

    5. MAINTENANCE 5-2 LUBRICATION Note: Disconnect the machine from the power source. Serious personal injury could occur if you connect your machine to the power source before you maintenance. Lubricate areas indicated below every 6-12 months, depending on frequency of use. 1.

  • Page 31: Replacing Belt

    5. MAINTENANCE 5-3. REPLACING BELT I. REPLACING THE V-BELTS 1. Disconnect the saw from the power source. Note: Serious personal injury could occur if you connect your machine to the power. 2. Make the whole motor unit 4r WLOWHG E\ WXUQLQJ WKH WLOWLQJ ZKHHO )LJ   3.
  • Page 32 5. MAINTENANCE II. REPLACING THE BELT OF SCORING MOTOR 1. Disconnect the saw from the power source. Note: Serious personal injury could occur if you connect your machine to the power. 2. Make the whole motor unit 45° tilted and to the lowest position by turning the adjusting wheels (Fig.
  • Page 33 6. TOOLS 6-1. TOOLS INVENTORY Tool box Push Stick Hose Support Plate Hexagonal Key 4mm Scoring Arbor Wrench T-wrench Riving Knife ψ350...

  • Page 34: Troubleshooting

    7. TROUBLESHOOTING WARNING-Disconnect the machine from the power source before troubleshooting or serious personal injury could occur. Problem Possible cause Troubleshooting The machine cannot be 1. Door in machine frame or saw 1. Close the machine door or cover plate. switched on.
  • Page 35 7. TROUBLESHOOTING Problem Possible cause Troubleshooting Motor stalls (resulting in 1. Short circuit in motor or loose 1. Repair loose or shorted terminals, or worn blown fuses or tripped connections. insulation on motor. circuit). 2. Low voltage. 2. Correct the low voltage conditions. 3.
  • Page 37 MTST5S-0135 ASSEM1.1.5...
  • Page 38 MTST5S-0135 ASSEM1.1.5 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Button Head Screw M6*10 SJ060200 Plate 206584 Adjust Foot M16x100 201150 Machine frame 206582 Hex Nut NH081300 SS080700 Setscrew M8x35 Block 203412 Cap Screw M5*12 SR059300 Lock Washer WS050000 Lock Washer...
  • Page 39 MTST5S-0135 ASSEM1.3.3...
  • Page 40 MTST5S-0135 ASSEM1.3.3 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Set Screw M10*20 SS100400 AH206306 Hex Nut NH101700 AH206306 Ruler Metric System LM206306 Standard Ruler LM001042 Option Metric/ Imperial System Cap Screw M10*25 SR100500 AH206306 Table 206362 207078 Ext. Plate...
  • Page 41 MTST5S-0135 ASSEM2.6 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Switch Box(ASM.) AB994887 Switch Box 101 994887 Switch Button-ON 102 994855 Dust Cove 103 994855A Emergency Stop Button R2PNR4-1B-R 104 994808 Cable Gland PG11 105 709411 AB206640 Operate Housing...
  • Page 42 MTS5S-0135 ASSEM3.1.1...
  • Page 43 MTS5S-0135 ASSEM3.1.1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Cap Screw M6*12 SR069300 Lock Washer WS060000 Cap Screw M5*16 SR059400 Fix Plate 206337 Washer M5*10 WF051010 Lock Nut NL050800 SR059300 Cap Screw M5*12 Lock Washer WS050000 SF089300 Hex Head Bolt(+)/W M8x12 Channel Base 206301...
  • Page 44 MTST5S-0135 ASSEM3.3...
  • Page 45 MTST5S-0135 ASSEM3.3 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Belt 3VX-265 208044 50Hz/S Belt 3VX-250 206399 60Hz/S Setscrew M8×10 SS080200 Belt Pulley 50Hz 208043 CE/S Belt Pulley 60Hz 208042 CSA/S Shaft 201333 206396 Main Motor Plate Washer M13×ψ22 WF132225...
  • Page 46 MTST5S-0135 ASSEM3.4.2...
  • Page 47 MTST5S-0135 ASSEM3.4.2 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Gip Plate 206304 Button Head Screw M10×25 SJ100500 Spring Washer WS100000 5x5x20 KD050520 TW-1-12UNF(Left tooth) 206637 Arbor Flange 206636 ψ25.4 WS080000 Lock Washer Washer M8×ψ30 WF083030 Bushing 200964 Shaft 201205 Button Head Screw M8×20...
  • Page 48 MTST5S-0135 ASSEM 4.1...
  • Page 49 MTST5S-0135 ASSEM 4.1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Lock Knob 100203 Washer 204263 ψ10×ψ20 Washer WF102730 Standard M10×ψ27(For Plastic) Washer WF104030 Option M10×ψ40(For Cast Iron) 8" (Plastic) 206434A hand wheel Standard Without handle 8" (Cast Iron) hand wheel...
  • Page 50 MTST5S-0135 ASSEM5.2...
  • Page 51 MTST5S-0135 ASSEM5.2 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Lock Knob 100203 Washer 204263 ψ10×ψ20 Washer M10×ψ30 WF103030 Hand Wheel 204289B Standard Without Handle (Plastic) Hand Wheel 204176A Option Cast Iron (With handle) Bushing 200855 206586 Finger Guide Screw...
  • Page 52 MTST5S-0135 ASSEM6.2...
  • Page 53 MTST5S-0135 ASSEM6.2 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Pulley ASM AB206315-1 Hex Head Bolt M12×20 101 SH120440 Flange 102 206320 Shaft 103 206321 Ball Bearing 6202LLB(Black) 104 BB620204 Int. Retaining Ring 105 RS150000 106 WW263403 Wave Washer ψ26*ψ34 t=0.3 ( 6202 ) Int.
  • Page 54 MTST5S-0135 ASSEM6.4...
  • Page 55 MTST5S-0135 ASSEM6.4 PARTS NAME SIZE Q`TY ITEM PART NO NOTE Cap Screw M12*100 SR122000 Lock Washer WS120000 Pully 206314 50Hz Pully 206336 60Hz Belt 140J7 LJ014070 60Hz LJ015070 Belt 150J7 50Hz Shaft 206313 Button Head Screw M8*20 SJ080400 Lock Washer...
  • Page 56 MTST5S-0135 ASSEM10.1...
  • Page 57 MTST5S-0135 ASSEM10.1 PARTS NAME SIZE Q`TY ITEM PART NO NOTE AB206422 Rip Fence Housing Assem. Counter Sunk Screw M6*16 101 SI069400 Fixed Plate 102 206433 Shafts 103 203193 Lock Nut 104 NL081000 Plate 105 200875 106 SH069400 Hex Head Bolt...
  • Page 58 MTST5S-0135 ASSEM12.1 ITEM PART NO PARTS NAME SIZE Q`TY NOTE Hood Assembly AB205075 Assembly Hood 101 205075 Screw M3×16 102 ST029404 Screw M3×12 103 ST029304 Hood 104 205076 Screw M5×10 105 203110 Shaft 106 205124 Lock Nut NL101700 Cap Screw M10×25...
  • Page 59 MTST5S-0135 ASSEM AB130376 PARTS NAME SIZE Q`TY ITEM PART NO NOTE 200152 MITER GAUGE BOLT SP050400 PAN HEAD BOLT M5x20 NH050800 200086 STEEL PIN 130376 GUIDE PIECE 200156 GUIDE PIECE SN069200 M6x8 COUNTERSUNKS HEAD BOLT 200158 LOCATING PIECE PS030600 SPRING PIN ψ3x6...
