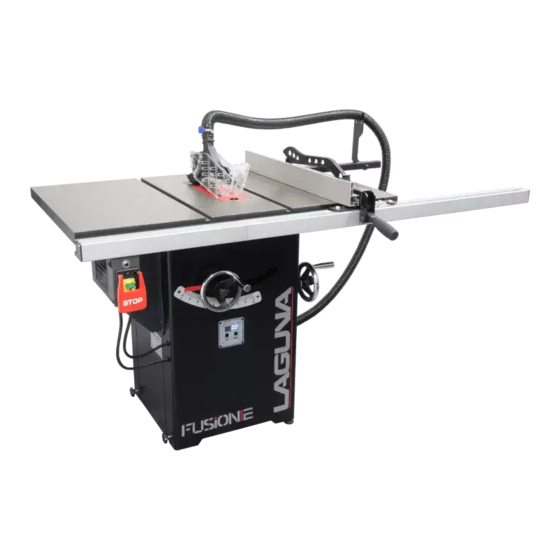

Fusion 2 Tablesaw
MTSF236110175-0130
MTSF252110175-0130
© 10/2017, Laguna Tools, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fusion 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Laguna Tools Fusion 2

Summary of Contents for Laguna Tools Fusion 2

  • Page 1 Fusion 2 Tablesaw MTSF236110175-0130 DealerSales@LagunaTools.com MTSF252110175-0130 +1 (800) 861 4637 © 10/2017, Laguna Tools, Inc.
  • Page 2 Fusion 2 Tablesaw MTSF2 © 10/2017, Laguna Tools, Inc. Max Blade Diameter 10" Arbor Diameter 5/8" Arbor Speed 4500 RPM Max Dado Diameter 10" Max Dado Width 13/16" Rip Capacity, with Fence 36" Right, 17" Left (52” Option) Maximum Depth of Cut @ 90°...
  • Page 3 Setup & maintenancE Manual MTSF236110175-0130 MTSF252110175-0130 MTSF3362203-0130 MTSF3522203-0130 2072 Alton Parkway Irvine, CA 92606 U.S.A. www.lagunatools.com - dealersales@lagunatools.com p. 1-800.234.1976 - f. 1-949.474.0150 Fusion Tablesaw @lagunatools © 10/2017, Laguna Tools, Inc.

  • Page 4: Dear Woodworker

    Laguna Tools, Inc. to be a manufacturer’s defect. We require that the defective item/part be returned to Laguna Tools with the complaint. Any machines returned to Laguna Tools must be returned with packaging in the same manner in which it was received. If a part or blade is being returned it must have adequate packaging to ensure no damage is received during shipping.

  • Page 5: Table Of Contents

    Table of Contents Dear Woodworker ........................................2 Registration ..........................................2 Warranty ..........................................2 Fusion 3 Tablesaw Specifiactions ................................... 4 Fusion 2 Tablesaw Specifiactions ................................... 6 General safety ......................................... 8 Tool Overview ........................................10 Controls..........................................10 Receiving & Unpacking ......................................11 Inventory ...........................................

  • Page 6: Fusion 3 Tablesaw Specifiactions

    Maximum Depth of Cut @ 45° 2 1/8" Blade Tilt 45° Left, 3° Arbor Adjustment Table Dimension, with Extensions 27"L x 44"W x 1-1/2"th. (cm: 68.58, 111.76, 3.81) (LxWxth.) Extension Wing Dimension (LxW) 27"L x 12"W (cm: 68.58, 30.48) © 10/2017, Laguna Tools, Inc.
  • Page 7 Professional Square Zero Clearance Throat Plate Dimensions (LxWxth.) 14-5/8"L x 4-1/16"W x 1/2"th. (cm: 37.15, 10.32, 1.27) Floor to Table Height 34-3/4" (88.27cm) warning: Read the entire manual before plugging in your new Laguna Tools machine. © 10/2017, Laguna Tools, Inc.

  • Page 8: Fusion 2 Tablesaw Specifiactions

    Fusion Tablesaw Fusion 2 Tablesaw Specifiactions Advertised Name Fusion 2 Tablesaw Short Name BASE SKU(S) MTSF236110175-0130 SHORT SKU MTSF2 Stock Model MTSF236110175-0130 w/ 52" Rip MTSF252110175-0130 Professional Square Zero Clearance Throat Plate (pre-installed) 10" 40T Blade (pre-installed) Riving Knife (pre-installed)
  • Page 9 Professional Square Zero Clearance Throat Plate Dimensions (LxWxth.) 14-5/8"L x 4-1/16"W x 1/2"th. (cm: 37.15, 10.32, 1.27) Floor to Table Height 34-3/4" (88.27cm) warning: Read the entire manual before plugging in your new Laguna Tools machine. © 10/2017, Laguna Tools, Inc.

  • Page 10: General Safety

    Tie up or wear protective coverings to contain long hair. warning: All repairs should be done by trained repairmen. Contact Laguna Tools or a Competent repair service. USE SAFTEY GOGGLES. Some machines require additional face shield than offered by safety goggles alone. Know your machine and the proper PPE to use.
  • Page 11 USE ONLY 3 WIRE EXTENSION CHORDS. Some extension cords only have two wires, which does not allow for groundings. ONLY USE ADAPTER WHEN ABOSLUTLY NECESSARY. The following diagram should only serve as guidelines, consult a qualified electrician if in doubt. © 10/2017, Laguna Tools, Inc.

  • Page 12: Tool Overview

    Tool Overview Your new Laguna Tools machine is comprised of different components to make a long lasting and precise piece of machinery that will help you with your next project. Understanding your new machine and the comprising components will make you a better craftsman.

  • Page 13: Receiving & Unpacking

    Fusion Tablesaw Receiving & Unpacking caution: Your new Laguna tools machine is heavy. Use 2 warning: To avoided set-up Problems and to prevent persons when lifting the tool into position and moving the tool potential damage to the machine, read through the entire into position.

  • Page 14: Setup

    Apply downward force at both arrow nuts. A couple revolutions of the bolt will be tight enough. Prepare to indicators and simultaneously tighten the bolts with the supplied insert the (2) aluminum front rail sections. Allen key and wrench. © 10/2017, Laguna Tools, Inc.

  • Page 15: Installing/ Removing The Throat Plate

    WARNING: MAKE SURE SAW IS UNPLUGED. To remove or section to adjust the fence. install the throat plate, first set it to the unlock position. Then, insert the rear end first and tilt the other end down into position. © 10/2017, Laguna Tools, Inc.

  • Page 16: Installing/ Removing Riving Knife

    Make sure to inspect the riving knife frequently. Do not operate with a bent or knicked riving knife. Replacement riving caution: knifes can be purchased from Laguna tools. Only use the riving knife with sawblades satisfying the stated conditions on the side of the knife.

  • Page 17: Installing/Removing The Blade

    Use the supplied blade changing tool (located in tool holder upon When re-installing the blade, make sure the flange is on as shown shipment) to release the 5/8” arbor nut. Counter Clockwise to above. loosen. © 10/2017, Laguna Tools, Inc.

  • Page 18: Adjustments

    Fusion Tablesaw Adjustments Your Laguna Tools machine come fully adjusted form the factory, but it is good practice to double check these adjustments and make sure the tool is in safe operating condition. warning: Disconnect the saw from the power source when making any adjustments or performing any maintenance.
  • Page 19 Use the included Allen Key to adjust the depth of each nylon fence that is un-parallel to the blade will warning: support. Do small increments and check. greatly increase the chance of kickback and can result in damage or injury. © 10/2017, Laguna Tools, Inc.

  • Page 20: Throat Plate Adjustments

    Adjusting these limits should only be done to set the tilt limits to 0 and 45 degrees. © 10/2017, Laguna Tools, Inc.
  • Page 21 #2 Philips head driver. There are 4 screws in total Locate the tilt adjustment screw. Drive the screw into the threaded holding on the tool storage box. die to expand the tilt range slightly. © 10/2017, Laguna Tools, Inc.

  • Page 22: Trouble Shooting

    6. Tighten mounting bolts; relocate/shim machine. 8. Arbor bearings at fault. 7. Retighten/replace arbor pulley. 9. Motor bearings at fault. 8. Replace arbor housing bearings; replace arbor. 9. Test by rotating shaft; grinding/loose shaft requires bearing replacement. © 10/2017, Laguna Tools, Inc.

  • Page 23: Wiring Diagram: Fusion F2 110V/220V

    Wiring Diagram: Fusion F2 110V/220V Information: The Fusion 2 tablesaw Comes wires for 110\115V from the factory with a 110V Switch assembly. In order to Wire this saw to A 220v power supply, a new 220v switch assembly is required. Please call Laguna tools customer service to order parts: 1-800-234-1979.

  • Page 24: Wiring Diagram: Fusion F3 220V

    Information: The Fusion 3 tablesaw Comes wires for a 230V power supply with a 230V industrial strength contactor switch. This saw will not operate on 110V, and replacements parts are not available to make this possible. © 10/2017, Laguna Tools, Inc.

  • Page 25: Parts Diagrams

    Fusion Tablesaw Parts Diagrams Fence Assembly © 10/2017, Laguna Tools, Inc.

  • Page 26: Mitre Gauge, Blade Guard

    Fusion Tablesaw Mitre Gauge, Blade Guard © 10/2017, Laguna Tools, Inc.

  • Page 27: Motor And Trunnion

    Fusion Tablesaw Motor and Trunnion © 10/2017, Laguna Tools, Inc.

  • Page 28: Cabinet

    Fusion Tablesaw Cabinet © 10/2017, Laguna Tools, Inc.

  • Page 29: F3 Cabinet

    Fusion Tablesaw F3 Cabinet © 10/2017, Laguna Tools, Inc.

  • Page 30: Parts List

    PTSF236110175-0130-19 Anit-loose Nut M10*1.5P(17B*12H) PTSF236110175-0130-20 Anit-loose Nut M8*1.25P(13B*9H) PTSF236110175-0130-21 Retaining Ring STW-14 PTSF236110175-0130-22 Bracket for Riving Knife PTSF236110175-0130-23 Cap Screw M8*1.25P*16 PTSF236110175-0130-24 Spring PTSF236110175-0130-25 Bushing PTSF236110175-0130-26 Block PTSF236110175-0130-27 Riving Knife PTSF236110175-0130-28 SET Lock screw M6*1.0P*8 © 10/2017, Laguna Tools, Inc.
  • Page 31 PTSF236110175-0130-74 Spring Washer 8.2*15.4 PTSF236110175-0130-75 Flat Washer 10*20*1.5t PTSF236110175-0130-76 Bushing PTSF236110175-0130-77 SET Screw M5*0.8P*5 PTSF236110175-0130-78 Plate PTSF236110175-0130-79 Spring Pin 6*16 PTSF236110175-0130-80 Pointer Round Head Lock Screw PTSF236110175-0130-81 M5*0.8P*12/5*10.5*1.0t w/Washer PTSF236110175-0130-82 Shaft PTSF236110175-0130-83 Bushing PTSF236110175-0130-84 Handwheel © 10/2017, Laguna Tools, Inc.
  • Page 32 CAP Screw w/ Spring 127.1 PTSF236110175-0130-127.1 M8*1.25P*20/8.2*15.4 Washer 127.2 PTSF236110175-0130-127.2 Flat Washer 8.5*16*2.0t 127.3 PTSF236110175-0130-127.3 Hex Nut M8*1.25P(13B*6.5H) 127.4 PTSF236110175-0130-127.4 Square Bolt M8*1.25P*20 127.5 PTSF236110175-0130-127.5 Rear rail 127.6 PTSF236110175-0130-127.6 Front Rail Assembly 36" PTSF236110175-0130-130 Push Sticks © 10/2017, Laguna Tools, Inc.
  • Page 33 Power Cord SJT14AWG*3C*2550mm 1.7.1 PTSF236110175-0130-1.7.1 Front Rail 1.7.2 PTSF236110175-0130-1.7.2 Scale 52" 1.7.3 PTSF236110175-0130-1.7.3 End Cap - Left 1.7.4 PTSF236110175-0130-1.7.4 End Cap - Right 1.7.5 PTSF236110175-0130-1.7.5 Round Head Screw M4*1.59P*12 52" Rail with Right Table PTSF236110175-0130-OP Assy © 10/2017, Laguna Tools, Inc.
  • Page 34 Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. © 2017, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
  • Page 35 The new Laguna F2 and F3 Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, MTSF236110175-0130 the new fusion line will not only impress but exceed the expectations you have MTSF252110175-0130 come to expect from Laguna.
  • Page 36 Designed in california 2072 Alton Parkway Irvine, CA 92606 U.S.A. www.lagunatools.com - dealersales@lagunatools.com p. 1-800.234.1976 - f. 1-949.474.0150...
