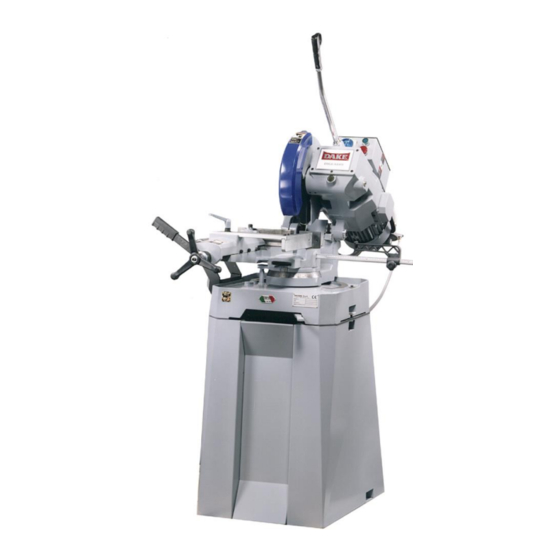

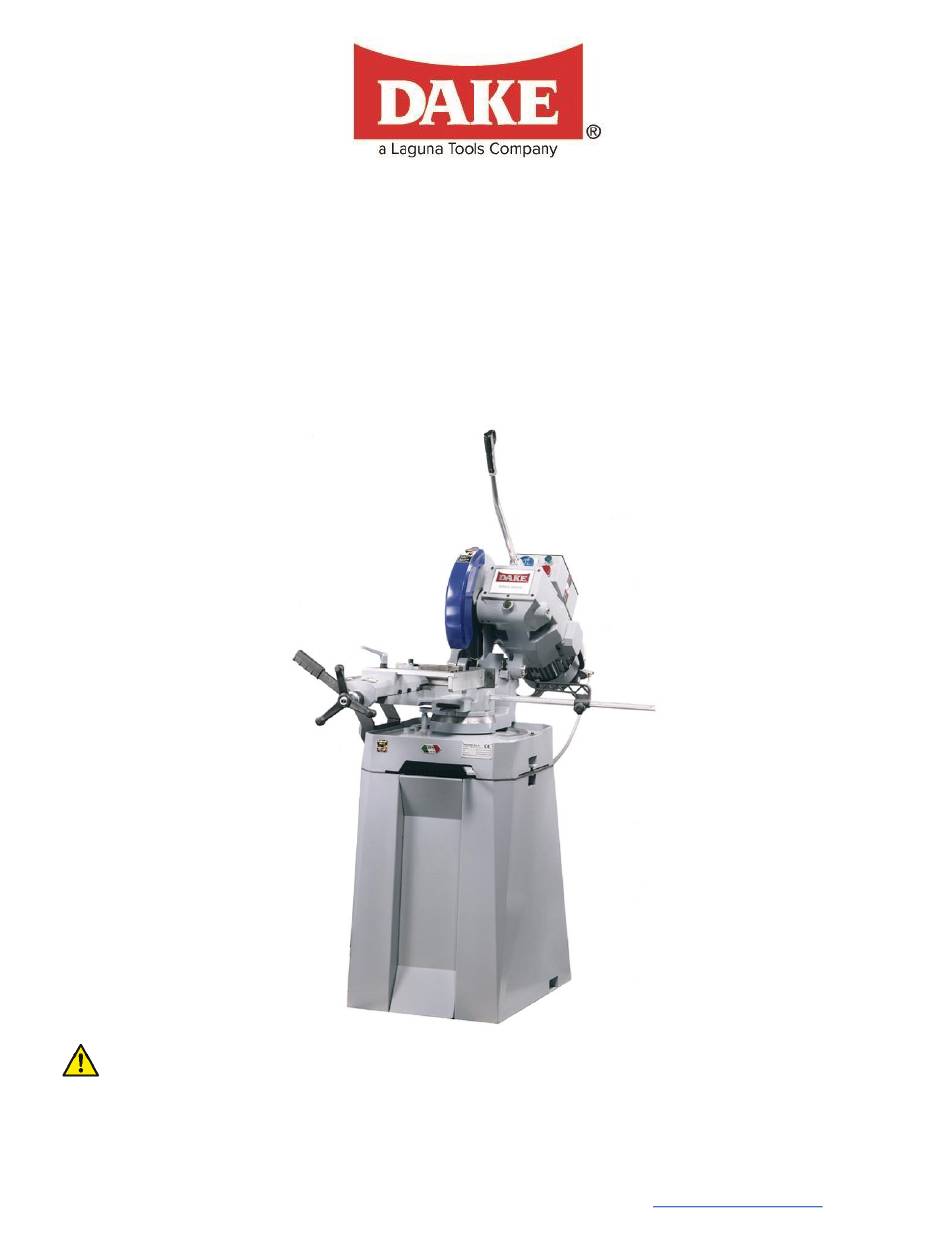

DAKE MANUAL COLD SAW
Technics 350 CE
(Frequency driven motor only)
INSTRUCTIONAL MANUAL
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
www.dakecorp.com
Phone: 800.937.3253
1809 Industrial Park Dr.
Grand Haven, MI 49417
Advertisement
Table of Contents
Related Manuals for Laguna Tools Dake Technics 350 CE
Summary of Contents for Laguna Tools Dake Technics 350 CE
- Page 1 DAKE MANUAL COLD SAW Technics 350 CE (Frequency driven motor only) INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation www.dakecorp.com Phone: 800.937.3253 1809 Industrial Park Dr.
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 SPECIFICATIONS ....................5 SAFETY ........................ 6 SET UP ......................... 9 TRANSPORTING AND ANCHORING ............9 ELECTRICAL CONNECTION .............. -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. -
Page 6: Specifications
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Maximum feed vise Technics 350CE Model opening 974029-2 Slotting Number 45° left/right; 220V Maximum angle Voltage 90° right for slots Weight 650 lbs Phase 40” 3.5 HP Work Height Horsepower 79”... -
Page 7: Safety
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com SAFETY This is the safety alert symbol. When you see this symbol on your machine be alert to the potential for personal injury. Carefully read all safety messages in these instructions and on your machine safety signs. - Page 8 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Additional Safety Warnings: • This machine is intended to be operated by one person. This person should be conscious of the machine movement not only for themselves but also for persons on the immediate area of the machine.
- Page 9 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Locations of shields: • Grey metal shield screwed onto the blade head. (REF. A) • Self-regulating mobile blue plastic shield fitted coaxially with the fixed shield. (REF. B) • Black plastic cover, covering the electrical supply box. picture may vary by model* Electrical Equipment: According to European Standard “CENELEC EN 60 204-1”...
-
Page 10: Set Up
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com SET UP TRANSPORTING AND ANCHORING When you receive your machine, you will need a forklift for transporting. When lifting the machine, a sling or original shipping pallet needs to be used. Position the machine on a firm cement floor, keeping a minimum distance from 2-1/2 feet from any wall. -
Page 11: Assembling The Machine
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com ASSEMBLING THE MACHINE Fit the components supplied as indicated in the above diagram: Part 1: Screw the trigger handle into the head (main casting) and use the provided nut to tighten it firmly in place as shown in the picture. -
Page 12: Operation
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com OPERATION Use recommendations: • This machine has been designed to cut metal building materials with different shapes, profiles used in workshops and mechanical structural work. • Only one operator is needed to use the machine. •... -
Page 13: Starting And Cutting
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com STARTING AND CUTTING 1. Ensure that the machine is not in emergency stop conditions; if it is, release the red emergency stop button (1). 2. Turn the start switch to the on position (2), and the power indicator light will light up green. -
Page 14: Maintenance
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com MAINTENANCE Before performing any maintenance ensure that the machine is LOCKED OUT and unplugged. Special maintenance operations must be carried out by skilled personnel. However, we advise contacting DAKE. The term special maintenance also covers resetting of protection/safety equipment and devices. -
Page 15: Changing The Blade
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com CHANGING THE BLADE WARNING! Before changing the blade, electrical supply must be LOCKED OUT! Always use gloves while handling loose blades. 1. Release the blade guard and push it back as far as it allows. 2. -
Page 16: Changing Coolant Pump
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com CHANGING COOLANT PUMP 1. Take the pipes of the lubricating system off. 2. Remove fastening screws and replace pump, being careful to keep the driving system centered on the drive shaft bearing. CHANGING THE GEAR BOX OIL 80/90 Synthetic Gear Oil, we recommend MOBIL SHC635. -
Page 17: Troubleshooting
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Too fast of an advance on the Decrease the level of material downward feed Change the blade speed or Wrong cutting speed the diameter of the blade Use the blade calculator to Wrong tooth pitch determine the correct pitch or... - Page 18 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com SYMPTOM CAUSE SOLUTION Too fast of an advance on the Decrease the level of material downward feed Cutting speed too slow Increase blade speed Use the blade calculator to Wrong blade determine the correct pitch or consult your blade provider...
- Page 19 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com SYMPTOM CAUSE SOLUTION Bad fuses Check and/or change fuses Faulty power supply Check incoming power Short circuit Test for short and repair Bad light bulb Replace light bulb Speed switch is off Turn switch to desired speed Emergency switch is Pull switch out and make sure...
-
Page 20: Electrical Diagrams
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com ELECTRICAL DIAGRAMS 974029-2 REV022023... - Page 21 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com 974029-2 REV022023...
-
Page 22: Exploded View
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEW *Exploded view is only for 350CE Cold Saw with Frequency Drive Motor* 974029-2 REV022023... - Page 23 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com 350CE Frequency Drive Gearbox: Part Description Part Number Part Description Part Number Oil Seal 86000000 Blade Shaft 302965 O-Ring 302920 Drive Gear 302966 Ring Nut 81700025 Bushing 302967 974029-2 REV022023...
-
Page 24: Parts List
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com PARTS LIST *Parts list is only for 350CE Cold Saw with Frequency Drive Motor* Item Part Name Part No. Machine Bed AGB81040 Revolving Arm AGB90025 Revolving Arm Pin AFB90029 Revolving Arm Locking Bushing AFB80012 Revolving Arm Locking Lever... - Page 25 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Item Part Name Part No. Burr-free Transverse Plate 302963 Burr-free Plate 302963 Filter Screen AFB80044 Socket Cap Screw 80625 (M6 x 12mm) Bar Stop Rod AFB80024 Bar Stop Rod Scale AHB80026 Bar Stop Block AG660047...
- Page 26 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Item Part Name Part No. Handgrip with Switch 44600001 Blade Shaft Flange AF710163 Screw M12 x 35mm left thread S1110136 Fixed Blade Guard AGB90085 Dowel M8 x 30mm 81132081 Front Head Cover AGB90002 Coolant Distributor...
-
Page 27: Ordering Information
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Item Part Name Part No. Fan Cover 303775 Bearing 609 84101016 Retaining Ring SEEGER Ø9 303289 Pump Connection Box AG190044 Pump Gasket 303236 Socket Cap Screw (M4 x 12mm) 81701 Coolant Pump 88141000... -
Page 28: Deactivating The Machine
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com DEACTIVATING THE MACHINE If the machine is not going to be in use for a long period of time it is recommended that you do the following: 1. Unplug machine. 2.
