DAKE MANUAL COLD SAW

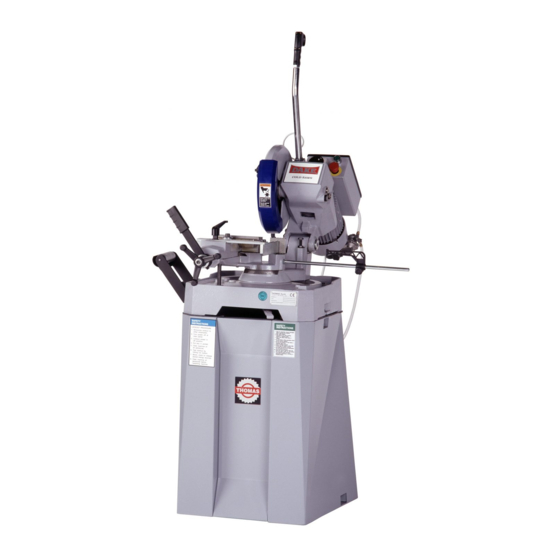

SUPER CUT 315
INSTRUCTIONAL MANUAL
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
www.dakecorp.com
Phone: 800.937.3253
1809 Industrial Park Dr.
Grand Haven, MI 49417
Advertisement
Table of Contents
Related Manuals for Laguna Tools DAKE SUPER CUT 315
Summary of Contents for Laguna Tools DAKE SUPER CUT 315
- Page 1 DAKE MANUAL COLD SAW SUPER CUT 315 INSTRUCTIONAL MANUAL Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation www.dakecorp.com Phone: 800.937.3253 1809 Industrial Park Dr. Grand Haven, MI 49417...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 SPECIFICATIONS ....................5 SAFETY ........................ 6 SET UP ......................... 8 TRANSPORTING AND ANCHORING ............8 ELECTRICAL CONNECTION .............. -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. -
Page 6: Specifications
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Maximum feed vise Super Cut 315 Model opening 9743151PH-1, Slotting Number 974315-2 220V 3 Phase, 120V Maximum angle 45° right/ left Voltage 1 Phase 3 Phase/1 Phase Weight 450 lbs Phase Work Height... -
Page 7: Safety
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com SAFETY Carefully read all safety messages in these instructions and on your machine safety signs. Keep safety labels in good condition. Replace missing or damaged labels. Employer is responsible to perform a hazard/PPE assessment before work activity. Label Part No. - Page 8 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com • All internal and/or internal operation, maintenance or repairs, must be performed in a well-lit area or where there is sufficient light from extra sources so as to avoid the risk id even light accidents.
-
Page 9: Set Up
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Electrical Equipment: According to European Standard “CENELEC EN 60 204-1” which simulates modification, publication (IED 204-1) • The electrical equipment ensures protection against electric shock as result of direct or indirect contact. -
Page 10: Assembling The Machine
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com ASSEMBLING THE MACHINE *picture may vary by model* Fit the components supplied as indicated in the above diagram: Part 1: Screw the trigger handle into the head (main casting) and use the provided nut to tighten it firmly in place as shown in the picture. -
Page 11: Operation
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com OPERATION Use recommendations: • This machine has been designed to cut metal building materials with different shapes, profiles used in workshops and mechanical structural work. • Only one operator is needed to use the machine. •... -
Page 12: Starting And Cutting
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com STARTING AND CUTTING 1. Ensure that the machine is not in emergency stop conditions; if it is, release the red emergency stop button (1). 2. Select cutting speed if applicable. a. -
Page 13: Maintenance
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com MAINTENANCE Before performing any maintenance ensure that the machine is LOCKED OUT and unplugged. Special maintenance operations must be carried out by skilled personnel. However, we advise contacting DAKE. The term special maintenance also covers resetting of protection/safety equipment and devices. -
Page 14: Changing The Blade
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com CHANGING THE BLADE Always use gloves while handling loose blades. *picture may vary by model* 1. Release the blade guard and push it back as far as it allows. 2. -
Page 15: Changing Coolant Pump
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com CHANGING COOLANT PUMP 1. Take the pipes of the lubricating system off. 2. Remove fastening screws and replace pump, being careful to keep the driving system centered on the drive shaft bearing. TROUBLESHOOTING SYMPTOM CAUSE... - Page 16 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com SYMPTOM CAUSE SOLUTION Dimensions of the solid section too large with respect Check the cutting capacity of to the maximum cutting the saw dimensions Blade diameter incorrect Decrease blade diameter and/or too large Too fast of an advance on the Decrease the level of...
- Page 17 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com SYMPTOM CAUSE SOLUTION Carefully clean the contact Dirt on the gripping device surfaces Bad fuses Check and/or change fuses Faulty power supply Check incoming power Short circuit Test for short and repair Bad light bulb Replace light bulb Speed switch is off...
-
Page 18: Electrical Components
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com ELECTRICAL COMPONENTS Single-Phase: 974315 REV112019... - Page 19 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Three-Phase: 974315 REV112019...
- Page 20 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Auxiliary Relay Remote-control Switch Fuse Carrier Transformer Socket Connector Plug Connector Speed Switch Reset Button Emergency Stop Electric Components Box 974315 REV112019...
-
Page 21: Exploded View
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEW 974315 REV112019... -
Page 22: Parts List
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com PARTS LIST Item Part Name Part No. Machine Bed 303340 Revolving Arm 020A0002 Revolving Arm Pin 302835 Revolving Arm Lock Bushing AFB80012 Revolving Arm Locking Lever AGB80016 Screw (M8-1.25 x 20mm) 80521 Counter-Vise 050B0008... - Page 23 Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Item Part Name Part No. Complete Assembly 51, 52, 53 ANB80041 Washer (M8 x 21mm O.D.) 82100000 Flow Valve 88600000 Coolant Hose 69102002 Oiler (Ø8mm) 82901005 Spring Tie Rod 303341 Head Return Spring AFC10021...
-
Page 24: Ordering Information
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com Item Part Name Part No. Ring SEEGER Ø42mm I 82610000 Bearing 3204 302901 Ring (DPSM 25x40x7mm) 86001049 Head Gasket ANC10002 Mobile Front Flange AGC20004 Rear Motor Flange Bearing 6205 2RS 80673 Ring SEEGER Ø25mm E Motor Fan... -
Page 25: Deactivating The Machine
Dake Corporation 1809 Industrial Park Dr. Grand Haven, MI 49417 www.dakecorp.com DEACTIVATING THE MACHINE If the machine is not going to be in use for a long period of time it is recommended that you do the following: 1. Unplug machine. 2.
