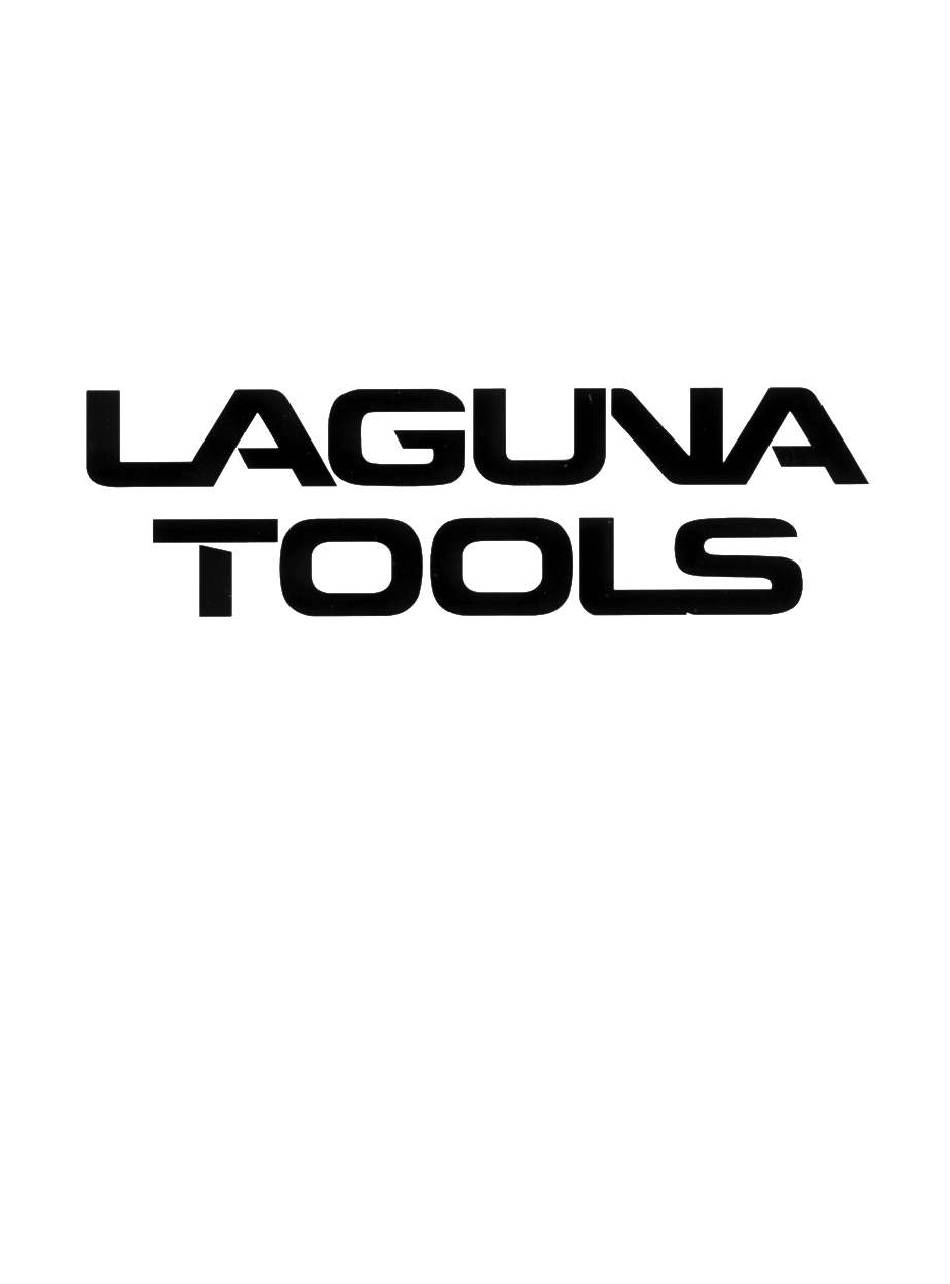

  • Page 1 Laguna 14” Bandsaw...

  • Page 2: Safety Rules

    IMPORTANT: Once fault has been verified, inform the seller (Laguna Tools) of the problem or defect. Depending on the problem, the seller will ship a replacement part or authorize the necessary repairs.
  • Page 3 LT14 SEL Bandsaw MBAND145400 Blade length 103” to 105”. Resaw capacity 8 5/8”. Heavy duty dynamically balanced cast iron wheels. Wheel dia 14” x 1 ¼”. Wheel bearings sealed. Miter gage slot 3/8” x ¾”. Upper wheel tension and tilt system in solid steel and cast iron.
  • Page 4 Above is one method of packaging. Methods may vary. Packaging open. REV. 1...
  • Page 5 Miter Gauge Optional Parts that need to be assembled to the bandsaw. Allen Keys supplied. REV. 1...
  • Page 6 Stand assembly Operation 1 NOTE: the angles may face in or out depending on your preference. Do not tighten the bolts until the complete stand is assembled. Finished assembled stand. REV. 1...
  • Page 7 Second view of the stand on the side. Bolt the stand to the bottom of the bandsaw with the saw lying down. Tighten all the bolts before moving the bandsaw to the upright position. REV. 1...
  • Page 8 View of the bandsaw in the upright position. Fit the electrical box to the spine of the bandsaw. REV. 1...
  • Page 9 Fit the cable clip and motor cable View of the electrical box from the front. REV. 1...
  • Page 10 Remove the yellow guard, side blade guides and back blade guide. Remove grease and re-assemble. View with guard and grease removed REV. 1...
  • Page 11 View of upper guide from back. Remove yellow guard and disassemble guide system. Remove the grease and re-assemble. 15 degree Table Stop View of 90degree table and stop. REV. 1...
  • Page 12 90degree stop in down and table at -15 degrees. View under table. Remove grease and pull the bolts through the slot. Lower the table so that both bolts go through the holes in the trunion. Fit the washer and clamp handle. You may find it of assistance, to make the table 90 degrees stop in the up position.
  • Page 13 View under the table, showing the clamp handle and washer. The table has a slot to allow the blade to be fitted. To reduce table warpage, a clamp screw and nut is provided. Only remove the screw when fitting or removing a blade.
  • Page 14 Lower the upper wheel using the blade tension handle on the top of the bandsaw and remove the cardboard packing. Extension table fitted. Attach table with bolts but do not over tighten. Using a straight edge (as shown) move the extension so that it is leveled with the table. There are two small allen screws (allen wrench not provided) that can be adjusted to bring the table parallel to the main table.
  • Page 15 Remove the locking nuts, washers and grease. Move the center nut as far as it can go towards the fence rail. Fit the locking nuts/washers to the two outside bolts from the underside of the table. Fit the fence to the rail and line it up with the miter slot. Adjust the nuts so that the fence is parallel with the miter slot.
  • Page 16 Tracking knob on the back of the bandsaw REV. 1...
  • Page 17 Introduction Welcome to a new era in band sawing. You have purchased a bandsaw with a revolutionary blade guide system (patent pending) that is designed to give you many years of safe, high-quality band sawing. Most blade guide systems are designed to support the blade on the sides and either above or below the side guides to support the back of the blade.
  • Page 18 6. The Surround Guide System uses ceramic to support and guide the blade. This has many advantages, (very poor conductor of heat, very resistant to wear, etc.). The disadvantage is that it is brittle, so the guides must never be dropped, exposed to hard knocks or hit with hard objects.
  • Page 19 Wooden Baffel REV. 1...
  • Page 20 View with the side guides removed. It is not necessary to remove the side guides when adjusting the upper or lower guide. Loosen the allen screw at the back (see next image) and adjust. To bring the back blade guide so that the blade is centered, move the back blade guide forward so that it loosens the lock screw (see image on page 20), it just touches the back of the blade.
  • Page 21 Loosen the lock screw and move the guide assembly so that the ceramic blocks are positioned just behind the gullet of the blade. Nip the lock screw, unlock the guide shaft and move it down so that the guide touches the table. Adjust the guide so that it is parallel to the table.
  • Page 22 Push one guide block so that both ceramic blocks just touch the blade, then tighten the lock bolt. Place a $ dollar bill or piece of paper of similar thickness between the guide block and the blade. Bring the other guide block in so that it touches the blade.
  • Page 23 Loosen the back blade guide clamp screw and move the back blade guide back so that it is NOT in contact with the blade. Loosen the clamp screws and move the guide forward so that the ceramic blocks are just behind the gullet of the blade and clamp in position. Make sure that when you clamp the guide it is squared with the blade.
  • Page 24 Loosen the back guide lock screw and move the back guide forward so that it just touches the blade. Tighten the lock screw. Move one side guide block so that both ceramic blocks just touch the blade, then tighten the lock bolt. REV.
  • Page 25 Place a $ dollar bill or piece of paper similar to thickness, between the guide block and the blade. Bring the other guide block in so that it touches the blade and tighten the lock screw. Remove the $ dollar bill and rotate the wheel slowly by hand, so that the blade completes two complete revolutions freely.
  • Page 26 Refit the wooden baffle. NOTE: the factory cut slot may need to be cut to suit the blade that you are using. Re-fit the throat plate. The throat plate is provided with three leveling screws. To adjust it, flush with the tabletop. NOTE: the table is made of cast iron, which will move with time.
  • Page 27 Refit the wooden baffle. NOTE: the factory cut slot may need to be cut to suit the blade that you are using. Re-fit the throat plate. The throat plate is provided with three leveling screws. To adjust it, flush with the tabletop. NOTE: the table is made of cast iron, which will move with time.
  • Page 28 Adjust the brush so that it removes the sawdust off the lower wheel. Drive belt adjustment screw. REV. 1...
  • Page 29 To open the door, loosen the clamp screws and move the blanking plate down. NOTE: only a QUALIFIED electrician should connect the electricity supply to your machine (cable approximately 6 feet long). It has a green/yellow earth/ground wire. The blue and brown wires are 220V wires. Plug is not supplied and your electrician will have to fit a plug to suite your 220V outlet.
  • Page 30 The upper guide post is factory set so that the blade guides run up and down parallel to the blade. If adjustment is required, adjustment screws are provided for forward, back, left and right. REV. 1...
  • Page 31 B35.00.00.00 Bandsaw B35.00.09.00 DISMOUNTABLE STAND В35.24.00.00 MOBILITY KIT LOWER WHEEL ATTACHING PULLEY АМ8 BDS 206-83 SPRING PULLEY 8Н BDS 833-82 NUT М8 BDS 744-83 B35.00.00.13 LOCK HANDLE SCREW М6Х25 BDS 2171-83 PULLEY АМ6 BDS 206-83 NUT М6 DIN 985 BOLT М8Х20 BDS 1234-85 BOLT М8Х30 BDS 2171-83...
  • Page 32 NUT М8 DIN 985 PULLEY Ф8,4ХФ18Х2 DIN 134 B35.02.00.10 BRUSH B35.02.00.08 BRUSH CARRIER SCREW 2,9Х13 DIN 7991 SCREW М8Х16 BDS 2171-83 NUT М6 BDS 744-83 SPRING PULLEY 6Н BDS 833-82 BOLT М6Х10 BDS 1234-85 B35.00.00.19 CHPI CATCHER PROTECTING SCREEN BOLT WITH SEMICIRCULAR HEAD М6Х20 DIN 603 WING NUT М6 BDS 1961-75...
  • Page 33 Tilting table GN5337-50-M10-E HANDLE NUT М10 BDS 744-83 PULLEY АМ10 BDS 206-83 SPRING PULLEY 10Н BDS 833-82 SCREW М4Х10 BDS 832-83 PULLEY АМ4 BDS 206-83 В35.03.00.18 ARROW В35.03.00.22 BASIS BOLT М10Х45 BDS 1234-85 BOLT М6Х20 BDS 1234-85 BDS 833-82 PULLEY 2-6Н В35.03.00.20 SECTOR В35.03.21.00...
  • Page 34 NUT М8 BDS 744-83 В35.03.00.05 TABLE В35.03.00.01 INSERT STOP SCREW М4Х5 BDS 1361-83 SPRING PIN Ф5Х10 DIN 1481 NUT М6 BDS 744-83 B35.03.00.27 TABLE EXTENSION PULLEY АМ8 BDS 206-83 SPRING PULLEY 8Н BDS 833-82 BOLT М8Х16 BDS 1234-85 SCREW М4Х5 DIN 913 Mechanism for top wheel stretching В35.02.22.02...
  • Page 35 RING А52 BDS 2170-77 В35.05.00.22 TOP AXIS STOP SCREW М6Х10 DIN 913 В35.05.00.05 SQUARED AXIS BDS 833-82 PULLEY 2-10Н NUT М10 BDS 744-83 В35.05.12.00 SPECIAL HANDLE В35.05.00.20 CARRYING STUD PULLEY АМ12 BDS 206-83 LOWER NUT М12 DIN 439 В35.05.00.11 BOLT WITH EAR NUT М10 DIN 985 В35.05.00.15...
  • Page 36 BDS 833-82 PULLEY 2-8Н В35.02.00.15 PULLEY_35Х9Х5 В35.02.00.18 LOWER AXIS BEARING 6205-2RS В35.02.12.03 BELT PULLEY 60 Hz BDS 2170-77 RING А52 В35.02.22.01 LOWER WHEEL BDS 1234-85 BOLT М8Х30 BDS 2170-77 RING В25 В35.02.22.02 RING (RUBBER) REV. 1...
  • Page 37 Top band guide BDS 2171-83 SCREW М8ХХ35 BDS 833-82 PULLEY АМ8 В35.07.23.00 BAND GUIDE BLOCK SCREW М8Х10 DIN 913 В35.07.00.01 TOP STRAP REV. 1...
  • Page 38 В35.07.00.04 CARRIER STRAP В35.07.03.00 BAND TOP SUPPORT BDS 2171-83 SCREW М8Х30 BDS 833-82 SPRING PULLEY 8Н В35.07.00.07 CARRYING COLOMN В35.07.15.00 BAND TOP GUARD BDS 2171-83 SCREW М8Х16 REV. 1...
  • Page 39 Lower band guide В35.07.25.00 LOWER BAND SUPPORT SCREW М8Х10 DIN 913 BDS 2171-83 SCREW М6Х45 B35.07.23.00 BAND GUIDE BLOCK BDS 206-83 PULLEY АМ8 BDS 2171-83 SCREW М8Х35 В35.07.21.00 BAND GUIDE BLOCK WITH CHAMFER В35.07.00.24 LOWER STRAP В35.07.00.20 STRAP 6Х20Х44 REV. 1...
  • Page 40 В35.00.01.00 Bandsaw fence В35.00.01.01 BEAM В35.00.01.09 SLIDE BLOCK SCREW М8Х25 BDS 2171-83 BDS 833-82 PULLEY 2-8Н HANDLE М8 GN603-63-M8-DGN В35.00.01.06 STUD М8Х35 NUT М8 BDS 1250-71 В35.00.01.02 STUD М8 PULLEY АМ8 BDS 206-83 COTTER 15Х10Х78 B35.00.01.10 В35.00.01.11 ALUMINUM PROFILE REV. 1...
  • Page 41 В35.00.08.00 Miter fence В35.00.08.02 GUIDE COTTER LVC600-00.00.05 ARROW SCREW М6Х8 ISO 7380 DM5-321.05П.00.05 ROTATING BODY DM5-321.05П.00.01 AXIS PULLEY АМ8 BDS 206-83 SCREW М8Х25 BDS 2171-83 В35.00.08.04 COTTER 10Х15Х30 В35.00.08.03 FENCE L=230 GN603-63-M8-20-DGN HANDLEАТКА REV. 1...
  • Page 42 В35.00.09.00 Stand BDS 1234-84 BOLT М8Х20 PULLEY АМ8 BDS 206-83 B35.00.09.02 FUNDAMENTAL SQUARE SPRING PULLEY 8Н BDS 833-82 NUT М8 BDS 744-83 B35.00.09.03 RACK REV. 1...
  • Page 43 B35.00.09.05 RIGHT SIDE PLATE B35.00.09.01 FRONT WALL 10 B35.00.09.06 LEFT SIDE PLATE 11 B35.00.09.04 REAR WALL REV. 1...
  • Page 44 В35.24.00.00 Mobility kit DM.KH.00.02 ROLL В35.24.01.00 CARRYING AXIS BDS 206-83 PULLEY АМ12 SPLINT PIN 3,2Х20 BDS 55-77 BDS 206-83 PULLEY АМ8 NUT М8 BD 744-83 BDS 1234-85 BOLT М8Х35 REV. 1...
  • Page 45 REV. 1...
  • Page 46 REV. 1...
