Disassembly Instruction - Icom ID-52A Service Manual

SECTION 3
Before disassembling:
REMOVE the microSD card if inserted. Otherwise the front panel and chassis cannot be separated.
See ID-52A/E BASIC INSTRUCTIONS for removal details.
IMPORTANT: After the reassembling
After reassembling the DUT, the waterproof check must be performed. Otherwise, waterproof performance can not be
guaranteed.

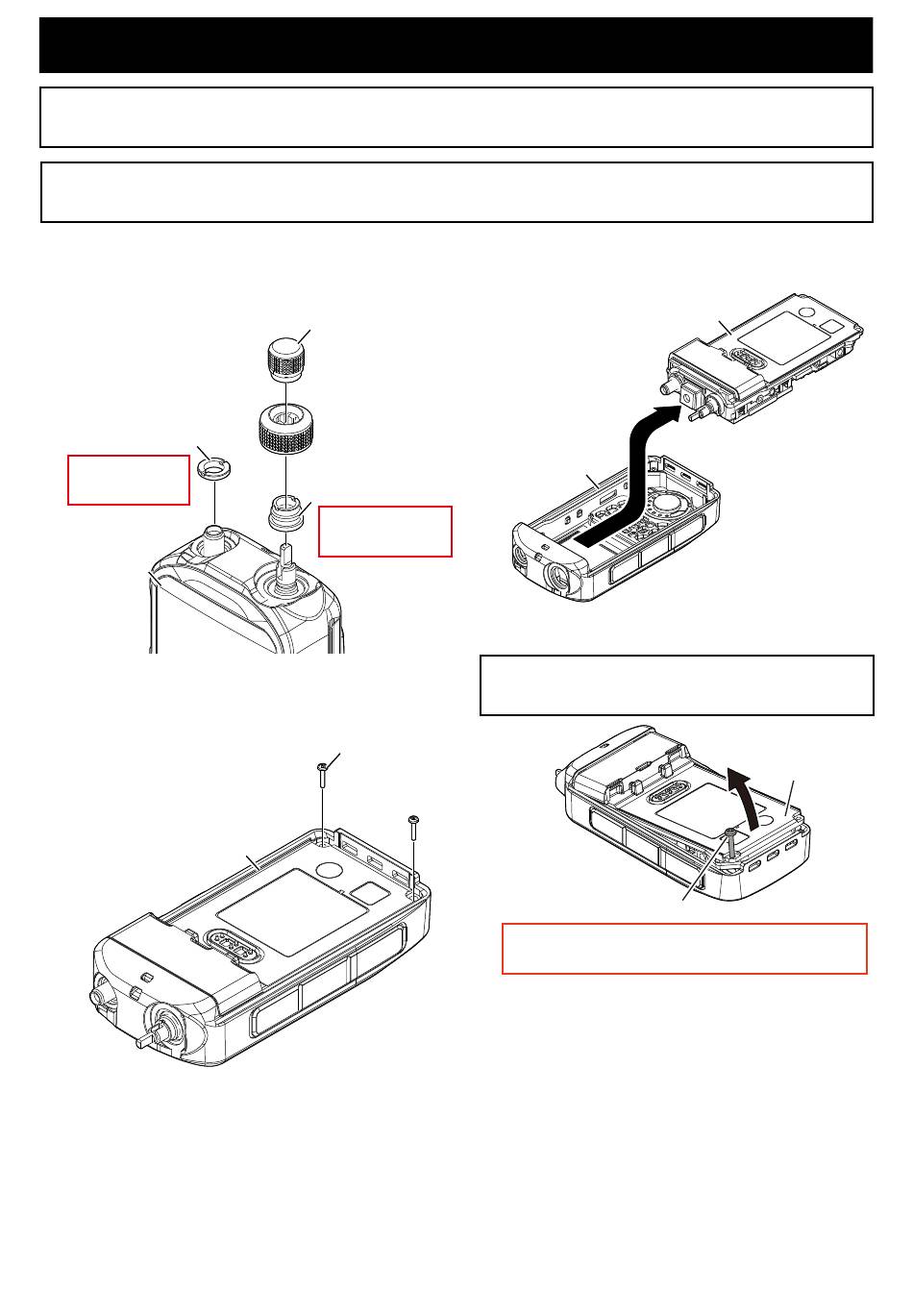

1. REMOVING THE LOGIC UNIT
1) Remove 2 knobs, Antenna nut, and VR nut from the
front panel.
Antenna nut
Remove with:
"ICOM Driver (Q)-1"
(8960000371)
Front panel
2) Remove 2 screws from the bottom side of the chassis.
Chassis

DISASSEMBLY INSTRUCTION

Knob ×2
VR nut
Remove with:
"ICOM Driver (AG)-1"
(8960000561)
Screw ×2
3) Take out the chassis from the front panel.
Front panel
For easy separation of the chassis:
Use an M3 screw to lift the bottom of the chassis up in the
direction of the arrow.
M3 screw (screw thread pitch: 0.5 mm)
The M3 screws are commercially available.
When ordering parts, the following parts are recommended.
"PH M3 ×16 SUS" (8810000620)
3-1
Chassis
Chassis
