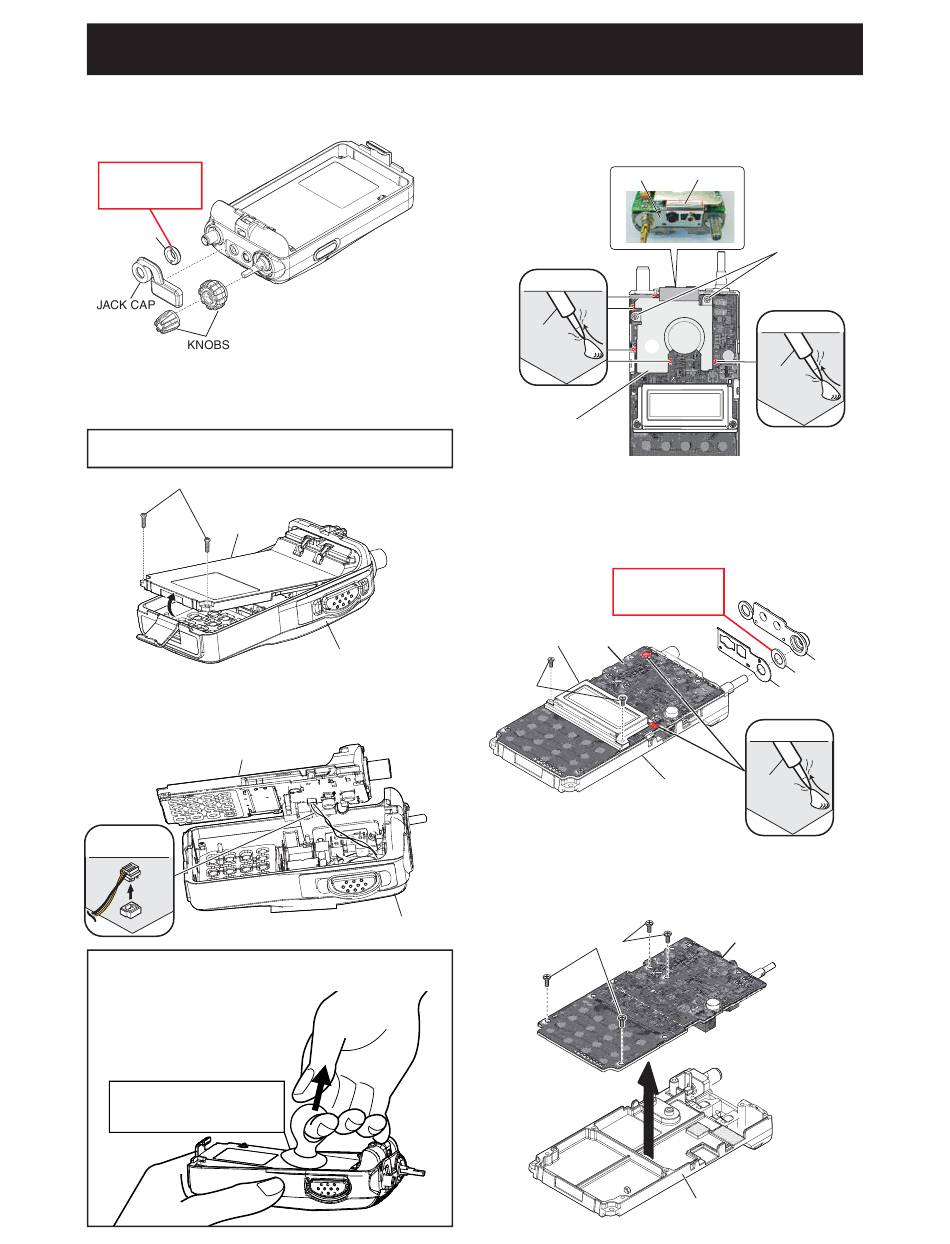

SECTION 3.
1. REMOVING THE CHASSIS
1) Remove the jack cap, ANT nut and 2 knobs.
Remove with;
"ICOM Driver (Q)"
(8960000370)
ANT NUT
2) Remove 2 screws from the bottom of the CHASSIS.
3) Lift the bottom of the CHASSIS up in the direction
of the arrow.
BE CAREFUL to not pull out the speaker wire when
separating the CHASSIS and the FRONT PANEL.
SCREWS
CHASSIS
4) CAREFULLY lift the chassis out of the FRONT PANEL
and turn it over in order to unplug the speaker wire.
CHASSIS
SPEAKER
WIRE
For easy separation of the CHASSIS
Use a suction lifter to lift the bottom of the CHASSIS up.
Suction lifter
• Part name : EA950R-2
• Manufacture : ESCO CO.LTD
All manuals and user guides at all-guides.com
DISASSEMBLY INSTRUCTION
FRONT PANEL
FRONT PANEL
3 - 1
2. REMOVING THE MAIN UNIT
1) Remove the metal sheet from the top plate.
2) Unsolder the 5 points, and remove the shield plate.
Top plate Metal sheet
UNSOLDER
Solder
remover
SHIELD PLATE
3) Remove the 2 screws from the MAIN UNIT.
4) Remove the top seal, dial nut and top plate from the
chassis.
5) Unsolder the 2 points.
Remove with;
"ICOM Driver (AG)"
(8960000560)
LCD
MAIN UNIT
SCREWS
CHASSIS
6) Remove the 4 screws, and remove the MAIN UNIT
from the chassis.
SCREWS
SCREWS
UNSOLDER
Solder
remover
TOP SEAL
DIAL NUT
TOP PLATE
UNSOLDER
Solder
remover
MAIN UNIT
CHASSIS
