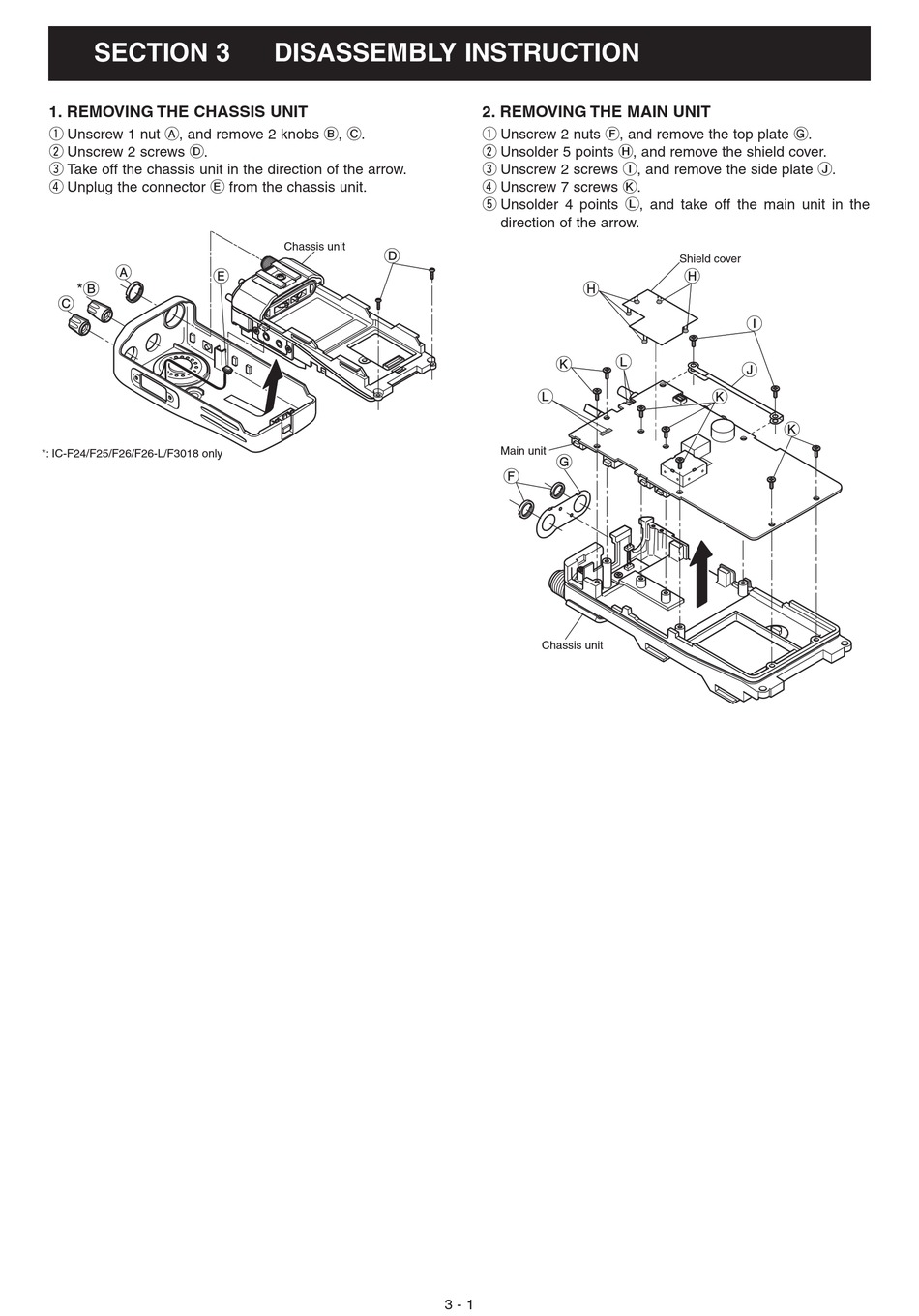

SECTION 3.
1. REMOVING THE CHASSIS UNIT
q Unscrew 1 nut A, and remove 2 knobs B, C.
w Unscrew 2 screws D.
e Take off the chassis unit in the direction of the arrow.
r Unplug the connector E from the chassis unit.
A
E
*B
C
*: IC-F24/F25/F26/F26-L/F3018 only
DISASSEMBLY INSTRUCTION
Chassis unit
D
3 - 1
2. REMOVING THE MAIN UNIT
q Unscrew 2 nuts F, and remove the top plate G.
w Unsolder 5 points H, and remove the shield cover.
e Unscrew 2 screws I, and remove the side plate J.
r Unscrew 7 screws K.
t Unsolder 4 points L, and take off the main unit in the
direction of the arrow.
H
L
K
L
Main unit
G
F
Chassis unit
Shield cover
H
I
J
K
K
