1. REMOVING THE PA UNIT

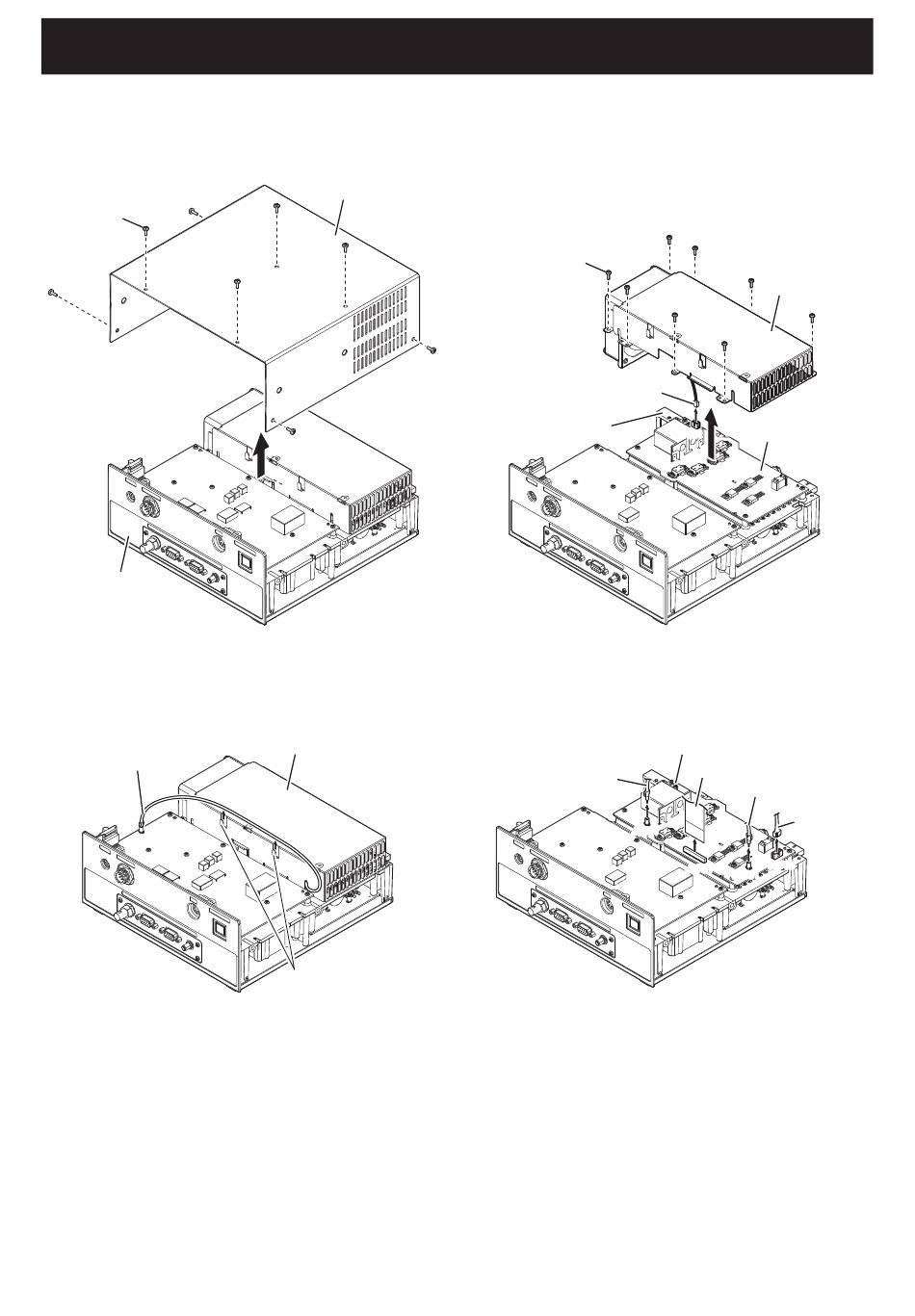

1) Remove the 8 screws from the top cover, and then
remove the top cover from the chassis.
Screws × 8
Chassis
2) Remove the coaxial cable from the 2 cable hooks on the
PA cover.
Coaxial cable

DISASSEMBLY INSTRUCTION

Top cover
PA cover
Cable hooks
3) Remove the 8 screws from the PA cover, and then
separate the PA cover from the chassis as shown in the
illustration below.
Disconnect the cooling fan cable from the PA UNIT, and
then remove the PA cover from the chassis.
Screws × 8
Cooling fan cable
Chassis
4) Disconnect the tuner cable, flat cable, and 2 coaxial
cables from the PA UNIT.
Coaxial cable
3-1
PA cover
PA UNIT
J6501 J6501
PA UNIT
Flat cable
Coaxial cable
Tuner cable
J6401 J6401
J6703 J6703
J6701 J6701
J6101 J6101
