SECTION 3.

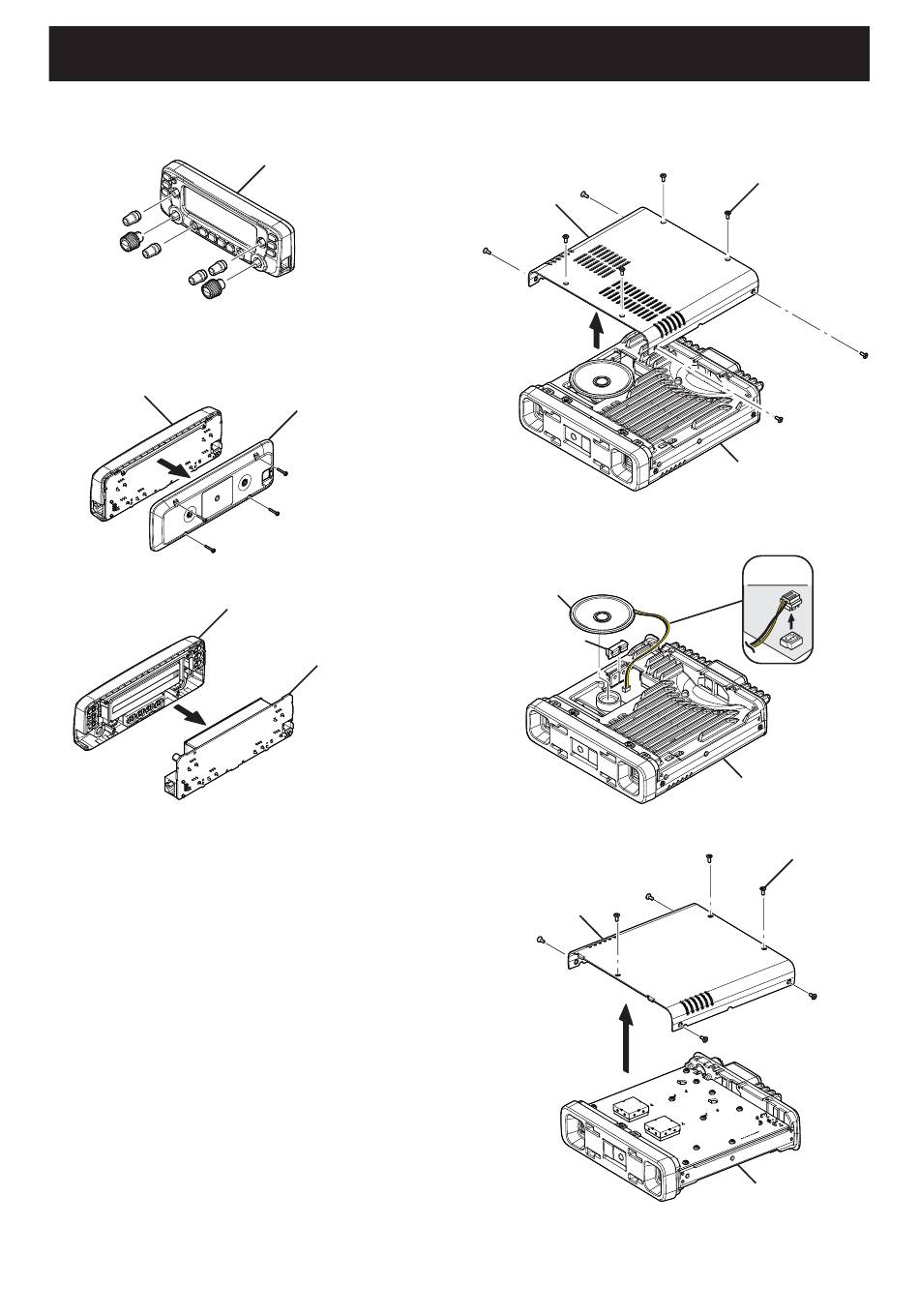

1. Removing the CONTROL UNIT

1) Remove all knobs from the controller.
2) Remove four screws from the rear panel.
3) Separate the rear panel from the front panel as-
sembly.
Front panel assembly
4) Remove the CONTROL UNIT from the front panel.
DISASSEMBLY INSTRUCTION
Controller
Rear panel
Front panel
CONTROL UNIT

2. Removing the MAIN UNIT

1) Remove eight screws from the top cover.
2) Remove the top cover from the chassis.
Top cover
3) Disconnect the speaker cable from the MAIN UNIT.
4) Remove the clip from the chassis.
Speaker
Clip
5) Remove seven screws from the bottom cover.
Bottom cover
3-1
Screws ×8
CHASSIS
SPEAKER
CABLE
CHASSIS
Screws×7
CHASSIS
(Continued on the next page.)
