■ ENTERING THE ADJUSTMENT MODE

1) Connect the JIG cable 2 to [SP].
2) While holding down [SQL] and [QUICK/SPCH], turn ON the power.
Push to turn ON the power.
■ KEY ASSIGNMENTS FOR THE ADJUSTMENT MODE
• Push [RX→CS] to select the next adjustment item, push [DR] to select the previous adjustment item.
• Rotate [DIAL] to adjust the value of the item.
• Push [ENTER] to start automatic adjustment, or store the adjusted value.
■ QUITING THE ADJUSTMENT MODE
1) Turn OFF the power, and then remove the JIG cable 2 from [SP].
2) Turn ON the power.

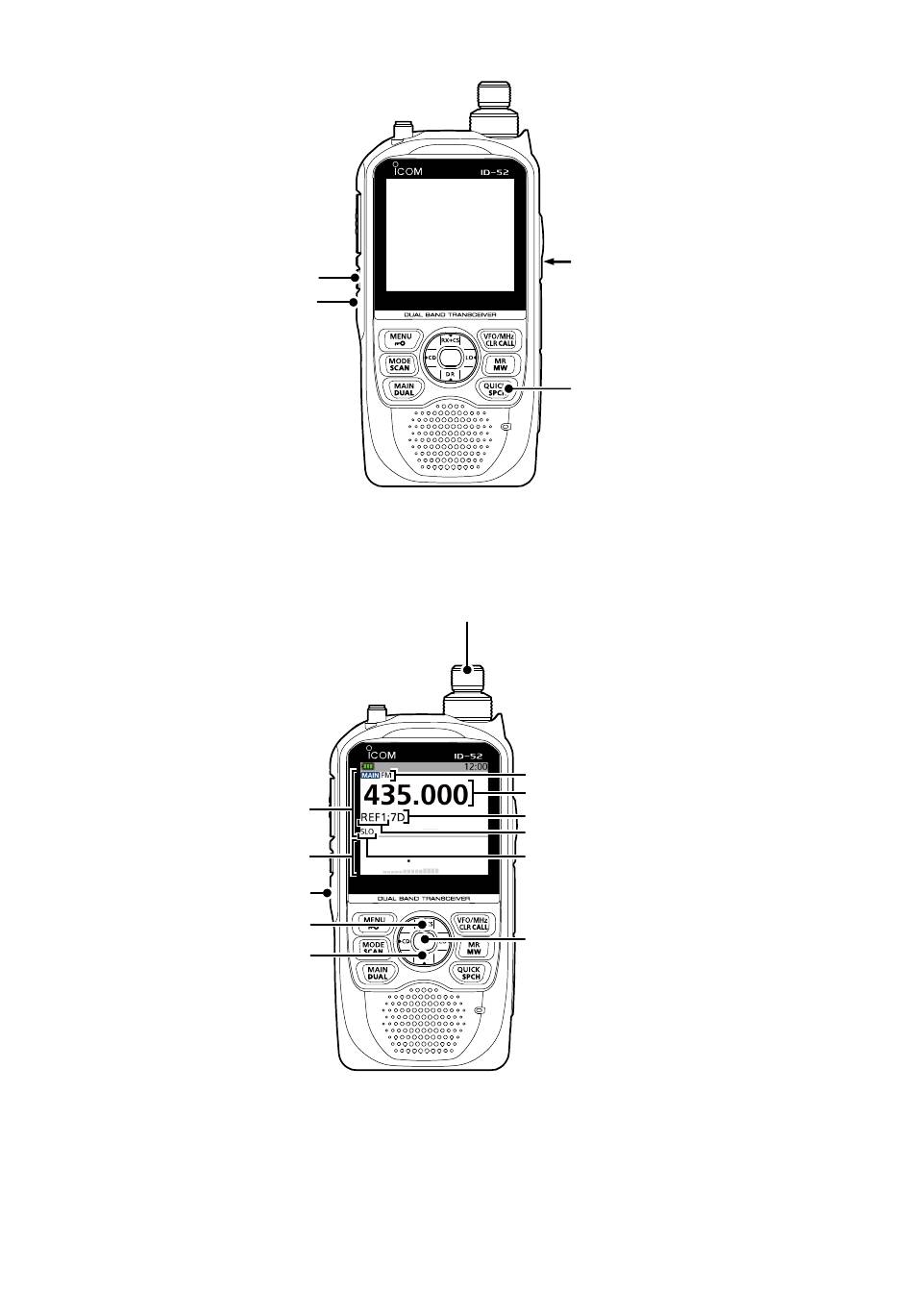

[SQL]
A band
B band
[SQL]
[RX→CS]
[DR]
Connect the JIG cable 2 here.
[QUICK/SPCH]
[DIAL]
Mode
Adjustment frequency
Adjustment value
Adjustment item
TX output power
[ENTER]
