Merck Milliflex Quantum User Manual page 18

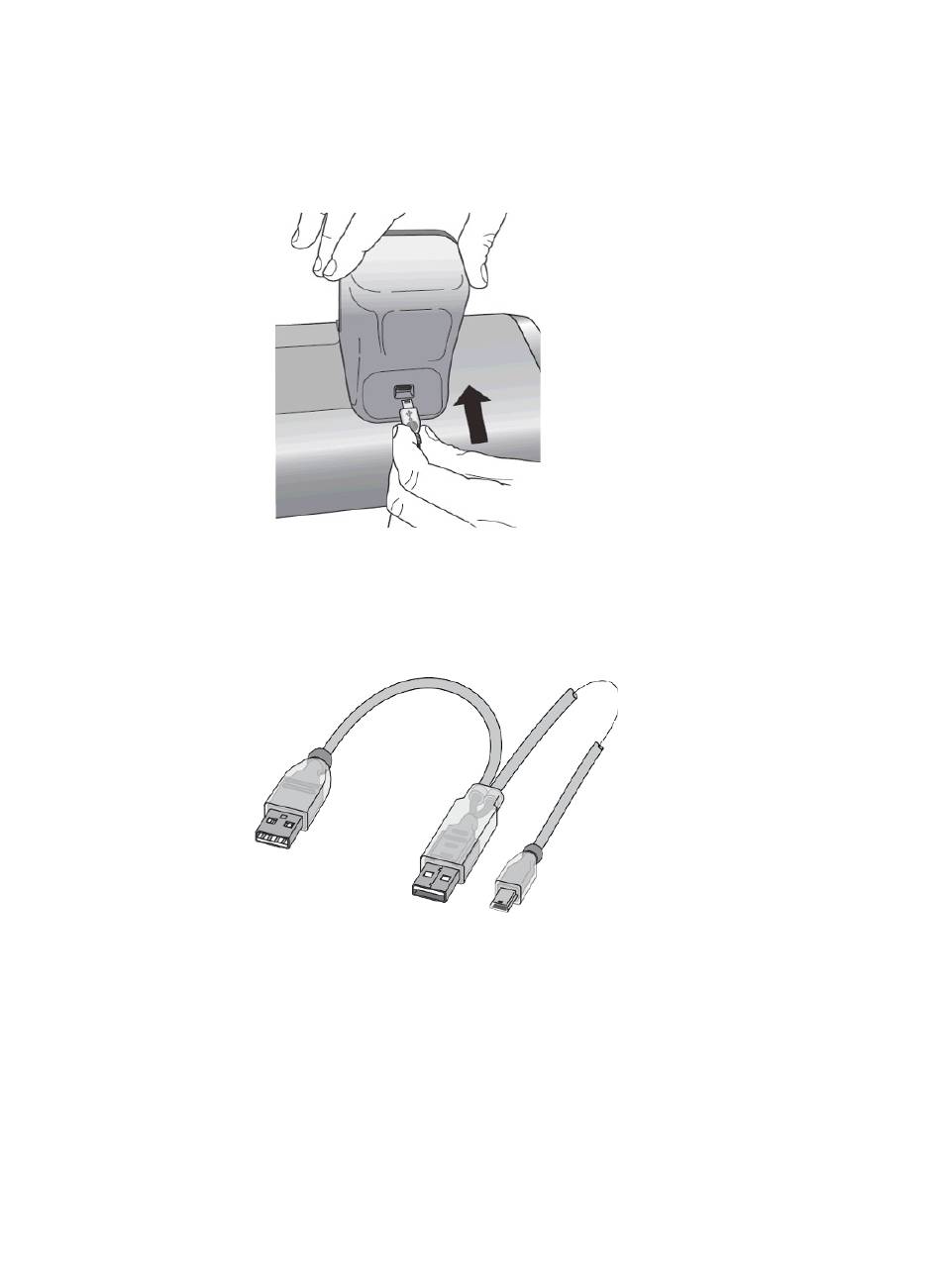

12. Connect the small end of the USB cable to the camera.
13. The other end of the USB cable is equipped with two plugs. Connect the main plug to a
USB port of the PC. Connect the second plug to another USB port of the PC, if available.
2 nd plug
(recommended)
Main plug
To the camera
NOTE: T he main plug of the camera USB cable must be connected to the same USB port during
installation and use or the camera will not be recognized by the PC.
14. The PC detects the Milliflex Quantum Camera. Wait until each component is
®
installed.
15. The installation is completed. The software can now be started.
Page 18 of 48
