EVALUATION BOARD SOFTWARE
The control software for the
the EV-ADF4108EB1Z on a CD. To install the software, see the
Software Installation section.
To run the software, click the Int-N v7 file on the desktop or in
the Start menu.
On the Select Device and Connection tab, choose your device
and your connection method, and then click Connect.
EV-ADF4108EB1Z accompanies

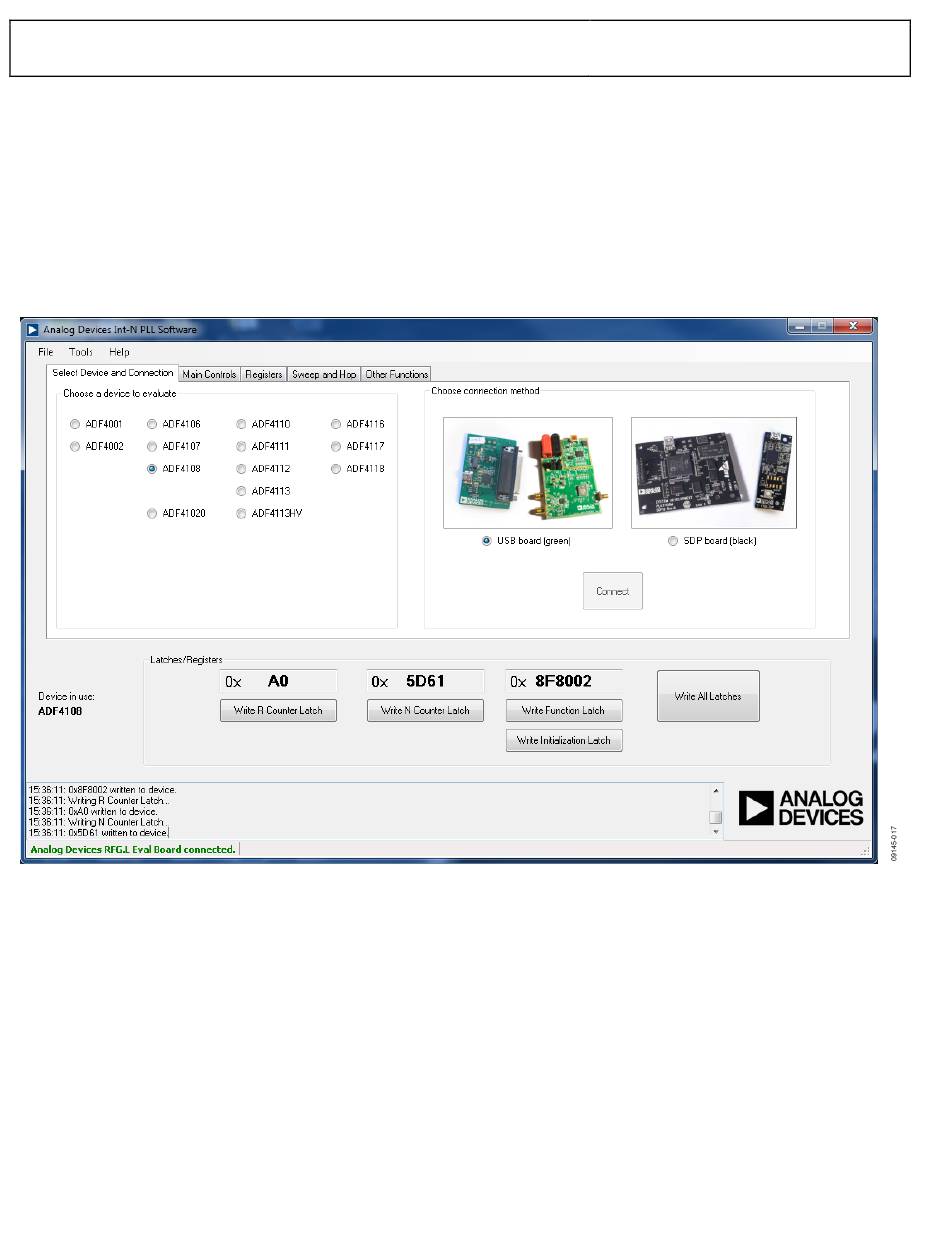

Figure 17. Software Front Panel Display—Select Device and Connection
Confirm that "Analog Devices RFG.L Eval Board connected" is
displayed at the bottom left of the window (see Figure 17).
Otherwise, the software has no connection to the evaluation board.
Note that, when connecting the board, it takes about 5 to 10
seconds for the status label to change.
Under the File menu, the current settings can be saved to, and
loaded from, a text file.
