Evaluation Board User Guide
EVALUATION BOARD SETUP PROCEDURE
SOFTWARE INSTALLATION
Use the following steps to install the USB drivers and Int-N
software.
1. Install the Analog Devices Int-N software by double-
clicking ADI_Int-N_Setup.msi.
If you are using Windows XP, follow the instructions in the
Windows XP Software Installation Guide section (see
Figure 3 to Figure 7).
If you are using Windows Vista or Windows 7, follow the
instructions in the Windows Vista and Windows 7 Software
Installation Guide section (see Figure 8 to Figure 12).
Note that the software requires Microsoft Windows
Installer and Microsoft .NET Framework 3.5 (or higher).
The installer connects to the Internet and downloads
Microsoft .NET Framework automatically. Alternatively,
before running the ADI_Int-N_Setup.msi, both the
installer and .NET Framework can be installed from the
CD provided.
2. Plug the USB cable into the USB connector on the
evaluation board. If you are using Windows XP, follow the
steps in the Windows XP Driver Installation Guide section
(see Figure 13 to Figure 16).
On Windows Vista or Windows 7, the drivers install
automatically.
Windows XP Software Installation Guide

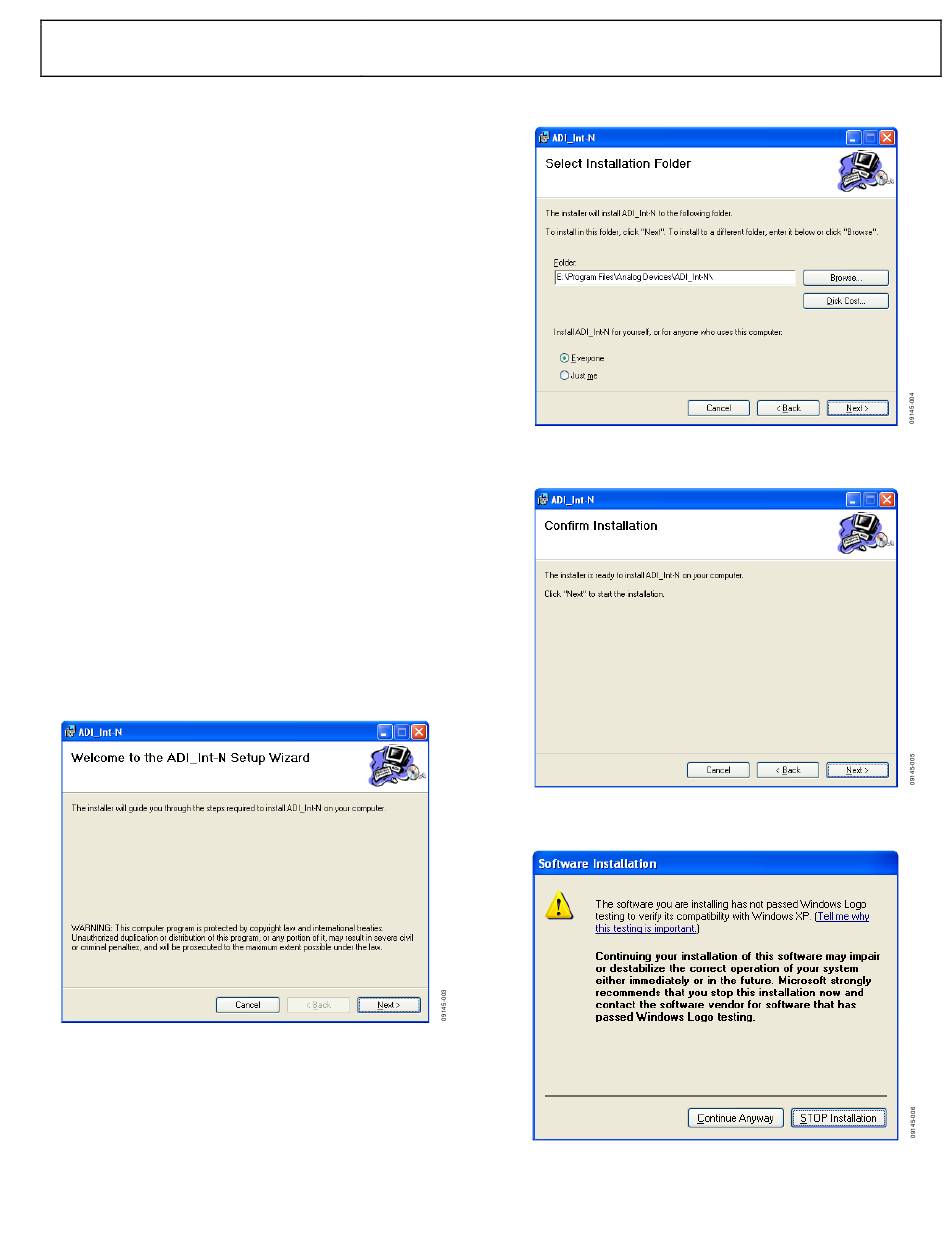

Figure 3. Windows XP Int-N Software Installation, Setup Wizard
1. Click Next.
Figure 4. Windows XP Int-N Software Installation, Select Installation Folder
2. Choose an installation directory, and then click Next.
Figure 5. Windows XP Int-N Software Installation, Confirm Installation
3. Click Next.
Figure 6. Windows XP Int-N Software Installation, Logo Testing
4. Click Continue Anyway.
