Force Blower Operator's Manual
Models
F902H
F1002V
F1002SPV
F1302H
F1302SPH
F1402V
F1402SPV
F1802V
F1802SPV

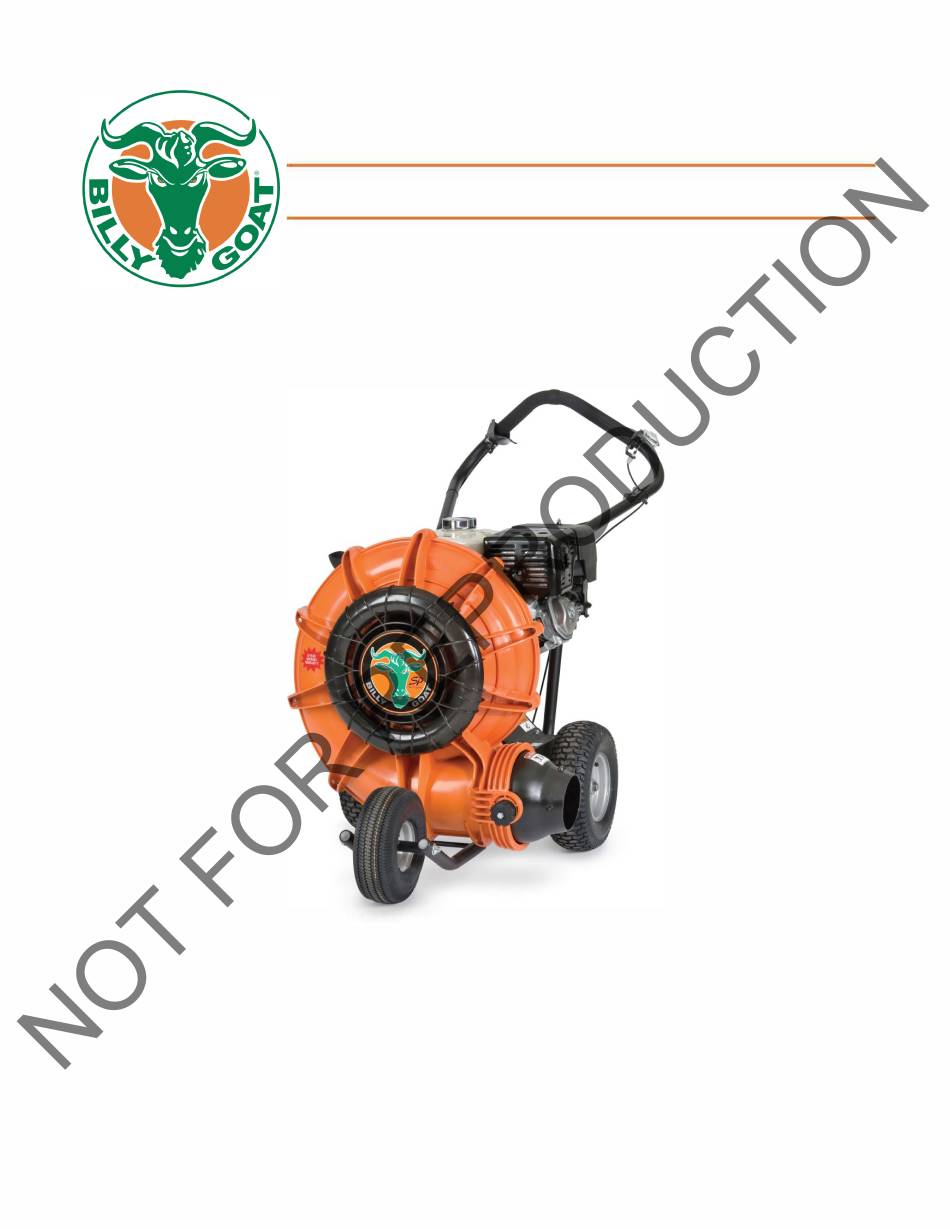

Billy Goat F9-18 Force Blower
Operator's Manual
440313_H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F9 and is the answer not in the manual?

Questions and answers

Summary of Contents for Billy Goat F9

  • Page 1 Force Blower Operator's Manual Models F902H F1002V F1002SPV F1302H F1302SPH F1402V F1402SPV F1802V F1802SPV Billy Goat F9-18 Force Blower Operator's Manual 440313_H...
  • Page 2: Table Of Contents

    Replacing the Drive Belt..........11 Adjusting Belt Tension............11 Replacing the Drive Chain..........11 Adjusting the Drive Cable..........12 Maintenance Schedule........... 12 Troubleshooting..............13 Specifications..............14 Dimensions..............14 Weights................14 F9 - Engine..............14 F10 - Engine..............14 F13 - Engine..............14 F14 - Engine..............14 F18 - Engine..............14 billygoat.com...
  • Page 3: Identifying Your Unit

    Identifying Your Unit Operating Safely Thank you for purchasing this quality piece of outdoor power Congratulations on purchasing a superior-quality piece of equipment. Please note that throughout this manual, all lawn and garden equipment. Our products are designed and instances of LEFT and RIGHT are referenced from the manufactured to meet or exceed all industry standards for operator's position.
  • Page 4: Force Blower Decals

    Force Blower Decals 100443 5110550 Thrown Objects Warning: Thrown objects hazard. Do not use without a chute or debris bag. This unit is capable of throwing objects and debris. Keep bystanders away. Do not detach the debris bag when the engine is running Keep Distance Warning Thrown Objects Hazard: This unit is capable of throwing objects and debris.
  • Page 5 80133777 Warning: Risk of cutting fingers, hand, or foot. Hands and Feet Distance Keep hands and feet a safe distance from hazard. Spark Plug 80133771 Read Manual Before repairing/maintaining the machine, shut off the engine, wait for the rotating parts to stop completely and disconnect the spark plug wire.
  • Page 6: Initial Setup

    Belt Drive Do not operate this machine unless you are trained. Consult technical literature before performing technical repairs or maintenance. Avoidance Warning: Dismemberment hazard. Keep hands away from belts and pulleys. Do not open or remove safety shields/ guards while engine is running Blade Warning Look behind while moving unit in reverse.
  • Page 7: Install And Secure The Cables

    Install and Secure the Cables 1. The throttle control will be attached to the throttle arm on the engine and wrapped around the engine for shipping. The throttle control mounting screws will be attached to the upper handle for shipping. Unwrap the throttle control (A, Figure 4), and secure it to upper handle with screws (B).
  • Page 8: Operation

    Controls 4. Secure the throttle cable, Aim-N-Shoot cable, and drive cable, if applicable. Following the contour of the handle, secure the cable(s) to the handle with the zip-ties provided. Be sure the cables are seated properly in the saddle and do not come into contact with the wheels. Operation Before Operation As with all mechanical tools, use reasonable care during...
  • Page 9: Driving The Unit

    Note: Do not direct air flow towards people, vehicles or other For operations that do not require the Aim-N-Shoot feature, objects in vicinity. Always clear the area of large obstacles use the manual adjustment knob (A, Figure 10) to secure the and be aware of surroundings. Flying debris may harm or air director cone into position.
  • Page 10: Maintenance Procedures

    Do not reuse the old impeller hardware. Note: Torque the impeller bolt to the required specification: • F9, F10, and F14 models: 60 +/-2 ft-lbs. • F13 and F18 models: 38 +/-2 ft-lbs. 5. Reinstall the front housing cover. Reconnect the spark plug wire.
  • Page 11: Replacing The Drive Belt

    Replacing the Drive Belt 1. Stop and shut off the unit. Wait for the engine to cool, and disconnect the spark plug wire. 2. Uninstall the impeller. Follow Steps 2-3 in the Replacing the Impeller section. 3. Uninstall the back plate (A, Figure 15). Loosen and remove the four bolts (B) and washers (C) that secure the back plate to the housing, then remove the back plate.
  • Page 12: Adjusting The Drive Cable

    and steady the unit under the axle on the side of the machine. 3. Uninstall the chain guard (A, Figure 18). Loosen and remove the two screws (B) that secure the chain guard to the housing, then remove the chain guard. 6.
  • Page 13: Troubleshooting

    Procedure Every Every 5 Every Hours Hours Inspect impeller for cracks or damage. Troubleshooting Problem Cause Solution Abnormal vibration. Loose or out of balance Check impeller impeller. Debris in and replace if impeller. Loose engine. required. Clear debris with compressed air. Check engine. Engine will not start.
  • Page 14: Specifications

    F1402V 157 lb (71.2 Kg) F1402SPV 171 lb (77.6 Kg) F1802V 179 lb (81.2 Kg) F1802SPV 182 lb (82.6 Kg) F9 - Engine Manufacturer Honda Model GX270UT2X QA2 Fuel Capacity 5.6 qt (5.3 L) Oil Capacity 1.16 qt (1.10 L) Torque @ 2500 RPM 14.1 ft-lb (19.1 Nm)
