Summary of Contents for Billy Goat EX17D50012

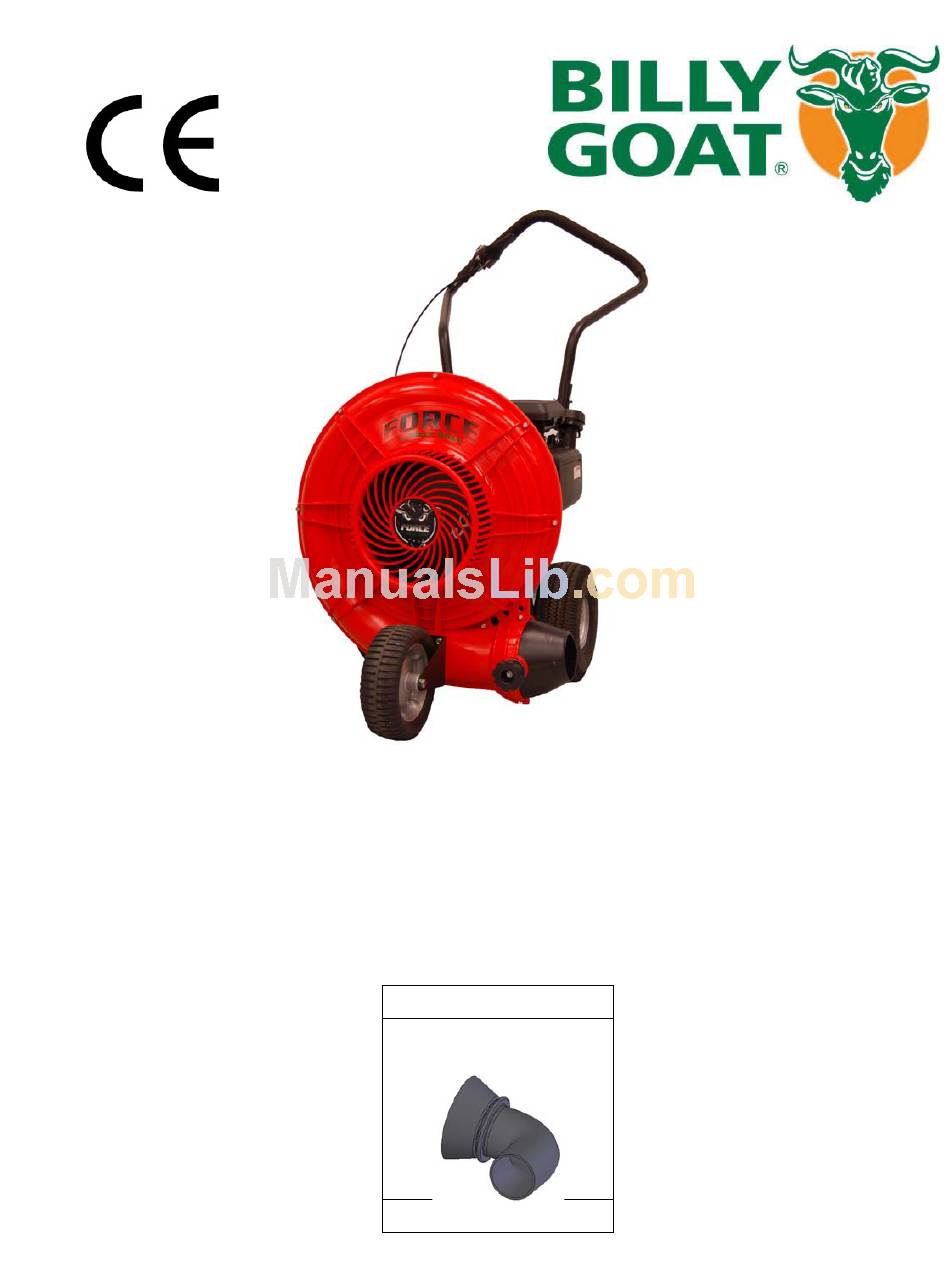

- Page 1 FORCE 6 BLOWER Owner’s Manual Patent #6,253,416 and other patents pending F601S BILLY GOAT FORCE BLOWER Owner's Manual ACCESSORIES FRONT AIR DIRECTOR Simple to attach, allowing air to be directed forward. PN# 441130 Part No 441161 Form No F042808A...
-
Page 2: Table Of Contents
This manual provides complete operating and maintenance instructions that will help to maintain your FORCE Blower in top running order. Read this manual carefully before assembling, operating, or servicing your equipment. -
Page 3: Serial Plate Data And Specifications
In compliance with 2000/14/EEC standards Sound at Operator’s ears Vibration at operator position Part No 441161 FORCE 6 BLOWER Owner’s Manual F601S 6.0 HP (4.7kW) EX17D50012 3.8 qt.(3.6 L) 0.63 qt.(0.60 L) 76# (34.5 kg) 43.5"(1.1m) 22” (0.56m) 45" (1.14m) -
Page 4: General Safety
This symbol indicates that this manual and the engine manufacturer’s manual should be read carefully before assembling, operation, or servicing this equipment. This symbol indicates important information that will prevent damage to your BILLY GOAT FORCE Blower. This symbol indicates the engine oil level should be checked before operating this equipment. - Page 5 FORCE 6 BLOWER Owner’s Manual DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is recommended. DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least two minutes before refueling.
-
Page 6: Vibration Data
To remove debris from impeller see the trouble shooting section on page 13. Note: See parts list for proper impeller bolt torque specifications. Part No 441161 FORCE 6 BLOWER Owner’s Manual SOUND LEVEL 89 Db(a) at Operators Position VIBRATION LEVEL 1.02g (10.1m/s Sunny 87.8... -
Page 7: Instruction Labels
FORCE 6 BLOWER Owner’s Manual INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT FORCE Blower. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. -
Page 8: Packing Checklist
These items should be included in your carton. If any of these parts are missing, contact your dealer. ® Your BILLY GOAT FORCE Blower was shipped in one carton, completely assembled except for the Upper Handle Assembly and Front Diverter. Mounting hardware for the Upper Handle Assembly can be found on the lower handle. -
Page 9: Assembly
Two ½” open ended wrenches Part No 441161 FORCE 6 BLOWER Owner’s Manual Figure B Attach the front tire using the hardware located on the front wheel bracket. Use a block to raise the front end of the unit off the ground. -
Page 10: Operation
Never lift the machine while the engine is running. BLOWING OPERATION Your Billy Goat Force blower is equipped with an air director cone and the patented Aim-N-Shoot control lever to allow the operator to direct the air stream up or down as required to assist in moving debris. This feature is extremely useful when debris has piled up to the point that it cannot be blown any farther. -
Page 11: Operation
Part No 441161 FORCE 6 BLOWER Owner’s Manual control lever. When you want to blow debris at the same angle for an feature the manual adjustment knob, pictured below, can... -
Page 12: Maintenance
Add stabilizer to gasoline in storage container or fuel tank. Follow stabilizer manufacturer’s instructions to determine proper mix ratio. Run engine at least 10 minutes after adding stabilizer to allow it to reach carburetor. Part No 441161 FORCE 6 BLOWER Owner’s Manual Every Daily or Every 5 Hours... -
Page 13: Warranty Claim Procedure
• The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY GOAT Dealer. •... -
Page 14: Illustrated Parts List
FORCE 6 BLOWER Owner’s Manual ILLUSTRATED PARTS LIST Part No 441161 Form No F042808A... -
Page 15: Parts List
DIVERTER PIVOT ADAPTOR SPRING EXTENSION 0.375 X 3.75 PIN CLEVIS 1/4 X 3/4 .051 X 3/4" HITCH PIN CLIP ADAPTOR MOUNT WA TY-WRAP VIBRATION LABEL Part No 441161 FORCE 6 BLOWER Owner’s Manual F601S PART NUMBER QTY. 350307 441151-S 441155 441102 441101-1-S... -
Page 16: Maintenance Record
FORCE 6 BLOWER Owner’s Manual MAINTENANCE RECORD Date Service Performed Part No 441161 Form No F042808A...
