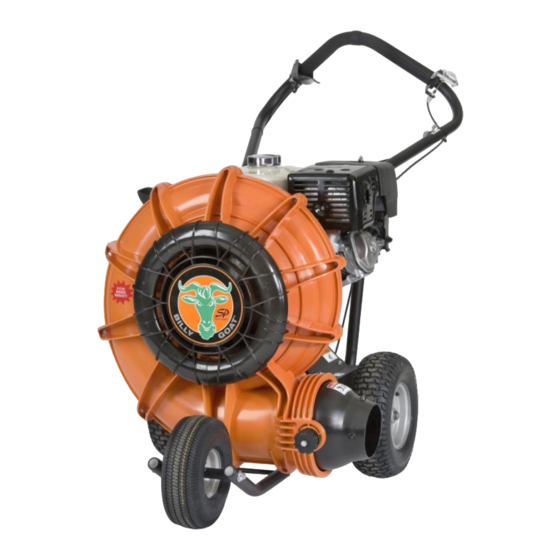

FORCE SP BLOWER Owner's Manual
FORCE BLOWER Owner's Manual
HOLD DOWN KIT
To secure blower for
transportation on trailer
floors.
P/N 440120
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE
Part No 440314
Patent #6,253,416 and other patents pending
F902SPS, F902SPH, F1302SPH, F1802SPV
Beginning Serial #: 110215001
Accessories
SOLID FRONT TIRE
Solid flat-free front tire.
P/N 440279
Original Instructions
PARKING BRAKE
Effective and easy to use to
prevent blower from rolling.
P/N 440140
1
CASTER KIT
For greater maneuverability
on hard surfaces.
P/N 440293
Form No F110215B
Advertisement
Table of Contents
Related Manuals for Billy Goat F902SPS
Summary of Contents for Billy Goat F902SPS
- Page 1 FORCE SP BLOWER Owner’s Manual Patent #6,253,416 and other patents pending FORCE BLOWER Owner's Manual F902SPS, F902SPH, F1302SPH, F1802SPV Beginning Serial #: 110215001 Accessories HOLD DOWN KIT SOLID FRONT TIRE PARKING BRAKE CASTER KIT To secure blower for Solid flat-free front tire.
-
Page 2: Table Of Contents
FORCE SP BLOWER Owner’s Manual CONTENTS SPECIFICATIONS AND SOUND/VIBRATION INSTRUCTION LABELS PACKING CHECKLIST ASSEMBLY OPERATION MAINTENANCE TROUBLESHOOTING MAINTENANCE RECORD ILLUSTRATED PARTS AND PARTS LIST 12-14 DECLARATION OF CONFORMITY 15-17 Go to http://www.billygoat.com for French-Canadian translations of the product manuals. Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits. -
Page 3: Specifications And Sound/Vibration
FORCE SP BLOWER Owner’s Manual SPECIFICATIONS F902SPS F902SPH F1302SPH F1802SPV Engine HP 9.0 HP (6.6kW) 9.0 HP (6.6kW) 13.0 HP (9.6kW) 18 HP (13.42kW) Engine Model EX270D50021 GX270K1QA2 GX390K1QAA2 3564420224E9 Engine Type SUBARU OHC HONDA OHV HONDA OHV B & S VANGUARD Engine Fuel Capacity 6.4 qt. -
Page 4: Instruction Labels
FORCE SP BLOWER Owner’s Manual INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT FORCE Blower. If any labels are damaged or missing, replace them before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in the Illustrated Parts List. -
Page 5: Packing Checklist
These items should be included in your carton. If any of these parts are missing, contact your dealer. ® Your BILLY GOAT FORCE Blower was shipped in one carton, completely assembled except for the Upper Handle Assembly and Front Diverter. Mounting hardware for the Upper Handle Assembly can be found in the parts bag. -
Page 6: Assembly
FORCE SP BLOWER Owner’s Manual ASSEMBLY The hardware for attaching the upper handle to the lower is in the parts bag. Install lthe upper handle (item 30), to preassembled lower handle (item 28) by sliding the upper handle over and down the outside of the lower handle. Using the bolts (items #36 and #123), washers (item #10) &... -
Page 7: Operation
This type of failure will void the manufacturer’s warranty. BLOWING OPERATION Your Billy Goat Force blower is equipped with an air director cone and the patented Aim-N-Shoot control lever to allow the operator to direct the air stream up or down as required to assist in moving debris. -
Page 8: Maintenance
FORCE SP BLOWER Owner’s Manual MAINTENANCE PERIODIC MAINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Use Daily or Every 5 Hours Every 100-150 Hours Inspect for worn or damaged parts Check for excessive vibration ... - Page 9 FORCE SP BLOWER Owner’s Manual BELT REPLACEMENT 1. Wait for engine to cool and disconnect spark plug. 2. Follow the impeller removal steps (2-5 on page 8). 3. Remove the four bolts (item #8) holding the back plate (item 4) to the back housing (item #6).
-
Page 10: Troubleshooting
FORCE SP BLOWER Owner’s Manual TROUBLESHOOTING Problem Possible Cause Solution Abnormal vibration Loose or out of balance impeller. Check impeller and replace if required. Debris in impeller. Clear debris with compressed air or a backpack blower (see Fig . 8 and 9 below).* Loose engine. -
Page 11: Maintenance Record
FORCE SP BLOWER Owner’s Manual MAINTENANCE RECORD Date Service Performed Part No 440314 Form No F110215B... -
Page 12: Illustrated Parts And Parts List
FORCE SP BLOWER Owner’s Manual FORCE SP PARTS DRAWING Part No 440314 Form No F110215B... - Page 13 FORCE SP BLOWER Owner’s Manual FORCE SP PARTS LIST F1302SPH F902SPH F902SPS F1802SPV ITEM NO. DESCRIPTION PART NUMBER QTY. PART NUMBER QTY. PART NUMBER QTY. PART NUMBER QTY. ENGINE 13 HP HONDA GX390 440018 ENGINE 9 HP HONDA GX270 430287...
- Page 14 FORCE SP BLOWER Owner’s Manual FORCE SP PARTS LIST F1302SPH F902SPH F902SPS F1802SPV ITEM NO. DESCRIPTION PART NUMBER QTY. PART NUMBER QTY. PART NUMBER QTY. PART NUMBER QTY. PIN CLEVIS 1/4 X 3/4 440124 440124 440124 440124 HITCH PIN CLIP .051 X 3/4"...
-
Page 15: Declaration Of Conformity
FORCE SP BLOWER Owner’s Manual Руccкий Latviešu English Suomi Slovenščina български език Français Nederlands Čeština Slovák Ελληνικά Norsk Svenska Dansk Hrvatski Polski Türkçe Deutsch Magyar Português Română Español Italiano Lietuvių eesti keel Δήλωση συμμόρφωσης ΕΚ Deklaracja zgodności UE EC Declaration of Conformity Декларация... - Page 16 Ölçülen Ses Gücü Garantili Ses Gücü tr M odel Operatörün Kulağındaki Ses Basınç Seviyesi (1) M akine Net Gücü El/Kol Titreşimi (2) Ağırlı k Seviyesi Seviyesi F902SPS 108 dB(A) 107 dB(A) 87 dB(A) 6.6 kW 9.44 m/s 64 kg F902SPH 110 dB(A)
- Page 17 FORCE SP BLOWER Owner’s Manual (1) ISO 5395-1:2013 F.7 (EN 4871:1996) (2) ISO 5395-1:2013 G.8 (EN 12096:1997, D.1) Miejsce produkcji / Osoba odpowiedzialna za Manufacturing Place / Keeper of Documentation Τόπος κατασκευής / Υπεύθυνος τήρησης αρχείων Място на производство / Архивар przechowywanie dokumentów τεκμηρίωσης...
