2. Unboxing

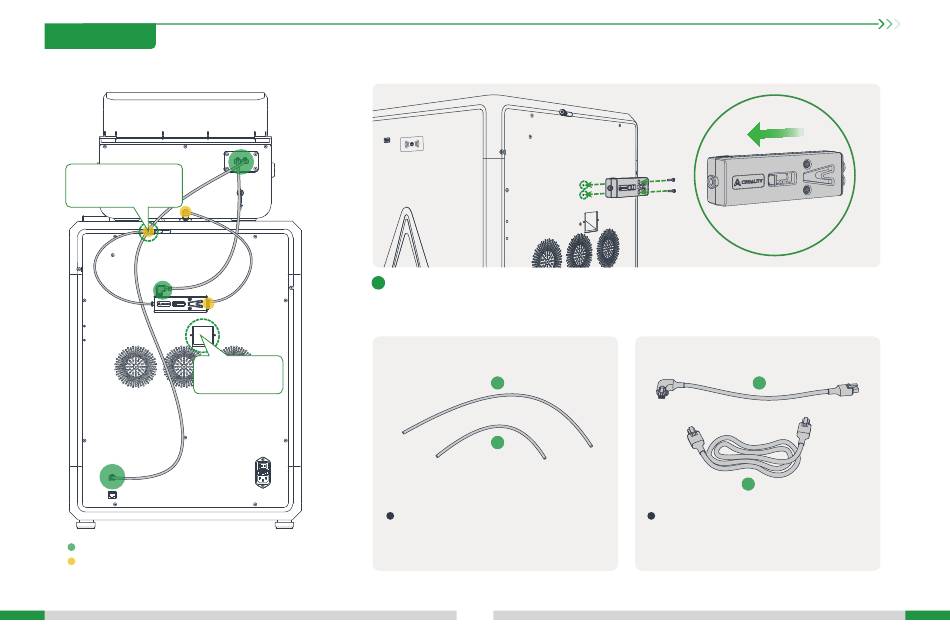

2.3 Connecting CFS

Note: the 485 cable needs to
be clamped at the Teflon
tube joint.
Please do not block
the waste chute!
The green circle is the connection point of the 485 cable;
The yellow circle is the connection point of the PTFE tube.
2.3.1 Install the filament buffer
1
Install the filament buffer on the back of the printer and tighten it with two buffer screws; pay
attention to the direction of the buffer, do not install it in a wrong direction;
2.3.2 Connect the PTFE tube and 485 cable
a
b
The longer PTFE tube a is used to connect the
CFS and the buffer;
The shorter PTFE tube b is used to connect the
buffer and the printer.
10
c
d
The shorter 485 cable c is used to connect the
CFS and the buffer;
The longer 485 cable d is used to connect the
CFS and the printer.
