- Page 1 K2 Plus User Manual K2 Plus 3D Printer V 1.6_EN...
- Page 2 Creality is always ready to provide you with high-quality services. If you encounter any issues or have any questions when using our products, please use the contact information at the end of this manual to contact us. To further improve your user experience, you can find more about our devices via the following methods: User manual: You can find instructions and videos in the USB flash disk provided with the printer.
- Page 3 11. Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes; Creality will not be responsible for any violators' legal liability under any circumstance;...
-
Page 4: Table Of Contents
······················································································· 14-14 3.1 User Interface ······································································· 3.2 Loading Filament From Spool Holder 15-16 ············································································· 3.3 Loading Filament From CFS 17-17 ······························································································ 18-21 4. First Use ······················································································· 18-18 4.1 Filament Setup ······························································································ 4.2 Print 19-19 ··················································································· 4.3 Creality Print Slicing 20-21... -
Page 5: Printer Information

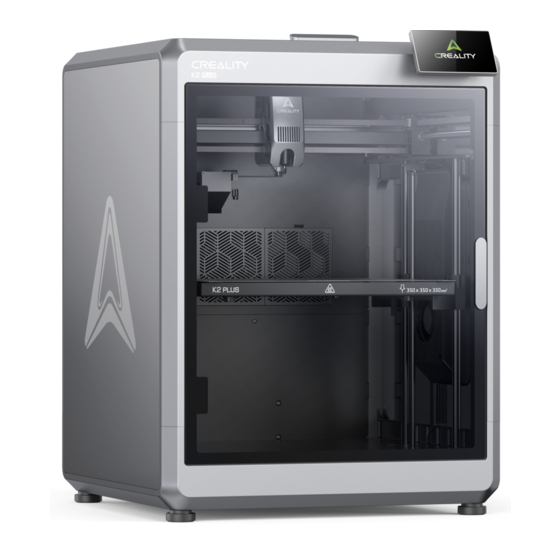

1. Printer Information 1.1 Packing List Printer Touch Screen Screen Base Spool Holder Filament Quick Installation Guide K2 Plus After-Sales Service Card Scan the code to know more FR Pyc. PT-BR E-mail: cs@creality.com V2.2 V1.0 V1.0 PTFE Tube Tool Box... - Page 6 1. Printer Information TOOL BOX Screwdriver Bits Kit Nozzle Cleaner Cutting Plier Scraper USB Flash Disk Universal Handle Hexagonal Wrench Socket Spanner Lubricating Grease Glue Stick Tips: the above accessories are for reference only. Please refer to the physical accessories. Unboxing wrench...
-
Page 7: About The Printer
1.2 About the Printer Screen PTFE Tube Joint Extruder USB Port Camera RFID Identification Nozzle Wiper Spool Holder Exhaust Fan*2 Waste Chute Side Fan (right) Chamber Heating Fan Power switch Creality 485 Cable Side Fan (left) Port Ethernet Port Power Socket... - Page 8 1. Printer Information 1.2 About the Printer Extruder Cover Extrusion Assembly Cutter Leveling Sensor Heat Break Fan Hot End Model Fan Nozzle Camera Extruder bottom...
-
Page 9: Equipment Specifications
4.3-inch color touch screen Chamber camera Nozzle camera Power loss recovery Automatic refilling Lighting lamp Air filter Active chamber heating Slicing software Creality Print 5.0 and higher Working mode USB flash drive /Ethernet/Wi-Fi Printing platform Flexible printing plate Leveling method Automatic leveling... -
Page 10: Equipment Size
1. Printer Information 1.4 Equipment Size 613mm 90° 986mm 150° Please ensure that there is at least a 10 cm gap between the machine and the wall. -
Page 11: Unboxing
2. Unboxing 2.1 Remove Screw Rod Holder, Hotbed Locking Screws, Camera cover Screw rod holder Remove the left and right screw rod holders. Use the L-shaped wrench to remove the four hotbed locking screws indicated by the yellow label. Remove the camera cover. -
Page 12: Install Accessories
2. Unboxing 2.2 Install Accessories 2.2.1 Install Printer Screen Install the screen base. A. Tear off the screen flex cable sticker; B. Thread the screen flex cable through the screen base any entrance. Connect the screen cable: Pay attention to the direction shown in the figure Snap the screen into the screen base: A. - Page 13 2. Unboxing 2.2.2 Install Spool Holder and PTFE Tube As shown in the figure, align the material rack with the hole on the Connect the Teflon tube: As shown in the figure,connect the two ends of the Teflon tube back of the machine and tighten it with two material rack screws; to the pneumatic joints on the material rack and the machine.
-
Page 14: Connecting Cfs
2. Unboxing 2.3 Connecting CFS 2.3.1 Install the filament buffer Note: the 485 cable needs to be clamped at the Teflon tube joint. Install the filament buffer on the back of the printer and tighten it with two buffer screws; pay attention to the direction of the buffer, do not install it in a wrong direction;... - Page 15 CFS hub outlet (position a); insert the other end into the buffer (position b, any of the four holes); Connect CFS and K2 Plus Creality 485 cable: Both ends of this line are 6-pin Connect CFS and buffer Creality 485 cable: Note that the elbow is...
-
Page 16: Connecting Multiple Cfss For Use
2. Unboxing 2.4 Connecting Multiple CFSs for Use Green is the 485 cable Yellow is the PTFE tube... -
Page 17: Power-On Guide
2. Unboxing 2.5 Power-on Guide ① Follow on-screen prompts to complete the boot program (about 30 minutes); ② Loud sounds during vibration optimization are normal. The current interface is for reference only. Please refer to the latest software/ firmware UI on the official website for updates. -
Page 18: Product Usage
3. Product Usage 3.1 User Interface Nozzle temperature Hotbed temperature Chamber temperature Parameters can be manually set The left side is the navigation bar : Home: In idle state, you can view the temperature of each part of the machine; during printing, you can view the model printing progress and other information on this interface;... -
Page 19: Loading Filament From Spool Holder
3. Product Usage 3.2 Loading Filament From Spool Holder Filament Chip If the filaments support RFID recognition, align the Hang the filament on the spool holder； Thread the filaments into the Teflon tube and push chip on the filaments with the RFID recognition gently until they cannot be pushed;... - Page 20 3. Product Usage During the extruding process, you can observe that the filaments are flowing out of the nozzle Extrude: Push the filament gently by hand, and click “Extrude” on the filament interface. The machine will automatically set the current filament temperature, and will automatically extrude the filament after the heating is completed;...
-
Page 21: Loading Filament From Cfs
3. Product Usage 3.3 Loading Filament From CFS To avoid filament spool getting stuck, do not use cardboard spool with untreated edges or cardboard spool that are deformed as a whole; is the Refresh RFID button, which can be used to read filament. If the reading is successful, the remaining filament and filament color will be displayed. -
Page 22: First Use
4. First Use 4.1 Filament Setup Put in filament and wait for tightening (RFID filament does not need to be edited, in case of non-RFID filament, "?" will be displayed after reading, and filament needs to be edited manually); The current interface is for reference only. Please refer to the latest software/firmware UI on the official website for updates. -
Page 23: Print
4. First Use 4.2 Print The area is the color and type of the material contained in the print file. For example, the green background PLA in the figure indicates that green PLA is required; The area is the state after the mapping of the print file to the filament bin is completed. For example, there is no green PLA in the filament bin, and the blue PLA is automatically selected;... -
Page 24: Creality Print Slicing
4. First Use 4.3 Creality Print Slicing 4.3.1 Software Download and Installation Log in to the Creality Cloud website to download Creality Print 5.0 or above slicing : https://www.crealitycloud.com/software-firmware/software/creality-print ； Creality Print 4.3.2 Bind Machine to LAN Check the machine IP on the machine screen: Settings →... - Page 25 Click "Slice Plate", and click "LAN Printing" after slicing is completed; Select the bound printer; For more detailed slicing software usage tutorials, please log in to the Creality 3D official Wiki: https://wiki.creality.com/en/software/update-released The current interface is for reference only. Please refer to the latest software/firmware UI on the official website for updates.
-
Page 26: Fcc Warning
FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 27 Due to the differences between different machine models, the actual objects and the images can differ. Please refer to the actual machine. The final explanation rights shall be reserved by Shenzhen Creality 3D Technology Co., Ltd. SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD.
