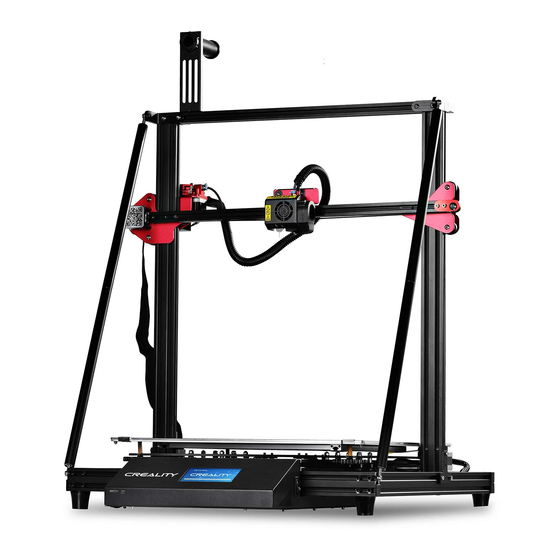

CR-10 Max 3D Printer User Manual
This User Manual is prepared for standard CR-10 Max.
Please plug the power cord into a three-hole power jack.
Detailed instructions for use are available in the TF card.
V.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR-10 Max and is the answer not in the manual?

Questions and answers

Summary of Contents for Creality CR-10 Max

  • Page 1 CR-10 Max 3D Printer User Manual This User Manual is prepared for standard CR-10 Max. Please plug the power cord into a three-hole power jack. Detailed instructions for use are available in the TF card. V.1.0...
  • Page 2: Table Of Contents

    CONTENTS Dear Consumers, Thank you for choosing our products. For the best experience, please read the instructions before operating the Printer. Our teams will always be ready to render you the best services. Please contact us via the phone number or e-mail address provided at the end when you encounter any problem with the Printer.
  • Page 3: Introduction

    Parameters 1. Introduction Model CR-10 Max Molding Size 450 x 450 x 470mm Molding Tech. Nozzle Number Slice Thickness 0.1mm-0.4mm Nozzle 0.4mm 0.8mm Diameter Precision ±0.1mm Fliament φ1.75mm PLA File Format STL/OBJ/AMF Working Mode Online or TF card offline Slice Software...
  • Page 4: General List

    2. General List Tool Box Base Frame Printing Platform Gantry Frame Support Rod Filament (1kg) Tool List Image Name Image Name Image Name Wrench & Screw Driver 1 Set Filament Holder Spacer Filament Holder Tube with TF Card & Reader 1 Set Feeler Gauge Nuts...
  • Page 5 Pull rod details Pull rod joint Eye bolt M6 x 35 Name M5 T-nut M6 Nut Pull rod 4pcs L-type pull rod 2pcs connecting fittings Eye bolt M6 x 35 4pcs Pull rod M6 nut 4pcs Set screw M6 x 40 2pcs M5 x 12 Hexagon socket 8pcs...
  • Page 6: Device Installation

    3. Device installation M4X20 Head Cap Screw 4pcs Support Rod 4pcs M6 x 40 Screw rod 2pcs Eye Bolt M6 x 26 2pcs M6 Nut 4pcs M5 x 12 Screw 8pcs M5 T-Nut 4pcs M5X45 4pcs 4. Support Rod Installation 1.
  • Page 7: Cable Connection

    4. Cable Connection Ribbon Cable Plug the power cord into a three- hole power jack.
  • Page 8: Screen Information

    5. Screen Information Screen Information Main Sub Menu Explanation Menu Stop Pause/Continue Automatic Print speed Manual Nozzle temp. Print TF card Select “Print” Hot-bed temp. Cooling Adjust Temperature Continue/Stop up/Stop Automatic PLA \ABS(195°\240°) Leveling Nozzle preheat Refuel Manual Temp Hot-bed preheat Moving Cooling Yes\No...
  • Page 9: Loading Filament

    6. Loading Filament Feeding Preheat Method 1. Method 2. Go through the filament detector to press and hold the extruder spring. Insert the filament to the position of nozzle through the hole on the extruder. Continue feeding until you see filament extrude from the nozzle. Replacing Filament During Printing: 1.
  • Page 10: Bed Leveling

    7. Bed Leveling 1. Tighten four leveling nuts at the bottom of the platform before initial leveling. 2. Select “Settings” → “Leveling Mode” → “Assisted Leveling”, click number ②. The nozzle is too far away from the platform, so the filament fails to adhere to the platform.
  • Page 11  Automatic leveling If you need to do automatic leveling , you can change to it in the following interface: Detailed instructions for use are available in the TF card!
  • Page 12: Software Installation

    8. Software Installation 1. Double click to install the software 2. Double click to Select language → Next → Select your machine → Next → Finish open the software Please refer to the Slice Software User Manual in the TF card for details of software use!
  • Page 13: First Printing

    9. First Printing 1. Slicing Open the software → Load → Select the file → Wait for slicing to finish ,and save the gcode file to TF card. * File name must be English or number. Don’t use Chinese or special symbols 2.
  • Page 14 Tips 1. Terms about after-sales service are available in the after-sales service card. 2. Slight scratch of profile and slight tilt of platform is normal if printing can still be done smoothly. 3. Users must abide by laws and regulations in the location of machine and corresponding countries/regions and adhere to work ethics and are strictly prohibited from using our 3D printers to print any product or object that violate laws and regulations in the location of machine and corresponding countries /regions to make...
  • Page 16 The revision date: July 1 ,20 SHENZHEN CREALITY 3D TECHNOLOGY CO.,LTD. 11F & Room 1201,Block 3,JinChengYuan,Tongsheng Community,Dal ang,Longhua District,Shenzhen,China,518109 Official Website: www.creality3d.cn Tel: +86 0755-85234565 E-mail: info@creality3d.cn cs@creality3d.cn...
