Summary of Contents for Sartorius PMA 35D

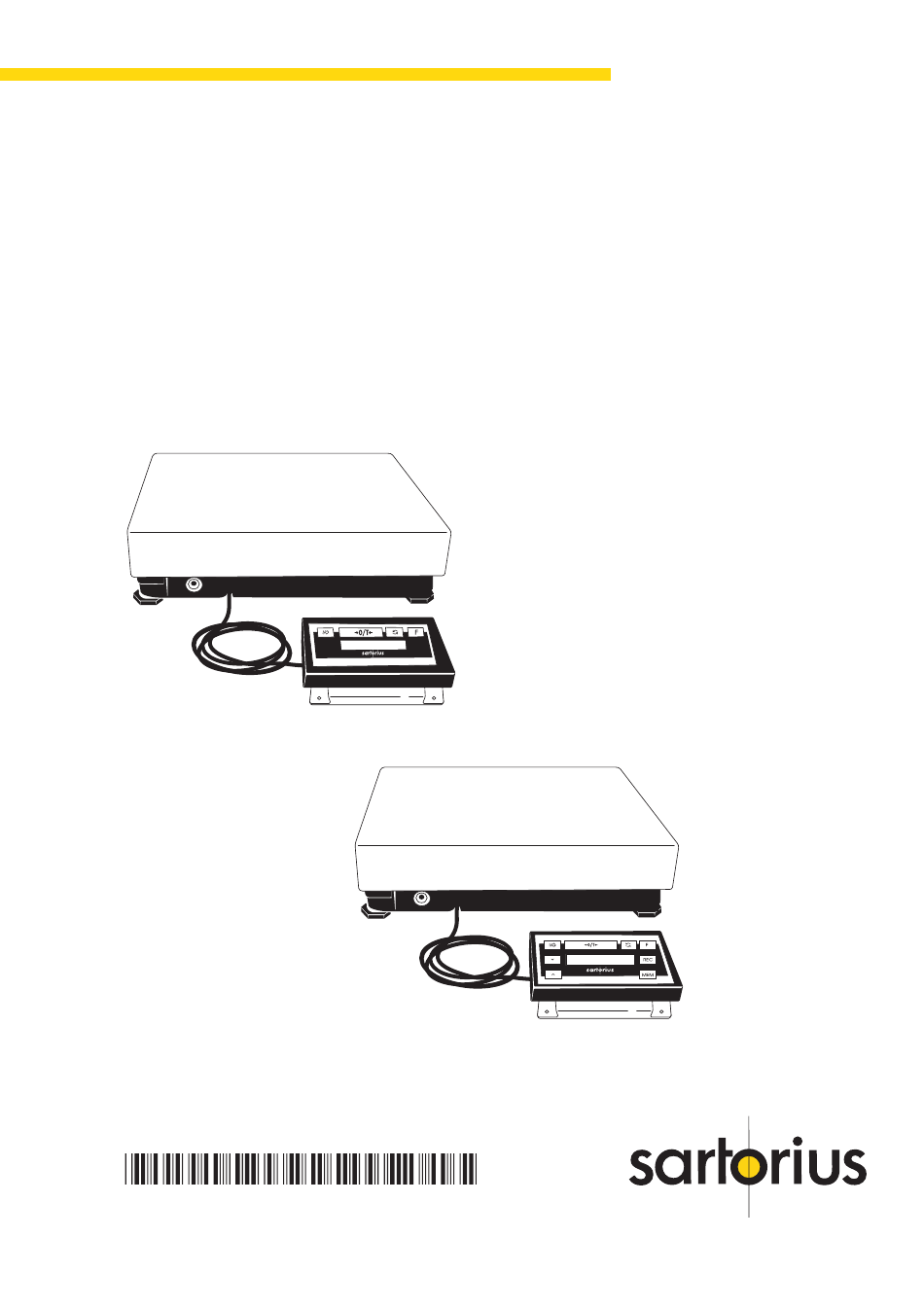

- Page 1 98648-008-36 Sartorius PMA 35D, PMA 35D-000C Electronic Paint-Mixing Scales Installation and Operating Instructions...
- Page 2 4 = Tare key 5 Display 6 w key (TOGGLE) On the PMA 35D/35D-000C, you can toggle to two decimal places – from 0.5 g to 1.0 g – within the entire weighing range of – 0.5 g to 35 kg –...
- Page 3 Check that the voltage rating of the AC adapter matches that of your local line voltage (mains supply). G If it does not match your local line voltage, contact your Sartorius office or dealer. Use only original Sartorius AC adapters.
-
Page 4: Operating The Scale
Operating the Scale A self-test is run automatically. If a different readout is Press the e key (2) to turn the At the end of this test, 0.0 g is displayed, press the = key scale on. displayed. (4) to tare the scale. Weighing with One Decimal Place Place an empty paint can on the load plate (1). - Page 5 Formulation Mode (Calculation by a Factor) This mode enables you to weigh in amounts that are smaller or larger than that of your basic formula for a specific paint color (e.g., 250 ml of a 1-l formula), without having to do any manual recalculation.
- Page 6 Weighing Using the Recalculation Mode (Model PMA35D-000C Only) Let’s suppose that you poured in too much of one color component for a given formula (e.g., 4 components). In addition, let’s assume that you previously poured in all of the other amounts exactly according to each of the values you entered and saved by pressing the [MEM] key (9).
- Page 7 1 1 4 Toggling between two weight units For example, toggling from grams to parts/pound using the w key (6) 2 1 2 To obtain a detailed list of the menu codes, please ask your nearest Sartorius office, dealer or paint supplier.
-
Page 8: Troubleshooting Guide
AC power immediately. Lock the equipment in a secure place to ensure that it cannot be used for the time being. In this case, notify your Sartorius office, dealer or paint supplier. Only service technicians who are authorized by Sartorius and have access to the required maintenance manuals are allowed to perform maintenance and repair work on the equipment. - Page 9 Industrial environment Note: The operator shall be responsible for any modifications to Sartorius equipment and for any connections of cables or equipment not supplied by Sartorius and must check and, if necessary, correct these modifications and connections. On request, Sartorius will provide information on the minimum operating...
- Page 10 Specifications PMA 35D PMA35D-000C Model Weight range Readability 0,5/1 0,5/1 Tare range (subtractive) – 35 – 35 Max. overload capacity Max. linearity < 2 < 2 Repeatability < g Sensitivity drift < + 10 ppm at + 10° C to 30° C...
- Page 12 All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior written permission of Sartorius AG. The status of the information, specifications and illustrations in this manual is indicated by the date given below.
