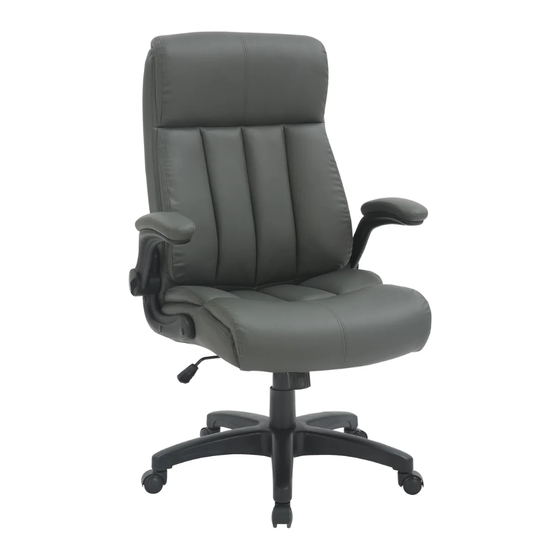

Medium Back Executive Office
Chair with Flip-up Arms

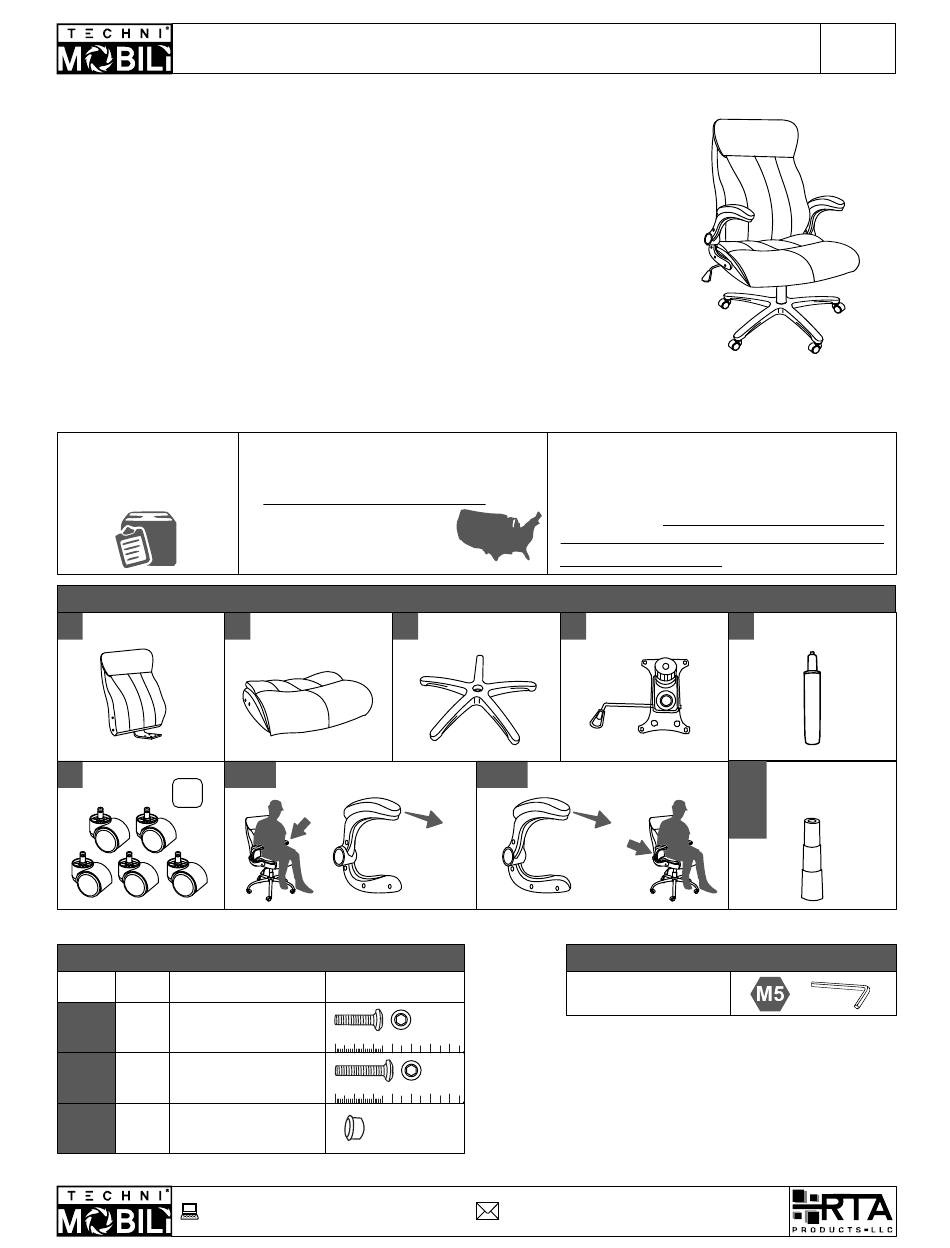

MODEL RTA-4902
ASSEMBLY INSTRUCTIONS
Do a quick inventory
of all the parts and
hardware listed below.
A
B
Backrest
F
G-L
Casters
x5
HARDWARE LIST
Part # QTY SIZE/Description
I
4
M6x20
J
12
M6x25
K
8
Hole caps
technimobili.com
RTA-4902
REV.2-MRY-A8567-1124
For Support, assembly questions
& Replacement Parts within the
48 Contiguous United States:
Please email us at:
support@rtaproducts.com
MAIN PARTS LIST
C
Seat
5-Leg star base
Left armrest
(Front)
Item
mm 10 20 30 40 50 60
mm 10 20 30 40 50 60
Replacement Parts for International
Customers & AK-HI-PR orders:
RTA Products will replace the part free of
charge, while the customer is responsible
for shipping costs plus any International
local taxes or duties.
D
Mechanism
G-R
Right armrest
(Front)
INCLUDED TOOLS
M5 Allen Wrench
support@rtaproducts.com
P.1
Thank you for
purchasing our product!
E
Lift cylinder
H
Covers for lift
cylinder
x1
Set
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Techni Mobili RTA-4902
Summary of Contents for Techni Mobili RTA-4902
- Page 1 RTA-4902 Medium Back Executive Office Chair with Flip-up Arms MODEL RTA-4902 ASSEMBLY INSTRUCTIONS REV.2-MRY-A8567-1124 Thank you for purchasing our product! For Support, assembly questions Replacement Parts for International Do a quick inventory & Replacement Parts within the Customers & AK-HI-PR orders:...
- Page 2 RTA-4902 ASSEMBLY STEPS STEP 1 FIRST: Attach F to THEN: Insert E in C using pressure. the middle of C and cover it with H. (x5) STEP 2 Assemble D to B with screws I making sure the tilt knob faces (x4) towards the FRONT.
- Page 3 RTA-4902 ASSEMBLY STEPS STEP 4 Join the seat with the base making sure E enters into D. STEP 5 Assemble G-L and G-R to A and B in their respective sides with screws J, but screw loosely to allow flexibility on both sides.
- Page 4 RTA-4902 CHAIR'S FUNCTIONS HEIGHT FLIP Flip arms UP Pull Handle UP. or DOWN. TILTING Turn CLOCKWISE for TENSION Pull Handle OUT less tension (-); to UNLOCK; COUTERCLOCKWISE Push Handle IN for more tension (+). to LOCK. With less tension, the tilting feels easier.
