PARTS LIST
ATTENTION: Before you begin the assembly,
make sure that all parts are included in good
condition.
Seat, x1
Connectors, x2
A
G
(Armrests)
Armrests, x2
Washers, x4
B
H
(Mechanism)
Star Base, x1
M8x25mm, x4
C
I
(Mechanism)
Mechanism,
M8x60mm
D
J
x1
(Armrests)
Hydraulic
M8x50mm, x2
E
K
Gas Lift, x1
(Armrests)
Caster, x5
Allen wrench, x1
F
L
ATTENTION:
⚠ Follow the instructions step by step.
⚠ To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
⚠ Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
⚠ Using the wrong size of screws on a part could result in damage to the screw or the part.
Insert the casters (F) into the legs of the base(C) using pressure,
then place the gas lift (E) in the middle of the base as shown.
With the seat (A) positioned as shown, assemble the
armrests (B) to the back using connectors(G) and screws(J) ,
, x2
assemble the armrests to the seat using screws(K) as shown.
☛
Both arms are the same.
☛
Pay attention to the correct screws you have to use.
G
B
G
J
K

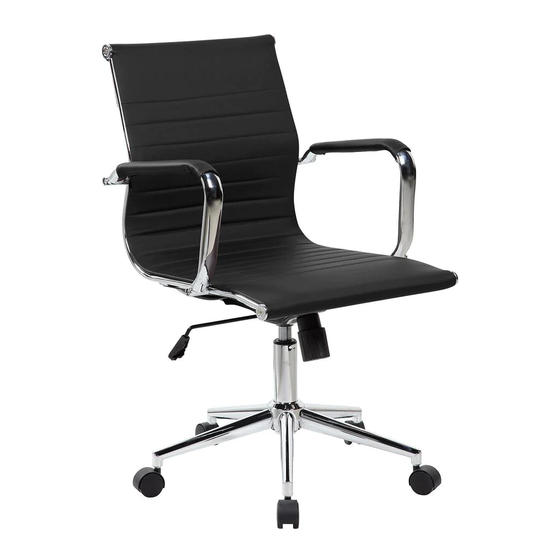

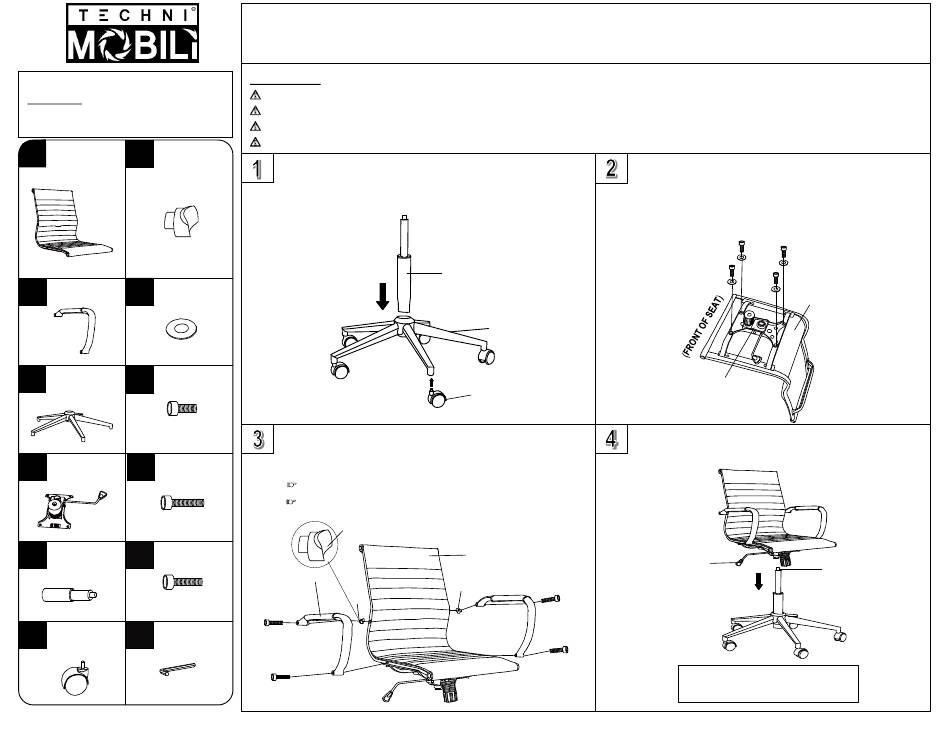

ASSEMBLY INSTRUCTIONS FOR CHAIR MODEL
RTA-4602
E
C
F
A
G
J
K
With the seat (A) positioned as shown, assemble
the mechanism (D) using washers (H) and screws (I).
Please note that once the chair is assembled, the handle
will be on the RIGHT side and the tension knob will face
towards the front of the chair.
I
I
H
H
I
I
H
H
A
D
Place the seat over the base, making sure the tip of the gas
lift enters into the hole of the mechanism .
D
Tighten well all the screws before you
sit on the chair for the first time.
E
