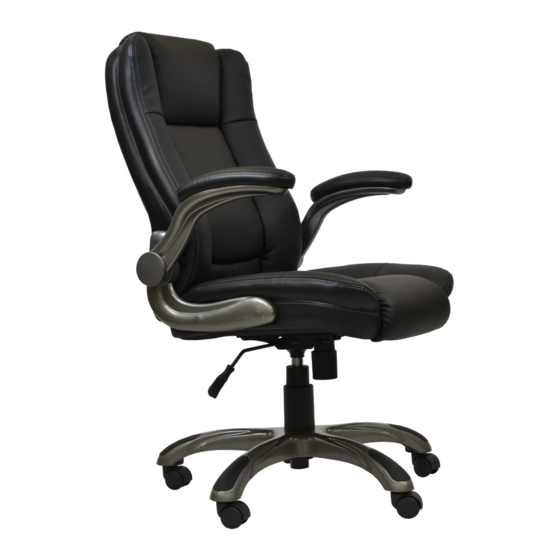

Techni Mobili RTA-4902 Assembly Instructions

PARTS LIST

ATTENTION: Before you begin to assemble the
product, please make sure that all the parts are
included in the package and in good condition.
A Backrest G Armrest
x1 Right x1 Left
x1
When you seat on the
chair, not looking at it.
B Seat H Covers for
Gas Lift (Set)
x1 x1
I 5/16x25mm
x2
C Star Base
x1
(Mechanism)
J
5/16x20mm
x2
D
Mechanism
x1
(Mechanism)
K 1/4x25mm
x8
(Armrests to
E
Hydraulic
seat/backrest)
Gas Lift
x1
L Hole Covers
x8
(Armrests)
Casters
F
M Allen wrench
x5
x1

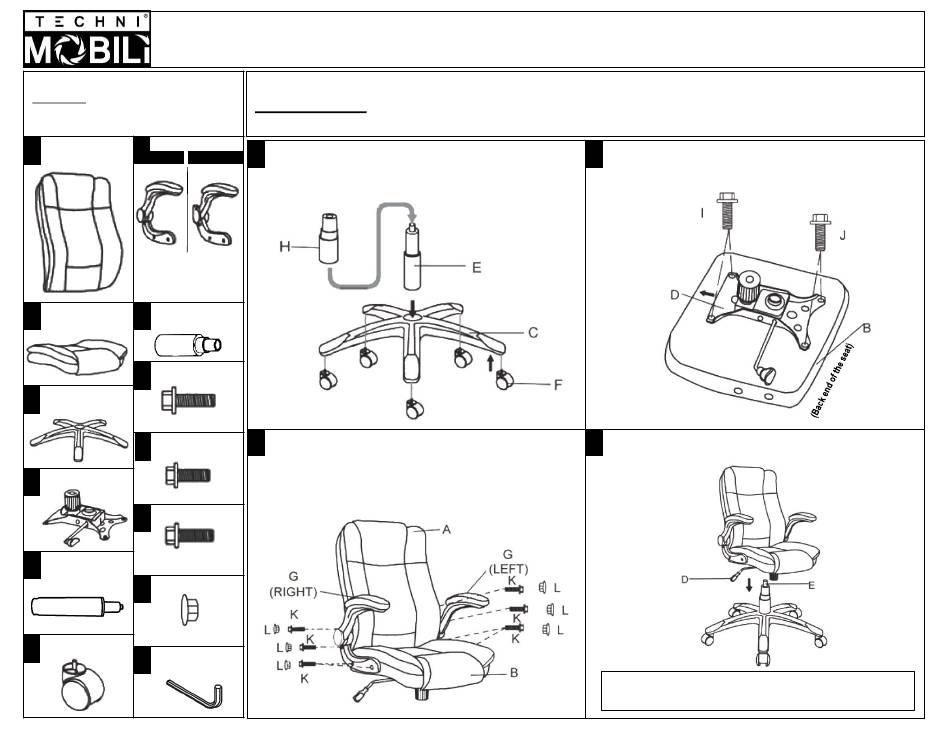

ASSEMBLY INSTRUCTIONS
CHAIR STYLE RTA-4902
• Follow the instructions step by step.
ATTENTION:
• To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
• Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
• Using the wrong size of screws on a part could result in damage to the screw or the part
1
Insert the casters (F) into the legs of the base (C) using pressure,
then place the gas lift (E) in the middle of the base and cover it
with (H) as shown.
3
First assemble the LEFT armrest (G) to the backrest (A) and the
seat (B) using screws (K) BUTLEAVE ALL THE SCREWS VERY
LOOSE. Then assemble the RIGHT armrest (G) using screws (K).
Finally, tighten all the screws and cover the holes with (L) as
shown.
2
Place the seat (B) upside-down with its back end towards you as
shown. Use screws (I) at the front and screws (J) at the back to
assemble the mechanism (D) with its handle facing to your LEFT
as shown.
4
Place the top parts over the base parts making sure the tip of the
gas lift enters into the hole of the mechanism.
Before seating and using the chair for the first time, make sure
that all screws are properly tightened.
