MODEL RTA-4837D
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV.072021-0

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-4837D and is the answer not in the manual?

Questions and answers

Related Manuals for Techni Mobili RTA-4837D

Summary of Contents for Techni Mobili RTA-4837D

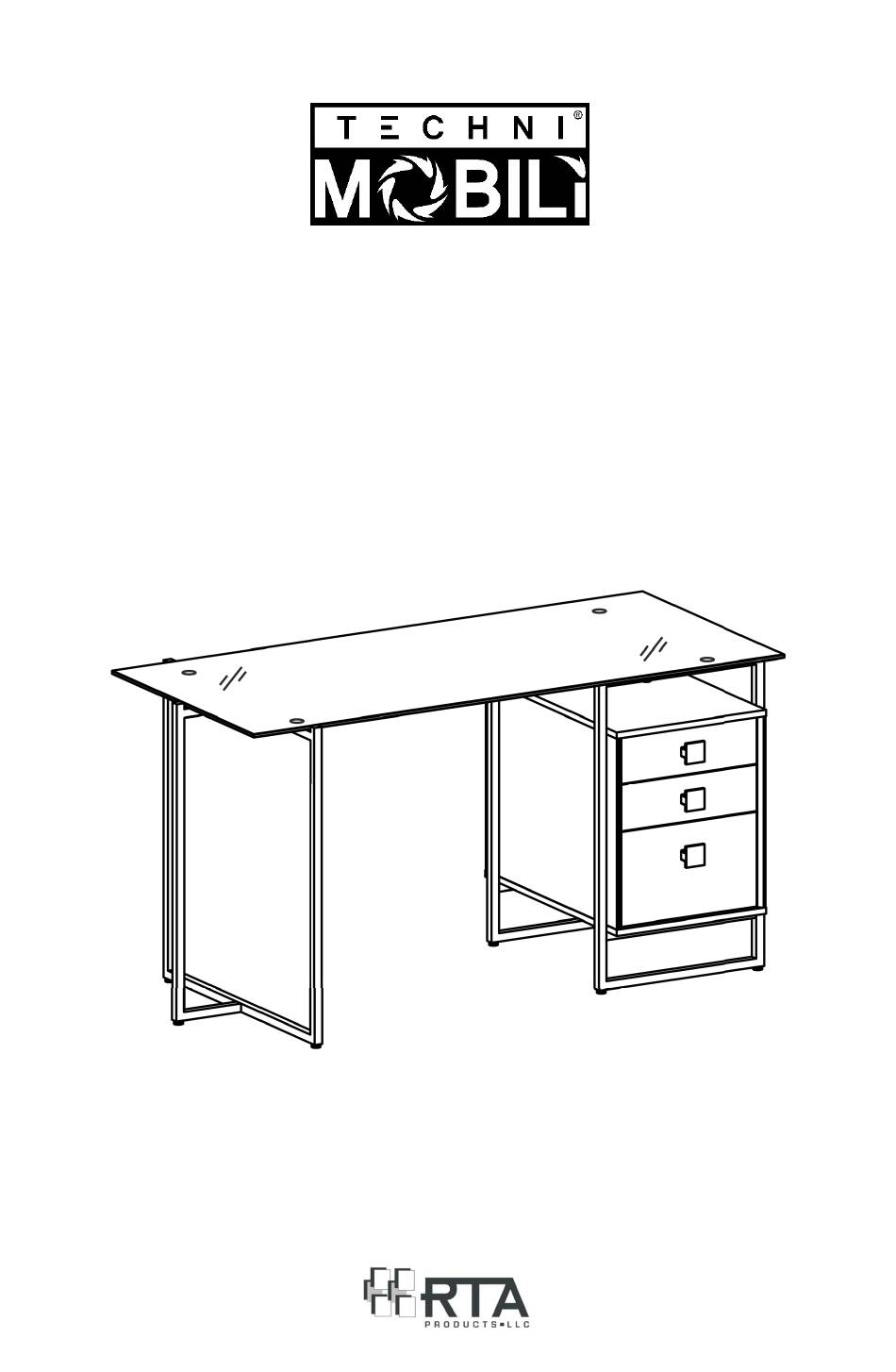

  • Page 1 MODEL RTA-4837D ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.072021-0...
  • Page 2 RTA-4837D • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.

  • Page 3: Main Parts List

    RTA-4837D MAIN PARTS LIST Left support leg Left structure Right front structure Right back structure Top horizontal structure Glass tabletop Left panel Left panel Right panel Right panel Back panel Bottom panel Cabinet top panel Small drawer Sliders Small drawer...
  • Page 4 RTA-4837D MAIN PARTS LAYOUT (FOR REFERENCE): LIST OF SCREWS AND FITTINGS PART ITEM PART ITEM M6x15 M6 Nut M6x25 Ø16MM M6x30 M6x40 Allen M6x50 Wrench M4x28 Screwdriver ST3x15 Wrench ST4x35 (Spanner)
  • Page 5 RTA-4837D ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. This unit uses cam bolts and locks. The following explains how to use them.
  • Page 6 RTA-4837D BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...

  • Page 7: Assembly Steps

    RTA-4837D ASSEMBLY STEPS STEP 1 Slowly open the sliders 12 until you see the first front hole thru the big hole, then attach them to the front holes on the Left panel 7 and the Right Hardware: panel 8 with screws F.
  • Page 8 RTA-4837D STEP 3 Assemble the Left panel 7 and the Right panel 8 to the back panel 9 with bolts J as shown and as explained in page 4. Hardware: M6x40 Bolt Cam locks alignment STEP 4 Assemble the panels 7 and 8 to the Bottom panel 10 with bolts J as shown and as explained in page 4.
  • Page 9 RTA-4837D STEP 5 Assemble the Cabinet top panel 11 to the side panels 7 and 8 with bolts J as shown and as explained in page 4. Hardware: M6x40 Bolt Cam locks alignment STEP 6 • Carefully flip the cabinet to have its front facing down.
  • Page 10 RTA-4837D STEP 7 • With the help of another person, flip the cabinet 180 degrees towards the RIGHT or the LEFT (but do not flip towards the front or the back) Hardware: to have its front opening facing towards the top as shown.
  • Page 11 P.10 RTA-4837D P.10 STEP 9 • Secure the structures 3 and 4 to the Bottom panel 10 with screws C. • Attach the Glide studs 22 to the structures 3 and 4. Hardware: M6x30 STEP 10 • With the help of another person, bring the unit upright.
  • Page 12 P.11 RTA-4837D P.11 STEP 11 Attach the Glide studs 22 to Left support leg 1 and Left structure 2. Hardware: STEP 12 • First assemble the Left structure 2 to the structure 5 with screws D, washers I and nut caps H. The screws go from outside through 2 and Hardware: 5, and secured on the other side with the washers and nuts.
  • Page 13 P.12 RTA-4837D P.12 STEP 13 From behind the unit, attach the Small support bar 24 to the structures 2 and 5 with screws A. Hardware: M6x15 STEP 14 With the help of another person, carefully place the Glass tabletop 6 over...
  • Page 14 P.13 RTA-4837D P.13 STEP 15 For each of the small drawers, attach the Drawer connectors 25 to the inside of the Drawer side panels 14 and 15 with screws F. Hardware: ST3x15 STEP 16 For each of the small drawers, assemble the back panel 17 to the side panels 14 and 15 with screws G.
  • Page 15 P.14 RTA-4837D P.14 STEP 18 • For each of the small drawers, assemble the Front panel 13 to the Connectors 25 with screws A from the inside. Hardware: • For each of the small drawers, attach the Handle 23 to the Front panel 13 with screws E from inside.
  • Page 16 P.15 RTA-4837D P.15 STEP 21 • Assemble the Front panel 18 to the Connectors 25 with screws A from the inside. Hardware: • Attach the Handle 23 to the Front panel 18 with screws E from inside. M6x15 M4x28 The groove go facing...
  • Page 17 P.16 RTA-4837D P.16 ALL DONE! Give yourself a nice pat on the back. You did a great job!
  • Page 18 P.17 RTA-4837D P.17 AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS 110 Lbs. (50 Kg) 66 Lbs. (30 Kg) 11 Lbs. (5 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
  • Page 19 P.18 RTA-4837D P.18 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
  • Page 20 P.19 RTA-4837D P.19 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
