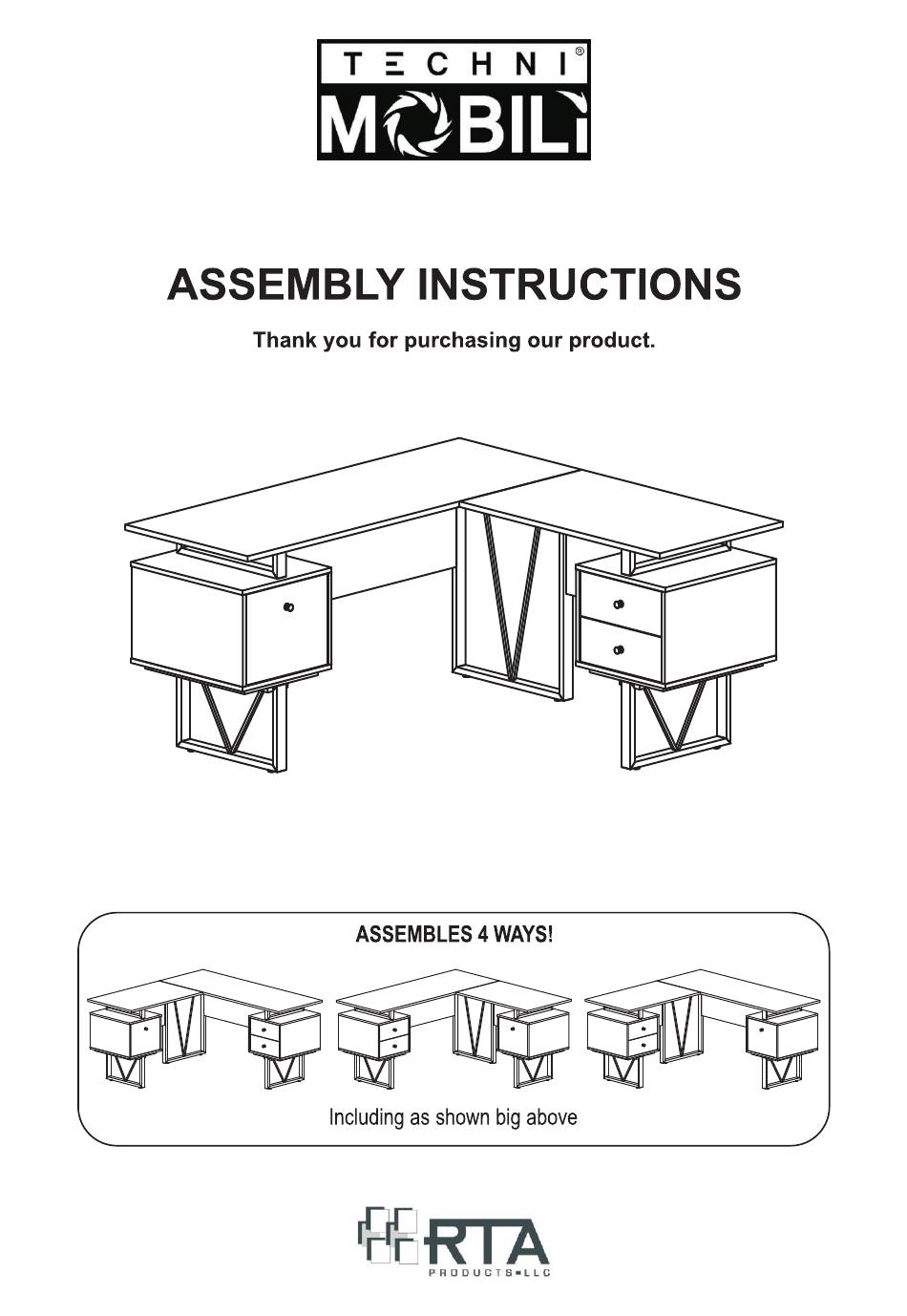

  • Page 1 MODEL RTA-4809DL REV.042021-1 A03 210301...
  • Page 5 QTY. QTY. PART ITEM PART ITEM M6x30 M4x20 M6x40 ST3X15 (bolt) M6x12 ST4X35 Φ 6MM M6x25 M6x40 M6x45 M6x65...
  • Page 6 ☛ This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Alignment: The cross points towards the panel with the bolt.
  • Page 7 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ ❷ ❽ ❸ ❾ ❹ ❿ ❺ ❻...
  • Page 8 ASSEMBLY STEPS Insert the studs 8 into the bottom of the leg structures 1 and 4. STEP 1 Assemble the drawer connectors 22 to the big drawer side panels 24 and 25 STEP 2 using screws I as shown. ST3x15 The groove on the panels face down and towards the inside First assemble the file drawer front panel 23 to the connectors 22 using screws...
  • Page 9 First assemble the handle 9 to the file STEP 5 drawer front panel 23 using screw H, then insert the hanging file tubes 28 from behind through the back panel 27 and into the front panel 23 as shown. M4x20 Assemble the drawer connectors 22 to the small drawer side panels 30 and 31 STEP 6 using screws I as shown.
  • Page 10 With the file drawer on the LEFT, and the long tabletop on either side: Follow the steps that start with A1 on page 10. With the file drawer on the RIGHT, and the long tabletop on either side: Follow the steps that start with B1 on page 20.
  • Page 11 P.10 P.10 Open the sliders 21 slowly until you are able to see the front hole through the STEP A1 big opening , and using screws I assemble the sliders to the cabinets side panels 12, 13, 14 and 15 on the front hole as shown. ST3x15 On panels 12 and 13 place the sliders only at the bottom...
  • Page 12 P.11 P.11 Assemble the cabinet back panel 16 to the side panels 12 and 13, and to the STEP A3 side panels 14 and 15 using bolts B as shown and as explained in page 5. M6x40 Bolt Cam locks alignment Assemble each of the cabinet top panels 10 to the side panels 12 and 13, and STEP A4...
  • Page 13 P.12 P.12 Assemble the cabinet bottom panel 11 to the side panels 12 and 13, and to STEP A5 14 and 15 respectively using bolts B as shown and as explained in page 5. M6x40 Bolt Cam locks alignment Assemble the large support structures 2 to the bottom panels 11 on both STEP A6 cabinets using screws A as shown.
  • Page 14 P.13 P.13 Assemble the short leg structure 1 to the large support structure 2 on STEP A7 both cabinets using screws A as shown. M6x30 On the LEFT: Follow steps A8 to A14 in pages 14, 15 and 16. On the RIGHT: Follow steps A15 to A21 in pages 17, 18 and 19 (skip pages 14, 15 and 16).
  • Page 15 P.14 P.14 With the help of another person, assemble the long back panel 17 to panel STEP A8 13 using screws E from inside the cabinet, and to the tall leg structure 4 using screws G from outside as shown. M6x40 M6x65 With the help of another person, assemble the short back panel 18 to panel...
  • Page 16 P.15 P.15 Assemble the short support structures 3 to the top panels 10 using screws D STEP A10 and washers K from underneath and from inside the cabinets as shown. The side holes on the support ③ go facing towards the inside of the unit. M6x25 Φ16MM Use screws C to assemble the back horizontal tube 5 and the front horizontal...
  • Page 17 P.16 P.16 Carefully with the help of another person place the long tabletop 19 over the STEP A13 frame on the LEFT side and the short tabletop 20 on the RIGHT side, and assemble them to parts 3, 5, 6 and 7 respectively using screws A from underneath as shown.
  • Page 18 P.17 P.17 With the help of another person, assemble the short back panel 18 to panel STEP A15 13 using screws E from inside the cabinet, and to the tall leg structure 4 using screws F as shown. M6x40 M6x45 With the help of another person, assemble the long back panel 17 to panel STEP A16 14 using screws E from inside the cabinet, and to the tall leg structure 4...
  • Page 19 P.18 P.18 Assemble the short support structure 3 to the top panels 10 using screws D and STEP A17 washers K from underneath and from inside the cabinets as shown. The side holes on the support ③ go facing towards the inside of the unit. M6x25 Φ16MM Use screws C to assemble the back horizontal tube 5 and the front horizontal...
  • Page 20 P.19 P.19 Carefully with the help of another person place the long tabletop 19 over the STEP A20 frame on the RIGHT side and the short tabletop 20 on the LEFT side, and assemble them to parts 3, 5, 6 and 7 respectively using screws A from underneath as shown.
  • Page 21 P.20 P.20 Open the sliders 21 slowly until you are able to see the front hole through the big STEP B1 opening , and using screws I assemble the sliders to the cabinets side panels 12, 13, 14 and 15 on the front hole as shown. ST3x15 On panels 14 and 15 place the sliders only on the bottom...
  • Page 22 P.21 P.21 Assemble the cabinet back panel 16 to the side panels 12 and 13, and to the STEP B3 side panels 14 and 15 using bolts B as shown and as explained in page 5. M6x40 Bolt Cam locks alignment Assemble the cabinet to panels 10 to the side panels 12 and 13, and to the side STEP B4...
  • Page 23 P.22 P.22 Assemble the cabinet bottom panel 11 to the side panels 12 and 13, and to the STEP B5 side panels 14 and 15 using bolts B as shown and as explained in page 5. Cam locks M6x40 Bolt alignment Assemble the large support structures 2 to the bottom panels 11 on both STEP B6...
  • Page 24 P.23 P.23 Assemble the short leg structure 1 to the large support structure 2 on both STEP A7 cabinets using screws A as shown. M6x30 On the LEFT: Follow steps B8 to B14 in pages 24, 25 and 26. On the RIGHT: Follow steps B15 to B21 in pages 27, 28 and 29 (skip pages 24, 25 and 26).
  • Page 25 P.24 P.24 With the help of another person, assemble the long back panel 17 to panel STEP B8 13 using screws E from inside the cabinet, and to the tall leg structure 4 using screws G from outside as shown. M6x40 M6x65 With the help of another person, assemble the short back panel 18 to panel...
  • Page 26 P.25 P.25 Assemble the short support structures 3 to the top panels 10 using screws D STEP B10 and washers K from underneath and from inside the cabinets as shown. The side holes on the support ③ go facing towards the inside of the unit. M6x25 Φ16MM Use screws C to assemble the back horizontal tube 5 and the front horizontal...
  • Page 27 P.26 P.26 Carefully with the help of another person place the long tabletop 19 over the STEP B13 frame on the LEFT side and the short tabletop 20 on the RIGHT side, and assemble them to parts 3, 5, 6 and 7 respectively using screws A from underneath as shown.
  • Page 28 P.27 P.27 With the help of another person, assemble the short back panel 18 to panel STEP B15 13 using screws E from inside the cabinet, and to the tall leg structure 4 using screws F as shown. M6x40 M6x45 Assemble the long back panel 17 to panel 14 using screws E from inside the STEP B16 cabinet, and to the tall leg structure 4 using screws G from outside as shown.
  • Page 29 P.28 P.28 Assemble the short support structure 3 to the top panels 10 using screws D and STEP B17 washers K from underneath and from inside the cabinets as shown. The side holes on the support ③ go facing towards the inside of the unit. M6x25 Φ16MM Use screws C to assemble the back horizontal tube 5 and the front horizontal...
  • Page 30 P.29 P.29 Carefully with the help of another person place the long tabletop 19 over the STEP B20 frame on the RIGHT side and the short tabletop 20 on the LEFT side, and assemble them to parts 3, 5, 6 and 7 respectively using screws A from underneath as shown.
  • Page 31 P.30 P.30 MAXIMUM WEIGHT CAPACITIES •Do not exceed the indicated weight limits. •Do not expose the surfaces to direct sunlight or to extreme environmental conditions. •Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and water, then dry with a clean towel.
