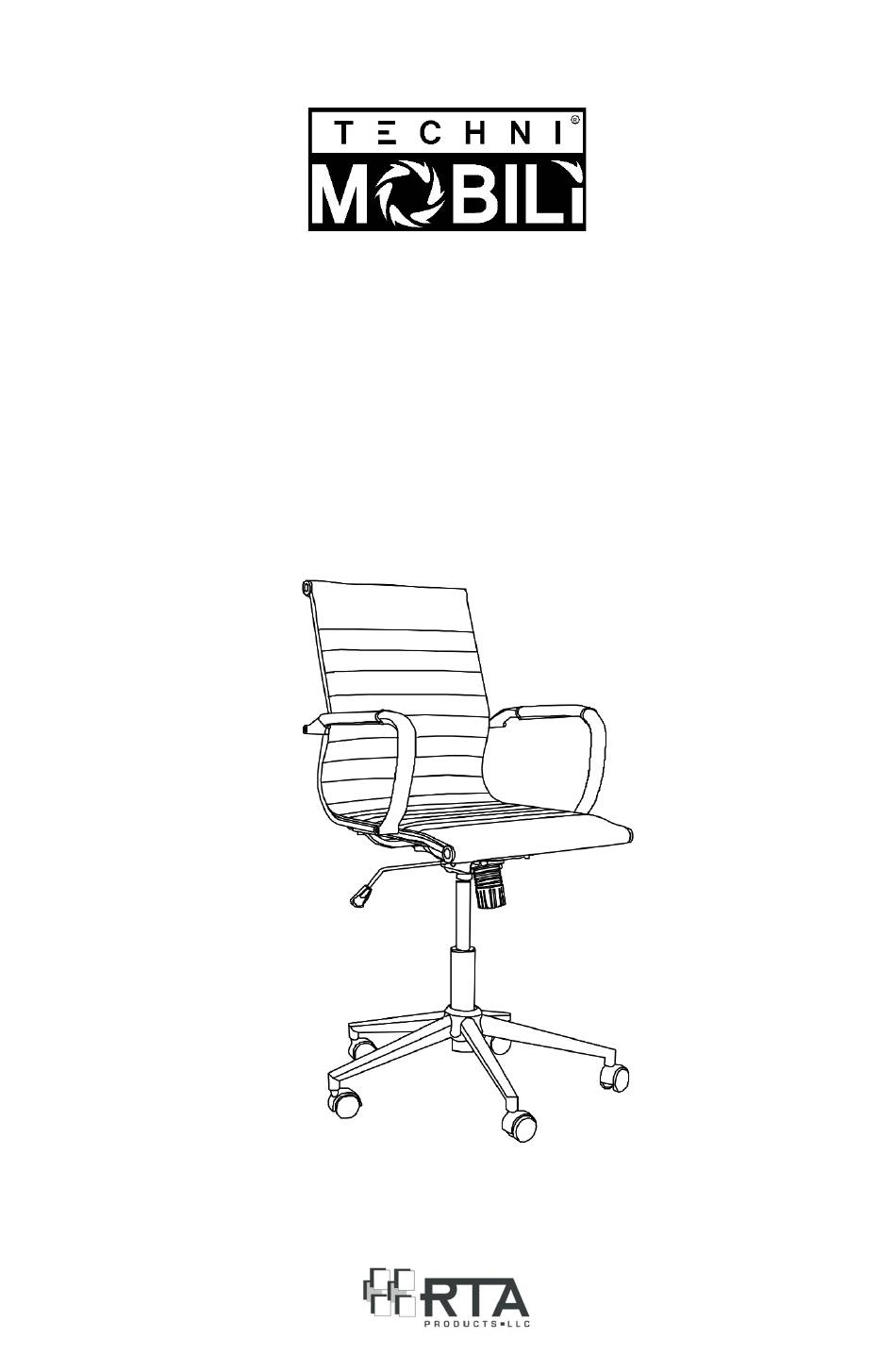

- Page 1 MODEL RTA-4602 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.032021-0...
-
Page 2: Main Parts List
RTA-4602 MAIN PARTS LIST Star base Mechanism Seat Hydraulic gas lift Casters Armrest LIST OF HARDWARE PART ITEM USE FOR Armrests Armrests connectors Washer Mechanism M8x25 Mechanism M8x60 Top of armrest M8x50 Bottom of armrest Allen Wrench... - Page 3 RTA-4602 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ ❻ Do a quick inventory to Make sure you make sure the package understand which hardware contains all the parts and will be used on each step.
- Page 4 RTA-4602 ASSEMBLY STEPS Insert the casters F into the legs of the base C using pressure, STEP 1 then place the gas lift E in the middle of the base as shown. STEP 2 With the seat AB positioned as shown, assemble the mechanism...
- Page 5 RTA-4602 STEP 3 Place the seat over the base, making sure the tip of the gas lift E enters into the hole of the mechanism D. STEP 4 Assemble the armrests G to the backrest AB on both sides using...
-
Page 6: Care And Maintenance
RTA-4602 CHAIR’S FUNCTIONS ① To raise or lower the chair’s height, pull UP the lever that is under the seat. The chair goes down while sitting on it, or up if you lift your body. ② To make the chair tilt freely, pull the same lever OUT horizontally to unlock this function. - Page 7 TASK/KID'S CHAIR: 1-YEAR WARRANTY EXECUTIVE/MANAGER CHAIR: 2-YEAR WARRANTY 1.RTA Products, LLC has warranted the Techni Mobili office chairs to the original purchaser who acquired a new product from RTA Products or its authorized resellers of the product against defects in material or workmanship.
- Page 8 RTA-4602 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
