2. DISASSEMBLY OF THE FANS
CAREFUL! Before handling the electrical parts, make sure that the device is disconnected from the
electrical network.
3. ELECTRIC SCHEME
Switch positions. The position of the switch determines three different fan speeds:
- POSITION "0": The fans operate at MINIMUM speed AUTOMATICALLY when the
appliance is on fire and the thermostat reaches the temperature of 50ºC.
When the flame goes out in the home and the thermostat temperature is below 50ºC,
the fans stop.
IT IS RECOMMENDED! this position when the user wants the fans to stop once the
compact is cold.
- POSITION "1": The fans start at HALF SPEED MANUALLY, in this position the fans do not stop
even if the hearth flame is off and the temperature of the cast iron is below 50ºC.
- POSITION "2": The fans start at MAXIMUM SPEED MANUALLY.
In this position the fans do not stop even if the hearth flame is turned off and the temperature of
the cast iron is below 50ºC.
This position is recommended when a rapid transfer of heat from the home to the room is needed.
DO NOT DISCONNECT THE COMPACT FROM THE ELECTRICAL MAINS. THIS MAY CAUSE THE
ELECTRICAL PARTS TO DETERIORATE

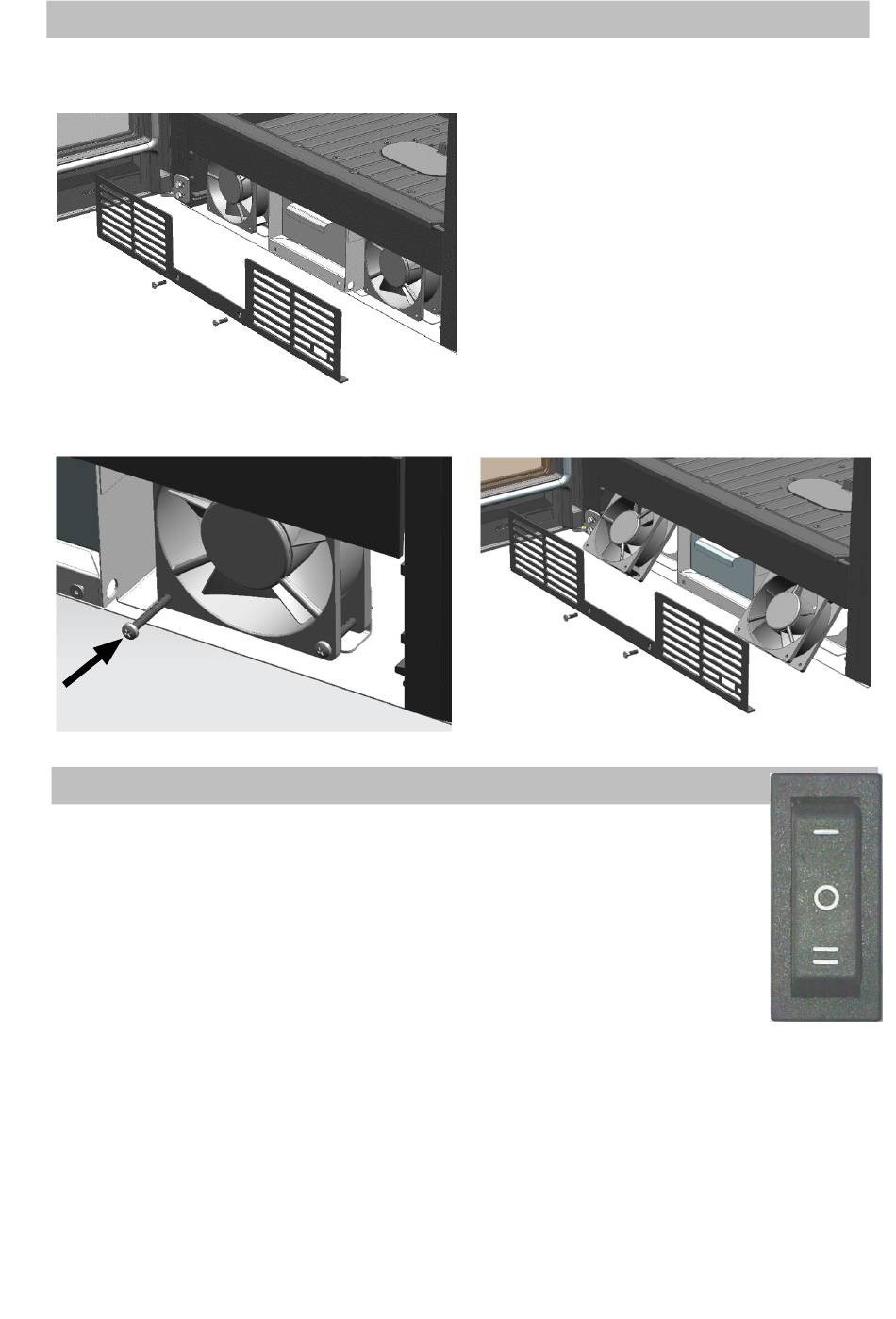

Fig.1
Fig.2
To replace the fans, follow the following
instructions:
1. Release the front grille by loosening the
screws that hold it (Fig.1).
2. Loosen the screws that hold the fans (Fig. 2)
3. Take them out at an angle through the front
mouth. (Fig. 3)
4. Disconnect the fan connection cables.
5. Replace them with another fan
6. Proceed in reverse to reinstall it
Fig.3
