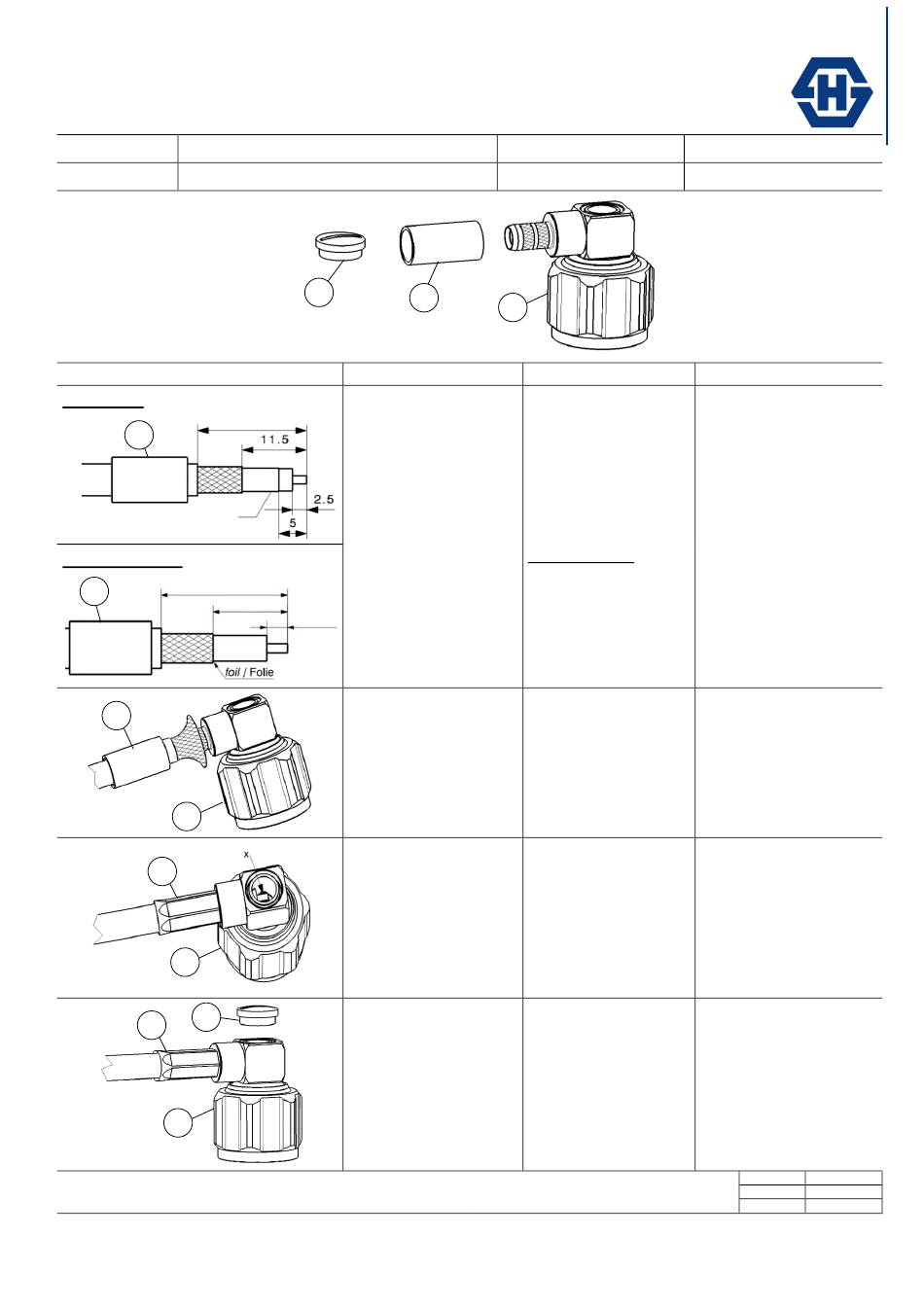

HUBER+SUHNER N Series Assembly Instruction

Assembly instruction
Connector type: 16_N-50-4-115
S_04262_B-01 / SPUMA_240
Suitable cables:
Parts list connector:
Assembly steps:
For S_04...
A
foil / Folie
For SPUMA_240
21
A
A
B
A
B
C
A
B
The cable assembly of R.F. connectors can only be done by well trained assembly stuff and suitable assembly equipment.
Huber+Suhner's skilled stuff and specialised equipment are available to carry out complete R.F. lead-assembly on your behalf.
We mount your connectors on cables at economic prices! Please contact our representative for further details of this service.
C
Process
21
Slide ferrule A onto cable.
Prepare cable according to
diagram.
11.5
±0.2
3.2
Splay out braid and insert
cable in connector body B.
Slide ferrule A over braid
and crimp.
Solder inner conductor to
contact at X.
Screw on cap C into
connector body B.
Series N
Inner conductor contact:
Outer conductor contact:
A
B
Feature / Check
Do not damage inner
conductor, dielectric and
braid of cable.
For SPUMA_240
Foil cutted on same
length as dielectric.
Ensure that braid lies
above the crimp neck, foil
under the crimp neck.
Crimp as close to
connector body B as
possible.
0000238174
Soldered
Crimped (Cavity C)
Tools required
Stanley blade
Scissors
Crimp tool :Cavity C
For large crimp tool and
table press use insert
76_Z-0-4-1
For small crimp tool use
insert 76_Z-0-4-51
Soldering iron
Solder
Screw driver
Revision
Date
Initiator
Deutscher Text: siehe Rückseite
E
26.11.2019
4952 / WIS
