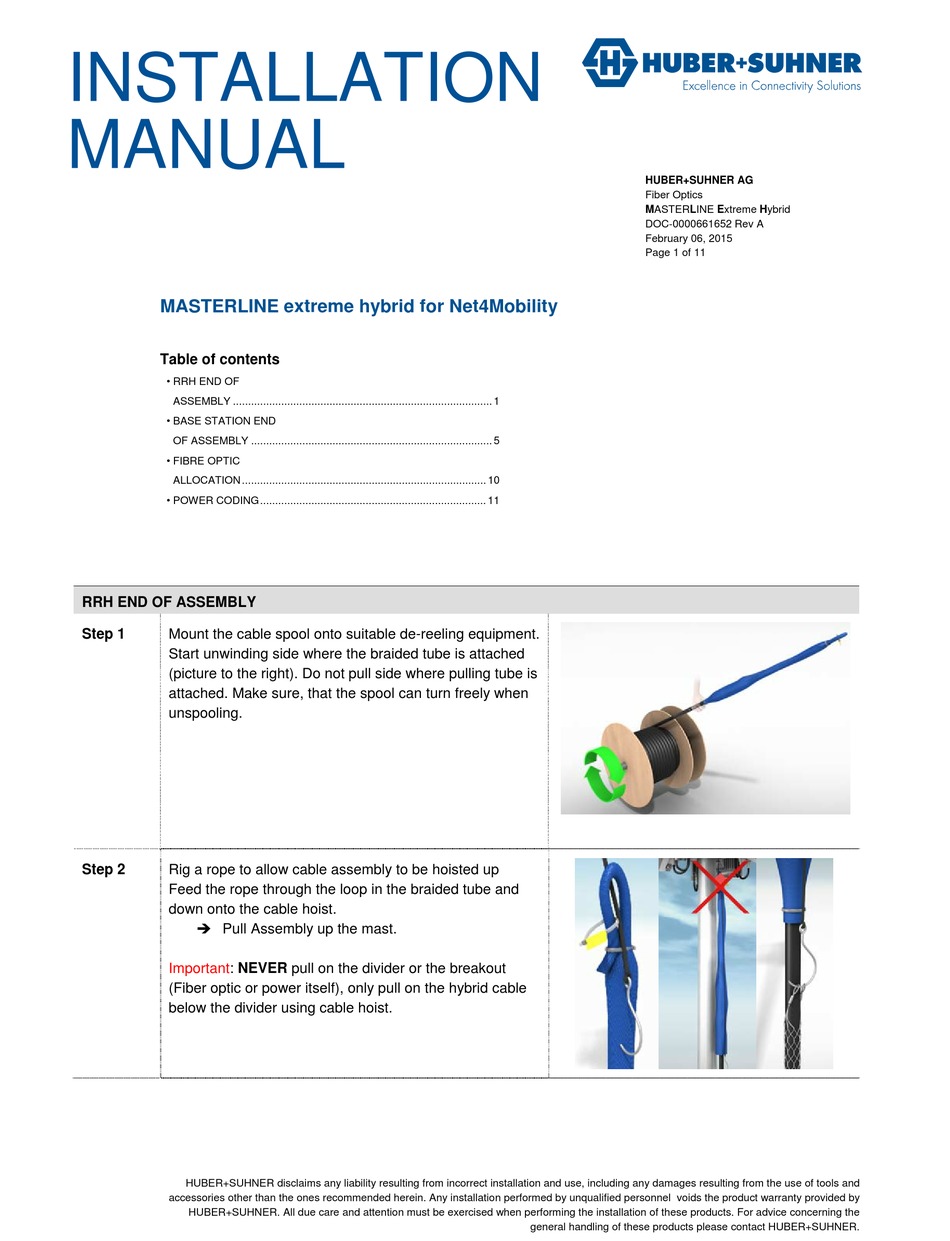

HUBER+SUHNER MASTERLINE extreme hybrid Installation Manual

INSTALLATION
MANUAL
MASTERLINE extreme hybrid for Net4Mobility
Table of contents
• RRH END OF
ASSEMBLY ...................................................................................... 1
• BASE STATION END
OF ASSEMBLY ................................................................................ 5
• FIBRE OPTIC
ALLOCATION ................................................................................. 10
• POWER CODING ........................................................................... 11
RRH END OF ASSEMBLY
Step 1 Mount the cable spool onto suitable de-reeling equipment.
Start unwinding side where the braided tube is attached
(picture to the right). Do not pull side where pulling tube is
attached. Make sure, that the spool can turn freely when
unspooling.
Step 2 Rig a rope to allow cable assembly to be hoisted up
Feed the rope through the loop in the braided tube and
down onto the cable hoist.
 Pull Assembly up the mast.
Important: NEVER pull on the divider or the breakout
(Fiber optic or power itself), only pull on the hybrid cable
below the divider using cable hoist.
HUBER+SUHNER disclaims any liability resulting from incorrect installation and use, including any damages resulting from the use of tools and
accessories other than the ones recommended herein. Any installation performed by unqualified personnel voids the product warranty provided by
HUBER+SUHNER. All due care and attention must be exercised when performing the installation of these products. For advice concerning the
HUBER+SUHNER AG
Fiber Optics
MASTERLINE Extreme Hybrid
DOC-0000661652 Rev A
February 06, 2015
Page 1 of 11
general handling of these products please contact HUBER+SUHNER.
