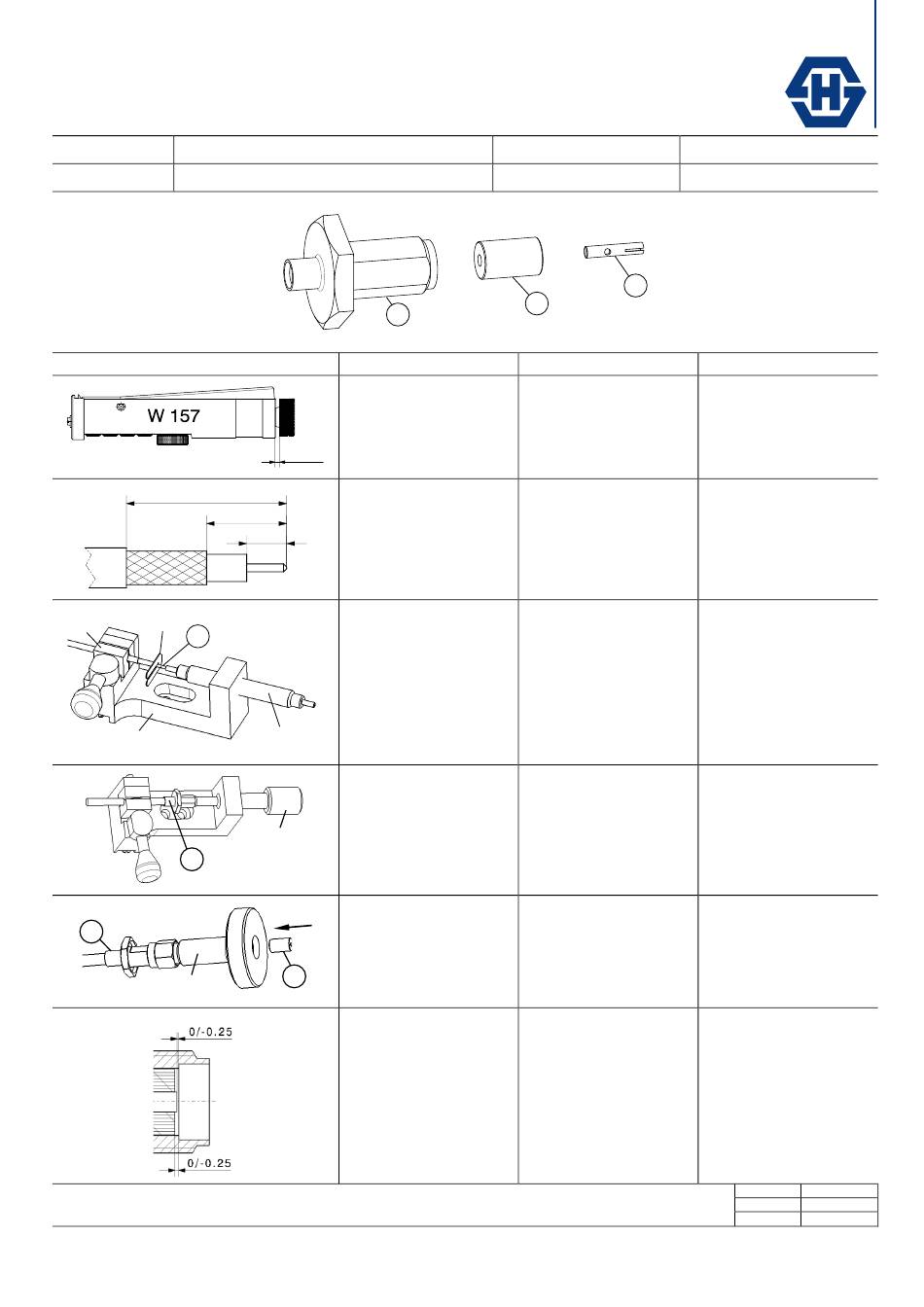

HUBER+SUHNER SMA Series Assembly Instruction

Assembly instruction Series SMA
Connector type: 24 SMA-50-2-113
SR_86_CT, SUCOFORM_86_CT
Suitable cables:
Parts list connector:
Assembly steps:
15*
W 60 W 56
A
W 58 or W 442
C
C
W 53
The cable assembly of R.F. connectors can only be done by well trained assembly stuff and suitable assembly equipment.
Huber+Suhner's skilled stuff and specialised equipment are available to carry out complete R.F. lead-assembly on your behalf.
We mount your connectors on cables at economic prices! Please contact our representative for further details of this service.
C
Process
The tool must be set for a
stripping dimension of 6.3mm.
6.3
Prepare cable according to
diagram.
6.5
Form tip of inner conductor to
2.5
a 90° cone.
Dimension 15mm applies to
cable with jacket.
Push contact A onto contact
holder W 54. Fix cable in
soldering fixture W 58.
Place soldering gauge W 56
on centre contact.
Flow small amount of solder
into bore of contact A. Push
contact holder W 54 against
W 54
soldering gauge W 56 and
solder.
Slide body C over cable.
Push body C completely
W 368
against locator tool W 368.
Solder body C to cable.
Screw dielectric insert tool
W 53 onto connector.
Place insulator B in rear
opening of insert tool and
B
press fully through insert tool
into connector.
Check interface dimension.
0000764770
Inner conductor contact:
Outer conductor contact:
A
B
Feature / Check
Cut cable end perpendicular
to cable axis.
Cut cable end perpendicular
to cable axis.
Do not damage centre
contact, dielectric and braid.
Clean contact A and cable
dielectric.
Remove excessive solder.
Avoid excessive heat.
Promptly swap soldered area
with alcohol to cool joint and
remove any residual flux.
Press in insulator until stop.
Distance end of pin and
insulator to reference plane.
Deutscher Text: siehe Rückseite
Soldered
Soldered
Tools required
Stripping tool W 157
For detailed description see
instruction
DOC-0000199604
Blades (74 Z 0-0-68)
Tip trimmer tool W 164
Inserts W 60
Soldering gauge W 56
Contact holder W 54
Soldering fixture W 58
Solder
Locator tool W 368
Solder
Activated rosin flux
Alcohol and brush
Dielectric insert tool W 53
Version D
Datum 02.08.2021
Erstellt 4186 / MAP
