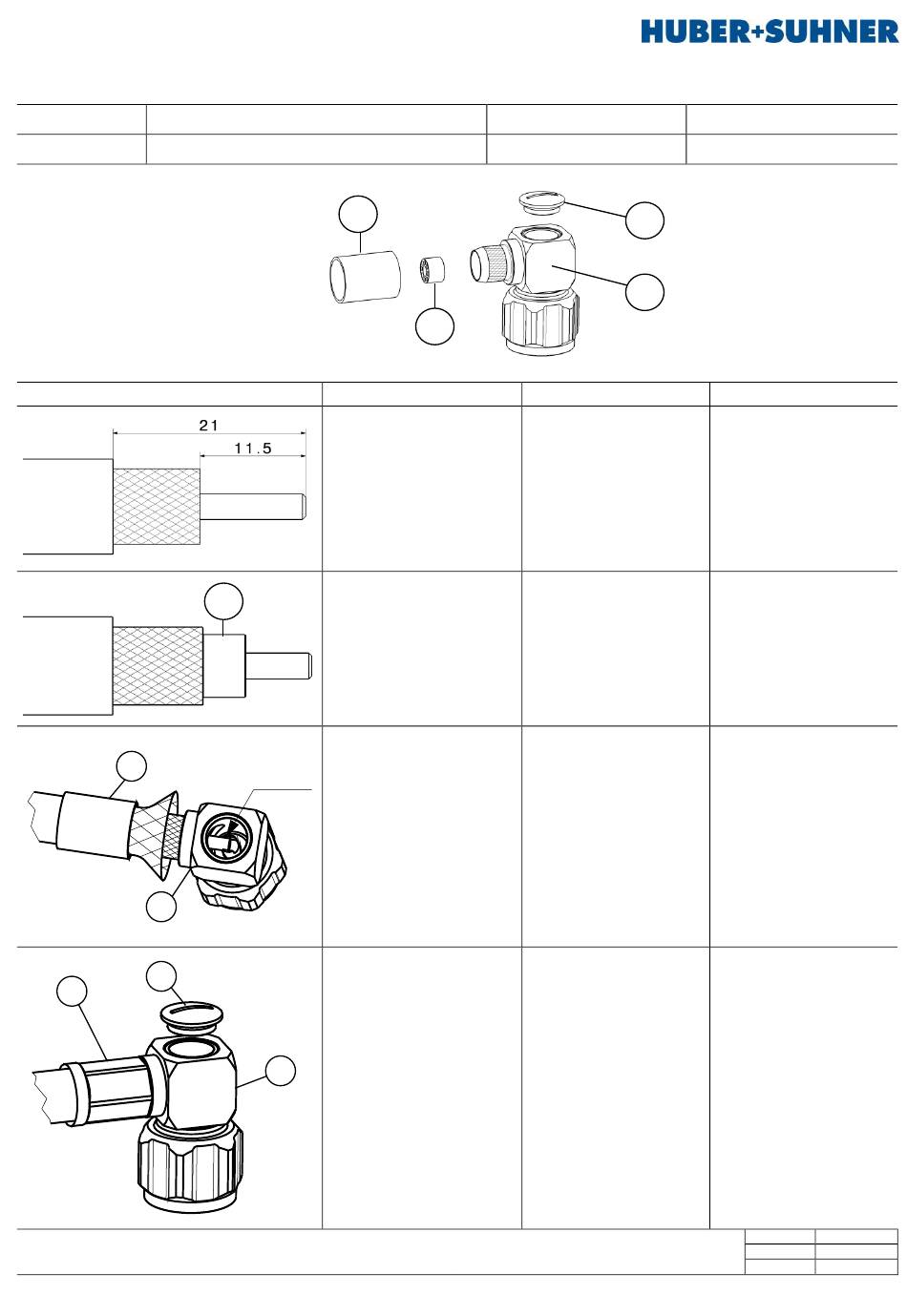

Assembly instruction
16_N-50-7-77
Connector type:
SPUMA_400, LMR-400, S_07162_B
Suitable cables:
Parts list connector:
Assembly steps:
A
C
D
A
The cable assembly of R.F. connectors can only be done by well trained assembly stuff and suitable assembly equipment.
Huber+Suhner's skilled stuff and specialised equipment are available to carry out complete R.F. lead-assembly on your behalf.
We mount your connectors on cables at economic prices! Please contact our representative for further details of this service.
A
Process
Prepare cable according
to the diagram.
Foil same length as
dielectric and braid.
Deburr end of inner
conductor.
B
Slide insulator B onto
inner conductor of cable.
Slide ferrule A onto
cable. Splay out braid
X
and insert cable in
connector body C
Slide ferrule A over braid
and crimp. Solder inner
conductor to cable at X.
C
Screw cap D into body C.
Series N
Inner conductor contact:
Outer conductor contact:
B
Feature / Check
Do not damage braid,
dielectric, foil and inner
conductor of cable.
Braid lies above the
crimp neck, and the foil
enters the crimp neck.
Crimp as close to
connector body C as
possible.
Avoid excessive heat.
0000885208
soldered
Crimped (Cavity D)
D
C
Tools required
Suitable stripping tool
File
Crimp tool : Cavity D
For large crimp tool and
table press use insert
76 _ Z-0-7-14.
Suitable solder tool
Screw driver
Revision
Date
Initiator
Deutscher Text: siehe Rückseite
A
11.05.2020
4186/MAP
