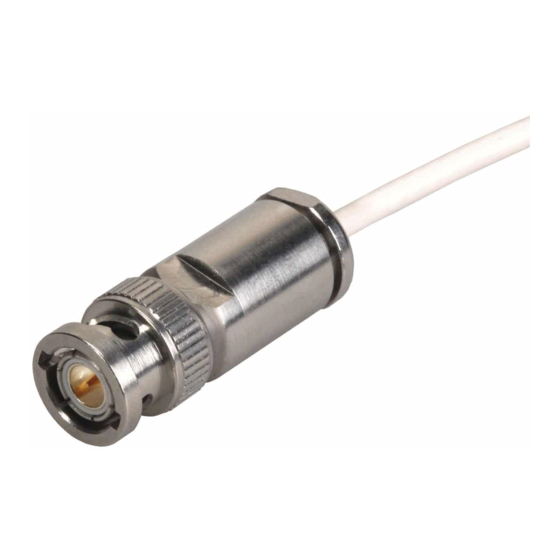

HUBER+SUHNER C Series Assembly Instruction

Assembly instruction
Connector type: (e.g.)
11_N-50-7-43 11_BNC-50-7-7
21_N-50-7-13 11_BNC-50-7-8
24_N-50-7-14 11_TNC-50-7-5
25_N-50-7-13
11_N-50-7-44 25_N-50-7-14
11_N-50-7-78 11_C-50-7-15
21_N-50-7-14 11_BNC-50-7-6
24_N-50-7-15 11_TNC-50-7-10

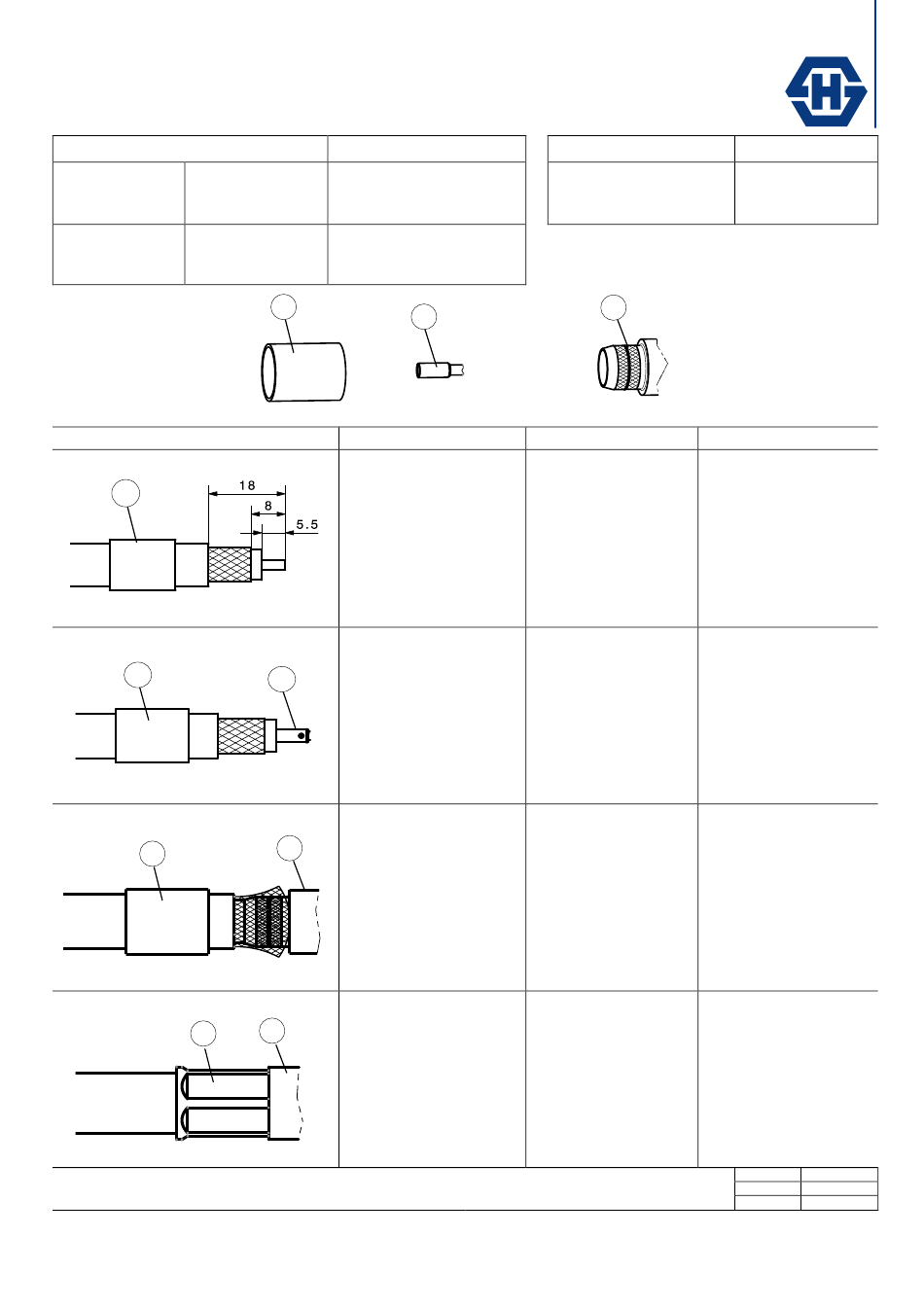

Assembly steps:
A
A
A
A
The cable assembly of R.F. connectors can only be done by well trained assembly staff and suitable assembly equipment.
Huber+Suhner's skilled staff and specialised equipment are available to carry out complete R.F. lead-assembly on your behalf.
We mount your connectors on cables at economic prices! Please contact our representative for further details of this service.
Old Assembly instruction No. :
Series
N,C,BNC,TNC
Suitable cables:
RG_213_U
RG_214_U
A
B
Process
Push ferrule A over the
cable.
Prepare the cable
according to the diagram.
B
Push contact B over
inner conductor of cable
up to cable dielectric and
crimp.
C
Splay out braid and
insert cable in
connector body C.
C
Slide ferrule A over braid
and crimp.
03061
0000179092
Inner conductor contact:
Outer conductor contact:
C
Feature / Check Tools required
Do not damage centre Blade
contact, dielectric and
braid. Scissor
Crimp tool :
Cavity 3
Contact B flush to
dielectric. For large crimp tool and
table press use insert
76_Z-0-7-1
Ensure that braid lies
above crimp neck.
Crimp tool :
Cavity D (purple)
Crimp as close to
connector body C as
For large crimp tool and
possible.
table press use insert
76_Z-0-7-1
Deutscher Text: siehe Rückseite
Crimped
Crimped
Revision B
Date 01.04.15
Initiator 4779/JPE
